Description

Price

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

13169

PLATE

13169-1659

$8.93

14001

SET-CRANKCASE

14001-1095

Unavailable

14013

RING-POSITION

14013-004

$10.19

14070A

BODY-BREATHER

14070-1081

$89.34

32102

PIPE

32102-1017

$85.66

32102A

PIPE

32102-1018

$17.05

51044

TUBE-ASSY

51044-1074

$64.06

92002

BOLT,OIL SWITCH

92002-1427

$23.23

92002A

BOLT,6X10

92002-1449

$4.11

92002B

BOLT,SOCKET,6X14

92002-1592

$4.31

92002C

BOLT,BANJO,8X20

92002-1705

$8.94

92002D

BOLT,OIL,L=23

92002-1907

$5.48

92043

PIN,9.2X12X14

92043-1265

$8.19

92043A

PIN,3.5X6X16

92043-1309

$5.52

92050

SEAL-OIL,SC325210

92050-024

$8.17

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,OD=18

92055-048

$4.80

92055A

RING-O,20X2

92055-1146

$8.58

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,MAIN GALLERY,18X9,BLACK

92066-1096

$11.50

92066A

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92190

TUBE

92190-1489

$5.56

670

O RING,9MM

670D1509

$4.69

670A

O RING,10MM

670D2010

$1.94

670B

O RING,12MM

670D2012

$2.77

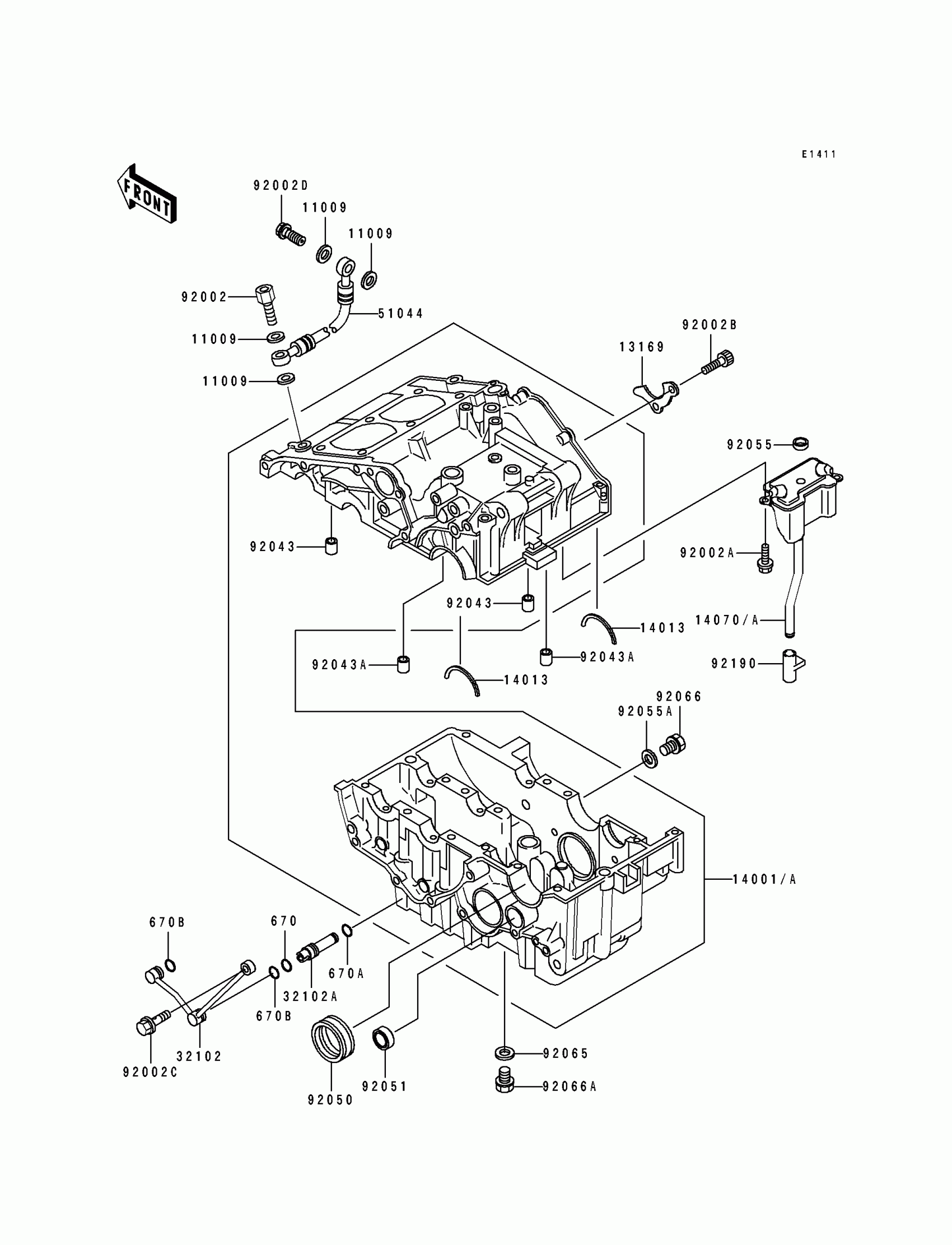

Kawasaki Eliminator 250 Crankcase Diagram

GASKET,10X14.5X1.5

PLATE

SET-CRANKCASE

RING-POSITION

BODY-BREATHER

PIPE

PIPE

TUBE-ASSY

BOLT,OIL SWITCH

BOLT,6X10

BOLT,SOCKET,6X14

BOLT,BANJO,8X20

BOLT,OIL,L=23

PIN,9.2X12X14

PIN,3.5X6X16

SEAL-OIL,SC325210

SEAL-OIL,TB13225.5

RING-O,OD=18

RING-O,20X2

GASKET,12X22X2

PLUG,MAIN GALLERY,18X9,BLACK

PLUG,OIL DRAIN,12X15

TUBE

O RING,9MM

O RING,10MM

O RING,12MM
