Description

Price

11046

BRACKET,COWLING,LWR

11046-1352

Unavailable

11046A

BRACKET,COWLING,LAMP STAY,LH

11046-1353

Unavailable

11046B

BRACKET,COWLING,LAMP STAY,RH

11046-1354

Unavailable

11046C

BRACKET,COWLING,UPP,LH

11046-1406

Unavailable

11046D

BRACKET,COWLING,UPP,RH

11046-1407

Unavailable

14024

COVER,TRIM END

14024-1730

$4.74

39145

TRIM-SEAL,HEAD LAMP

39145-1090

$45.02

39154

WINDSHIELD

39154-1099

$153.28

53044

TRIM

53044-1211

$17.95

55028

COWLING,LWR,C.C.RED

55028-1220-L1

$432.93

55048A

COWLING.,UPP,C.C.RED

55048-5472-L1

$620.92

92001

BOLT,6X14,BLACK

92001-1847

$3.96

92009

SCREW,6X14

92009-1288

$3.92

92009A

SCREW,5X14

92009-1653

$3.96

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92075

DAMPER,6X16X7

92075-1011

$7.33

130

BOLT-FLANGED,6X14

130C0614

$2.33

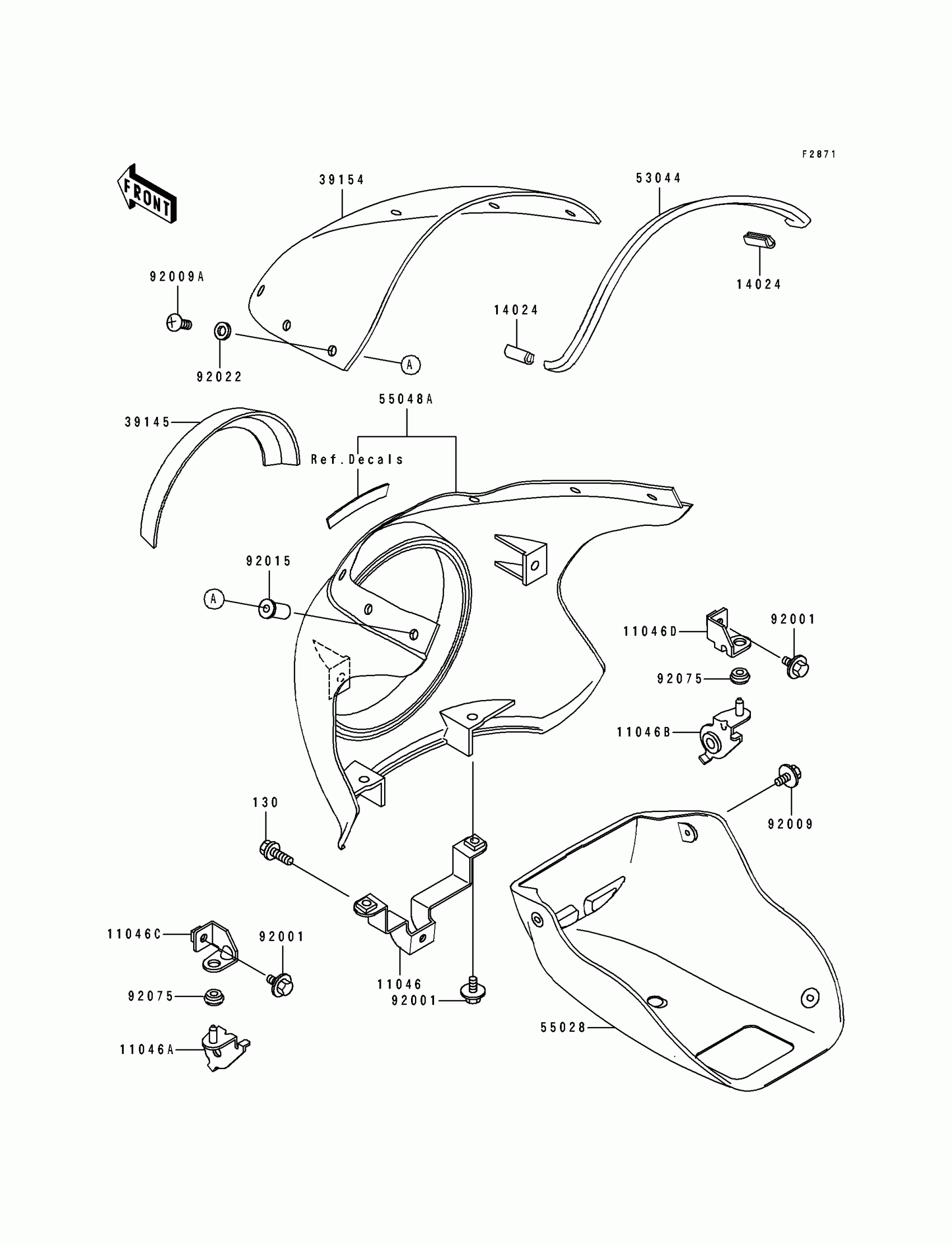

Kawasaki Eliminator 250 Cowling Diagram

BRACKET,COWLING,LWR

BRACKET,COWLING,LAMP STAY,LH

BRACKET,COWLING,LAMP STAY,RH

BRACKET,COWLING,UPP,LH

BRACKET,COWLING,UPP,RH

COVER,TRIM END

TRIM-SEAL,HEAD LAMP

WINDSHIELD

TRIM

COWLING,LWR,C.C.RED

COWLING.,UPP,C.C.RED

BOLT,6X14,BLACK

SCREW,6X14

SCREW,5X14

NUT,WELL,5MM

WASHER,NYLON,5.3X11.5X1.5

DAMPER,6X16X7

BOLT-FLANGED,6X14
