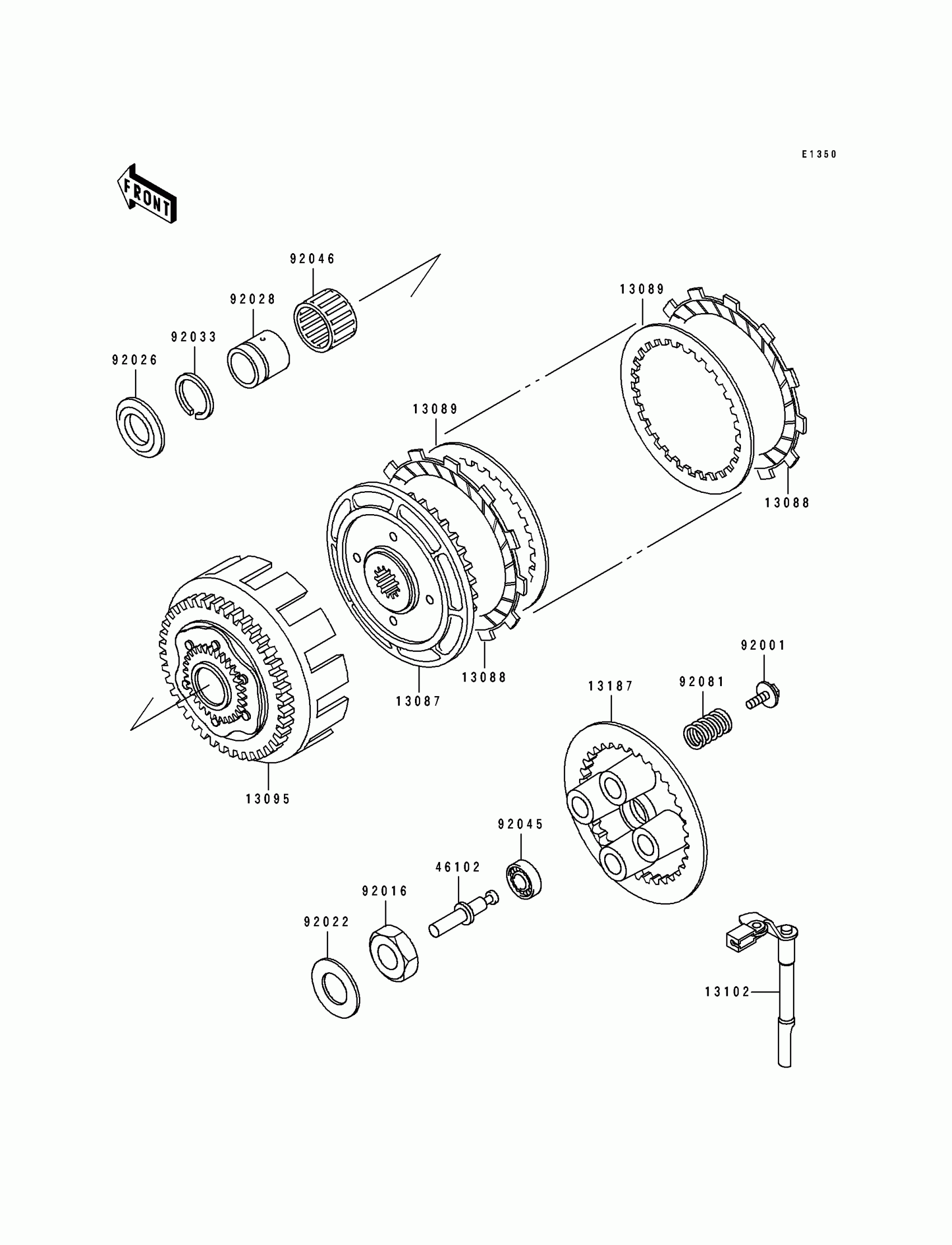

Kawasaki Eliminator 250 Clutch Diagram

Description

Price

13087

HUB-CLUTCH

13087-1076

$121.16

13088

PLATE-FRICTION

13088-1013

$15.76

13089

PLATE-CLUTCH,T=2.0

13089-026

$12.80

13095

HOUSING-COMP-CLUTCH

13095-1174

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1093

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1057

$80.77

46102

ROD,CLUTCH

46102-1030

$29.92

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92016

NUT,20MM

92016-028

$9.91

92022

WASHER,20.3X36X2.3

92022-1116

$8.58

92026

SPACER,THRUST,T=5.5

92026-116

$17.60

92028

BUSHING,CLUTCH

92028-1414

$41.53

92033

RING-SNAP

92033-1212

$8.30

92045

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92046

BEARING-NEEDLE,KTV323723

92046-028

$21.24

92081

SPRING,CLUTCH

92081-139

$8.51
