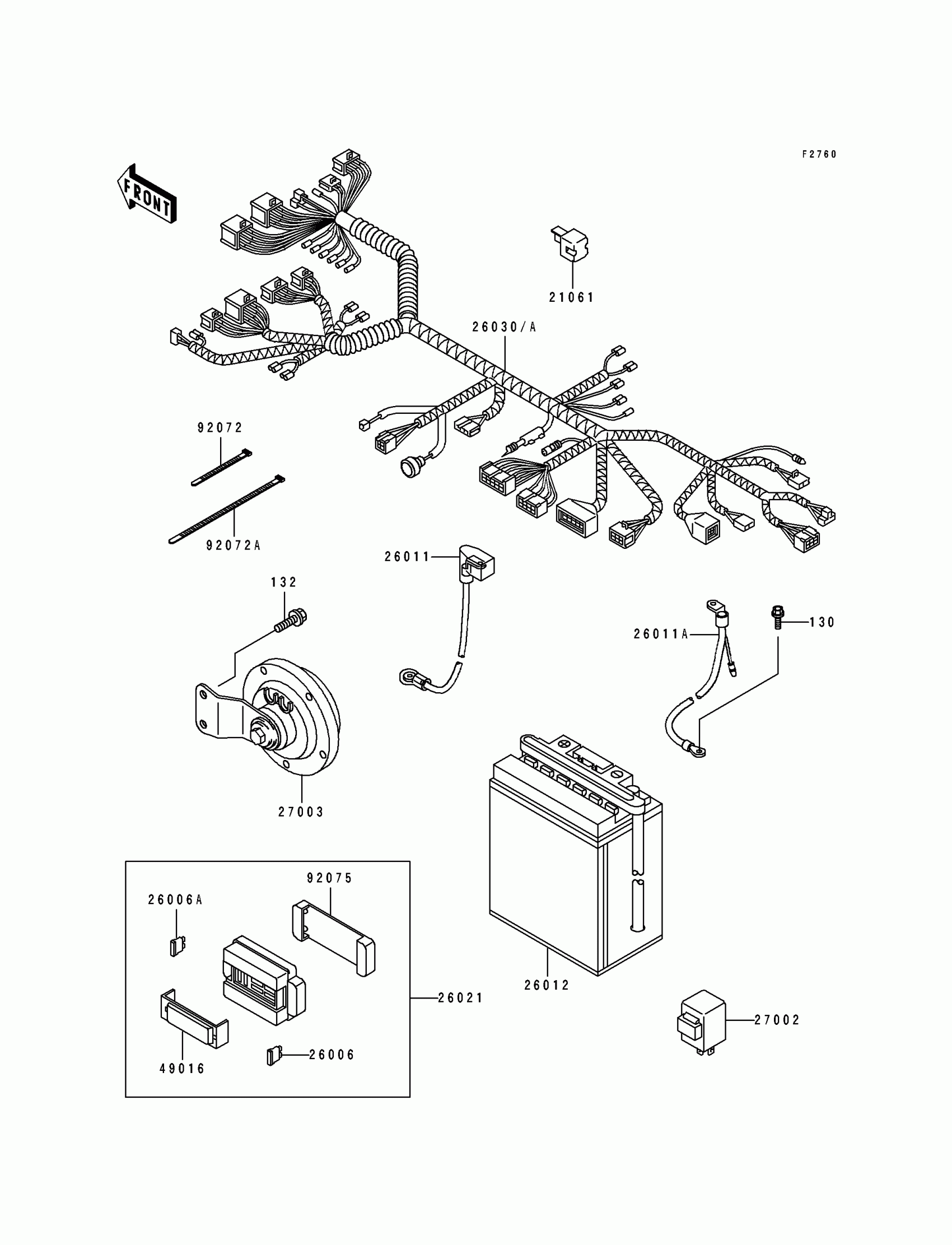

Kawasaki Eliminator 250 Chassis Electrical Equipment Diagram

Description

Price

21061

RECTIFIER

21061-1003

$29.60

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-1401

$32.11

26011A

WIRE-LEAD,BATTERY(-)

26011-1402

$28.76

26012

BATTERY,12V 8AH,FB9L-A2K(K2)

26012-1205

$70.69

26021

JUNCTION BOX

26021-1077

$216.48

26030A

HARNESS,MAIN

26030-1234

Unavailable

27002

RELAY-ASSY,TURN SIGNAL

27002-1053

$58.83

27003

HORN

27003-1275

Unavailable

49016

COVER-SEAL,FUSE

49016-1125

Unavailable

92072

BAND,L=202

92072-1195

$1.56

92072A

BAND,L=365

92072-1197

$7.84

92075

DAMPER,JUNCTION BOX

92075-1688

$14.36

130

BOLT

130B0612

$0.67

132

BOLT-FLANGED-SMALL,6X10

132J0610

$2.33
