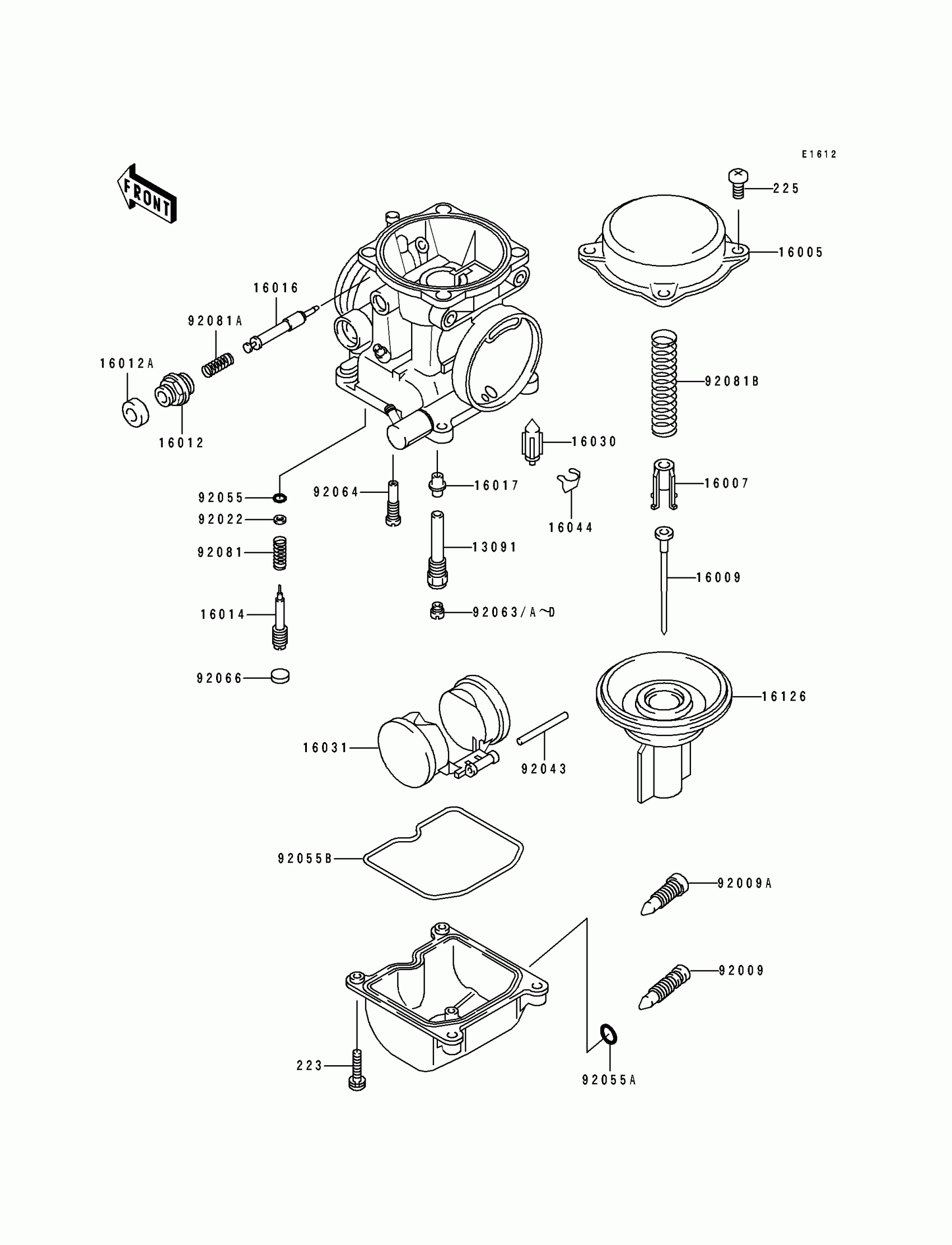

Kawasaki Eliminator 250 Carburetor Parts Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1533

Unavailable

16005

TOP-CHAMBER,MIXING

16005-1056

$68.90

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$26.23

16009

NEEDLE-JET,N53X

16009-1374

$36.44

16012

CAP-STARTER PLUNGER

16012-1051

$10.88

16012A

CAP-STARTER PLUNGER

16012-1052

$15.04

16014

SCREW-PILOT AIR

16014-1054

$24.57

16016

PLUNGER,STARTER

16016-1061

$43.41

16017

JET-NEEDLE

16017-1326

$49.12

16030

VALVE-FLOAT

16030-1007

$47.99

16031

FLOAT

16031-1056

$53.59

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16126

VALVE,VACUUM

16126-1159

$213.79

92009

SCREW,DRAIN,M6X1.0

92009-1095

$14.92

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92022

WASHER,PLAIN

92022-1003

$4.31

92043

PIN,FLOAT

92043-1207

$11.14

92055

RING-O,PILOT ADJUST

92055-1002

$4.31

92055A

RING-O

92055-1053

$4.69

92055B

RING-O,FLOAT CHAMBER

92055-1222

$17.44

92063

JET-MAIN,#95

92063-1001

$15.04

92063A

JET-MAIN,#90

92063-1003

$14.79

92063B

JET-MAIN,#92

92063-1004

$15.04

92063C

JET-MAIN,#98

92063-1005

$15.04

92063D

JET-MAIN,#100

92063-1008

$15.04

92064

JET-PILOT,#35

92064-1035

$19.04

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$5.46

92081A

SPRING,STARTER PLUNGER

92081-1761

$9.36

92081B

SPRING,VACUUM VALVE

92081-1775

$25.81

223

SCREW-PAN-WS-CROS,4X16

223C0416

$4.12

225

SCREW-PAN-WSP-CROS,4X18

225C0418

$4.01
