Description

Price

11048

BRACKET,IGNITER

11048-1328

Unavailable

14024

COVER,SIDE,LWR,LH,BLACK

14024-1597-6Z

$80.69

14024A

COVER,SIDE,LWR,RH,BLACK

14024-1598-6Z

$84.50

32109

GRIP-FRAME,LWR,LH

32109-1166

$72.72

32109A

GRIP-FRAME,LWR,RH

32109-1167

$72.72

32109B

GRIP-FRAME,UPP

32109-1218

$100.13

35011

STAY,MUFFLER,LH

35011-1371

$38.54

35011A

STAY,MUFFLER,RH

35011-1372

$43.31

92002

BOLT,FLANGED,8X42.5

92002-1974

Unavailable

92009

SCREW,6X14

92009-1288

$3.92

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92059

TUBE,BATTERY VENT HOSE

92059-1715

$4.31

92072

BAND,BATTERY

92072-1224

$26.20

92072A

BAND,TOOL

92072-1228

$9.64

92075

DAMPER

92075-1967

$6.16

92075A

DAMPER

92075-1986

$4.73

130

BOLT-FLANGED,6X10

130C0610

$3.84

132

BOLT-FLANGED-SMALL,6X10

132E0610

$4.69

132A

BOLT-FLANGED-SMALL,8X35

132E0835

$5.52

220

SCREW-PAN-CROS

220C0520

$1.97

700

TUBE-PVC,5X600

700Q05600

Unavailable

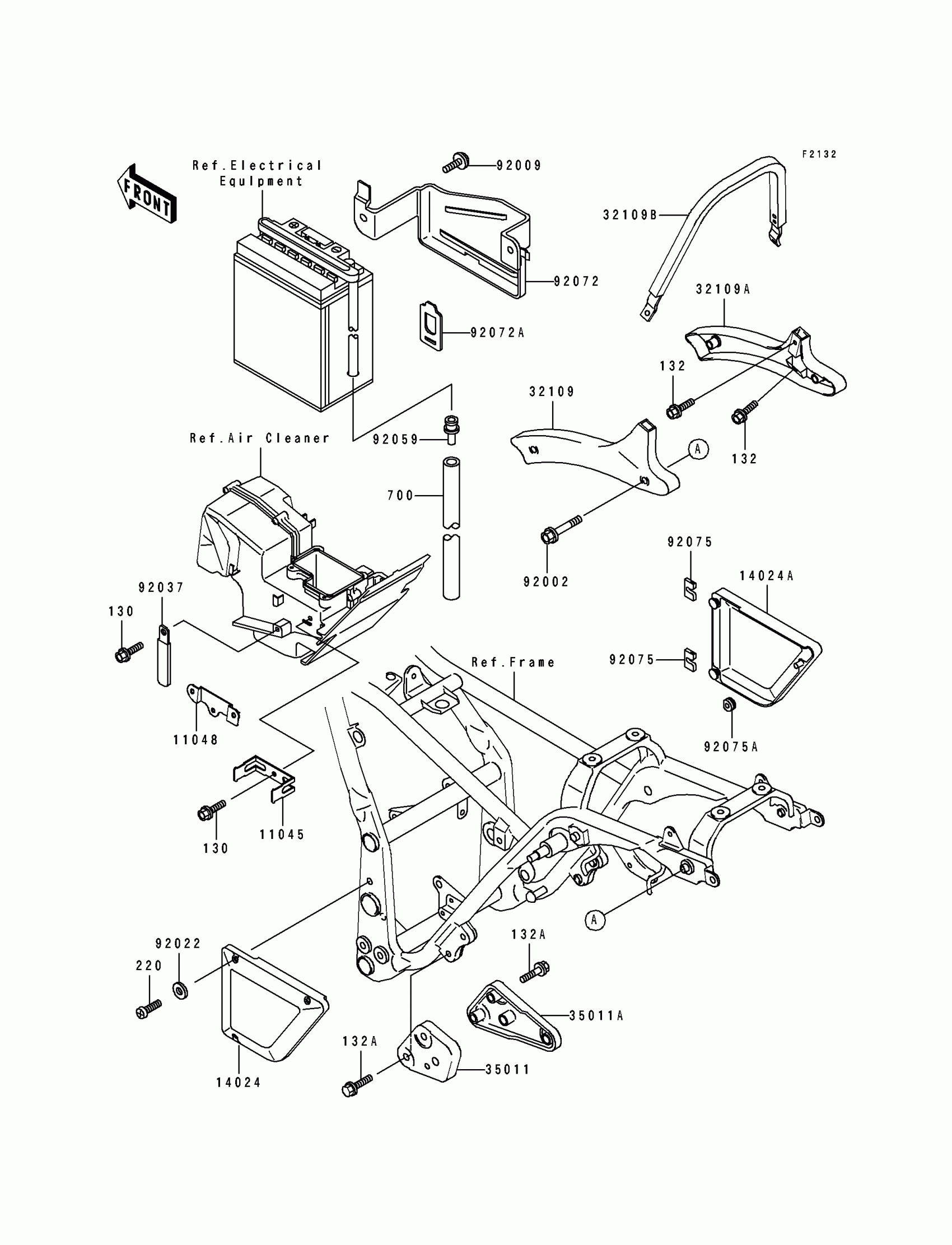

Kawasaki Eliminator 250 Battery Case Diagram

BRACKET,IGNITER

COVER,SIDE,LWR,LH,BLACK

COVER,SIDE,LWR,RH,BLACK

GRIP-FRAME,LWR,LH

GRIP-FRAME,LWR,RH

GRIP-FRAME,UPP

STAY,MUFFLER,LH

STAY,MUFFLER,RH

BOLT,FLANGED,8X42.5

SCREW,6X14

WASHER,NYLON,5.3X11.5X1.5

CLAMP,WIRING HARNESS,L=60

TUBE,BATTERY VENT HOSE

BAND,BATTERY

BAND,TOOL

DAMPER

DAMPER

BOLT-FLANGED,6X10

BOLT-FLANGED-SMALL,6X10

BOLT-FLANGED-SMALL,8X35

SCREW-PAN-CROS

TUBE-PVC,5X600
