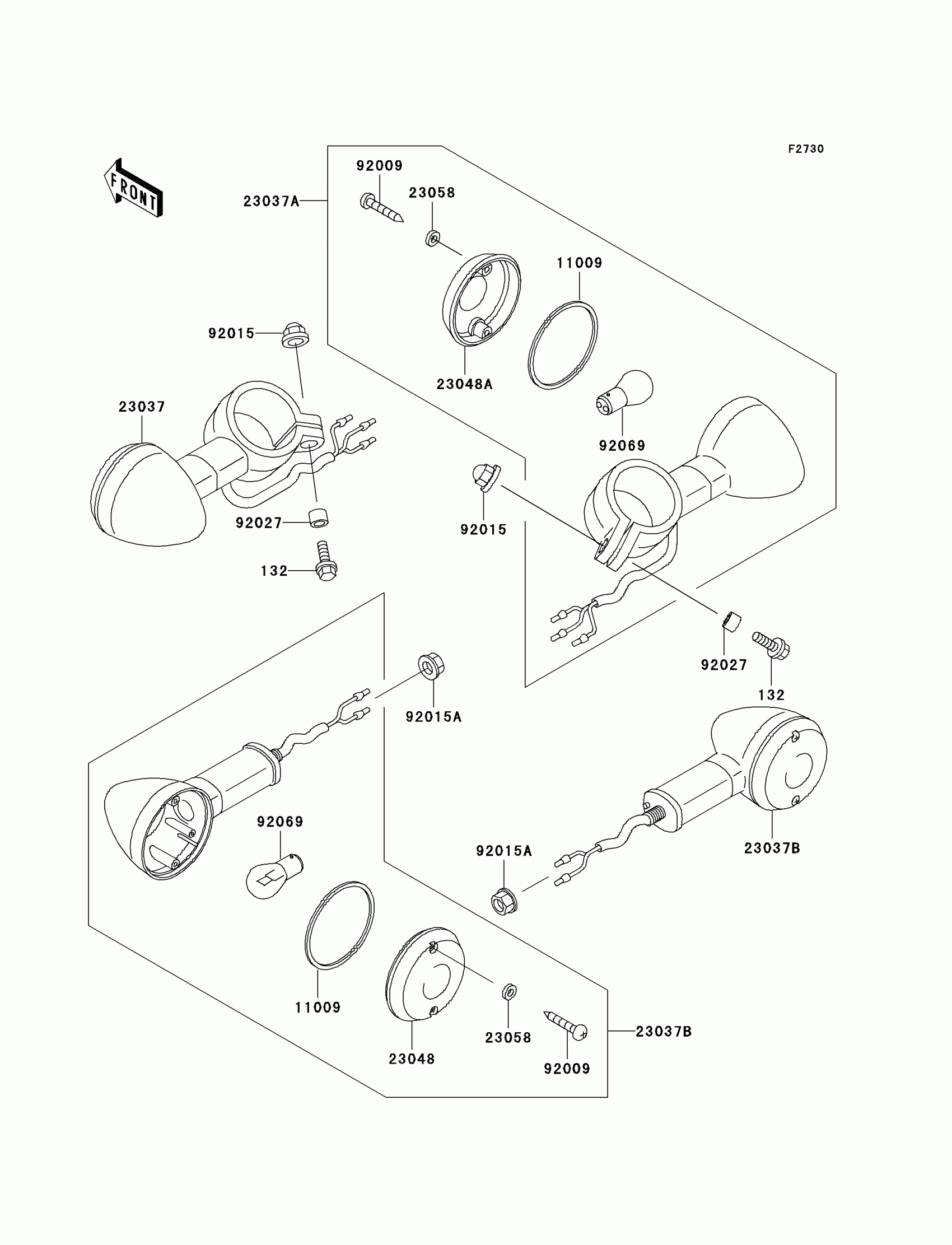

Kawasaki Eliminator 125 Turn Signals Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132E0620

$4.44

11009

GASKET,SIGNAL LAMP

11009-1413

$4.96

23037F

LAMP-ASSY-SIGNAL,FR,LH

23037-1436

$66.34

23037G

LAMP-ASSY-SIGNAL,FR,RH

23037-1437

$66.34

23037H

LAMP-ASSY-SIGNAL,RR

23037-1438

$66.34

23048

LENS-SIGNAL LAMP,RR

23048-1065

$9.53

23048A

LENS-SIGNAL LAMP,FR

23048-1066

$9.53

23058

WASHER,PLAIN,4MM

23058-002

$2.49

92009

SCREW,TAPPING,4X25

92009-1637

$3.92

92015

NUT,CAP,6MM

92015-1385

$4.31

92015A

NUT,FLANGED,10MM

92015-1428

$5.00

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069A

Not Available As Spare Part - Friction Washer

Unavailable
