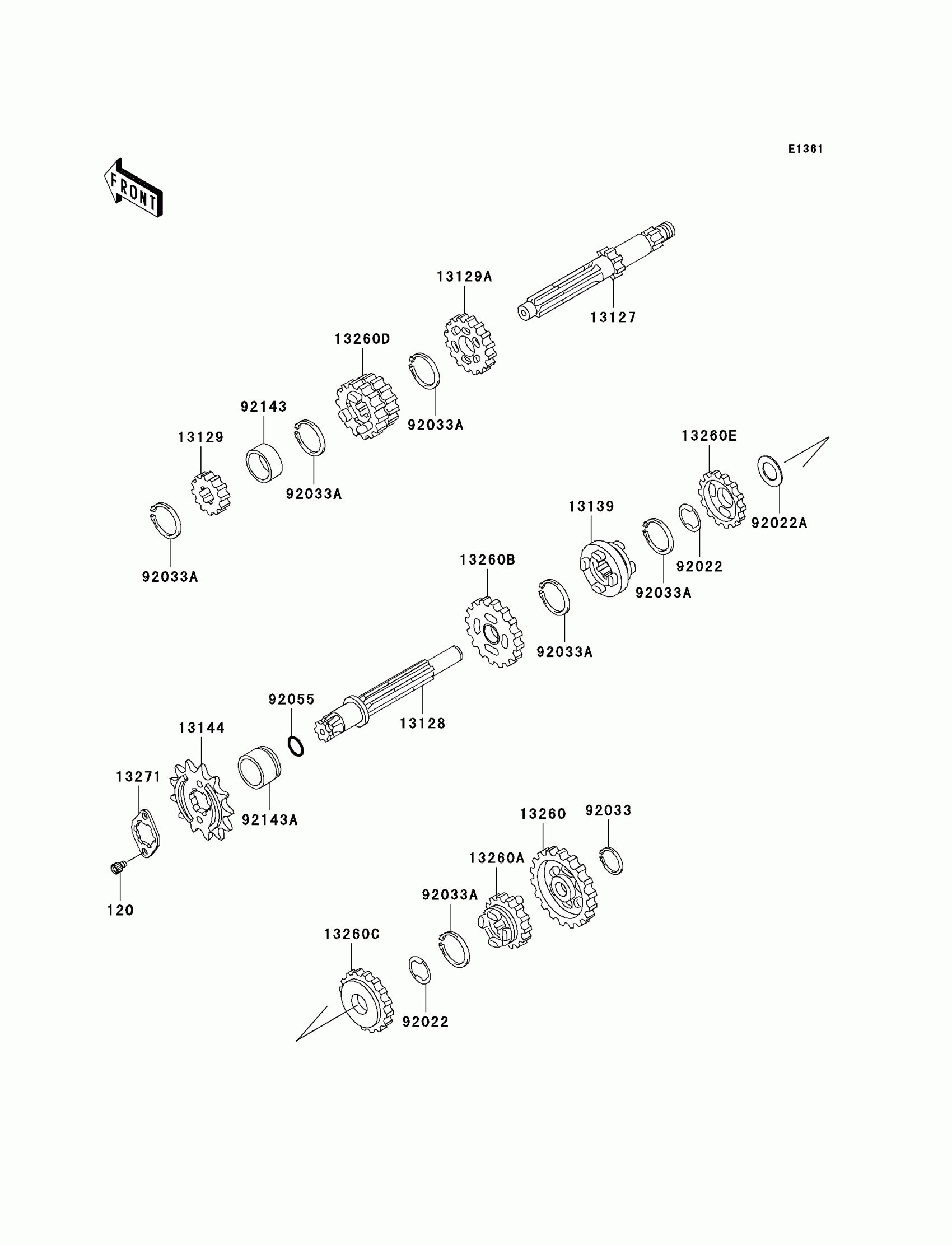

Kawasaki Eliminator 125 Transmission Diagram

#

Description
Price

120

BOLT-SOCKET,6X8

120Q0608

$3.61

13127

SHAFT-TRANSMISSION INPUT,10T

13127-1276

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1239

Unavailable

13129

GEAR,INPUT 2ND,17T

13129-1555

$57.99

13129A

GEAR,INPUT 5TH,21T

13129-1621

Unavailable

13139

SHIFTER

13139-1094

$129.97

13144

SPROCKET-OUTPUT,15T

13144-1310

$40.61

13260

GEAR,OUTPUT LOW,27T

13260-1019

$124.14

13260A

GEAR,OUTPUT 5TH,20T

13260-1693

$85.12

13260B

GEAR,OUTPUT 2ND,29T

13260-1704

$30.35

13260C

GEAR,OUTPUT 3RD,26T

13260-1705

$57.46

13260D

GEAR,INPUT 3RD&4TH,20T/22T

13260-1739

$91.97

13260E

GEAR,OUTPUT 4TH,24T

13260-1740

$49.60

13271

PLATE,SPROCKET

13271-1052

$4.76

92022

WASHER,TOOTHED,20.3X24X0.5

92022-1033

$6.78

92022A

WASHER,20.5X25.5X0.5

92022-252

$6.22

92033

RING-SNAP

92033-1260

$6.41

92033A

RING-SNAP

92033-1313

$1.44

92055

RING-O,17.5X1.5

92055-022

$6.22

92143

COLLAR,20X24.6X10.5

92143-1868

$11.57

92143A

COLLAR,SPROCKET

92143-1869

$17.56
