2005 Kawasaki Eliminator 125 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2005 Kawasaki Eliminator 125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

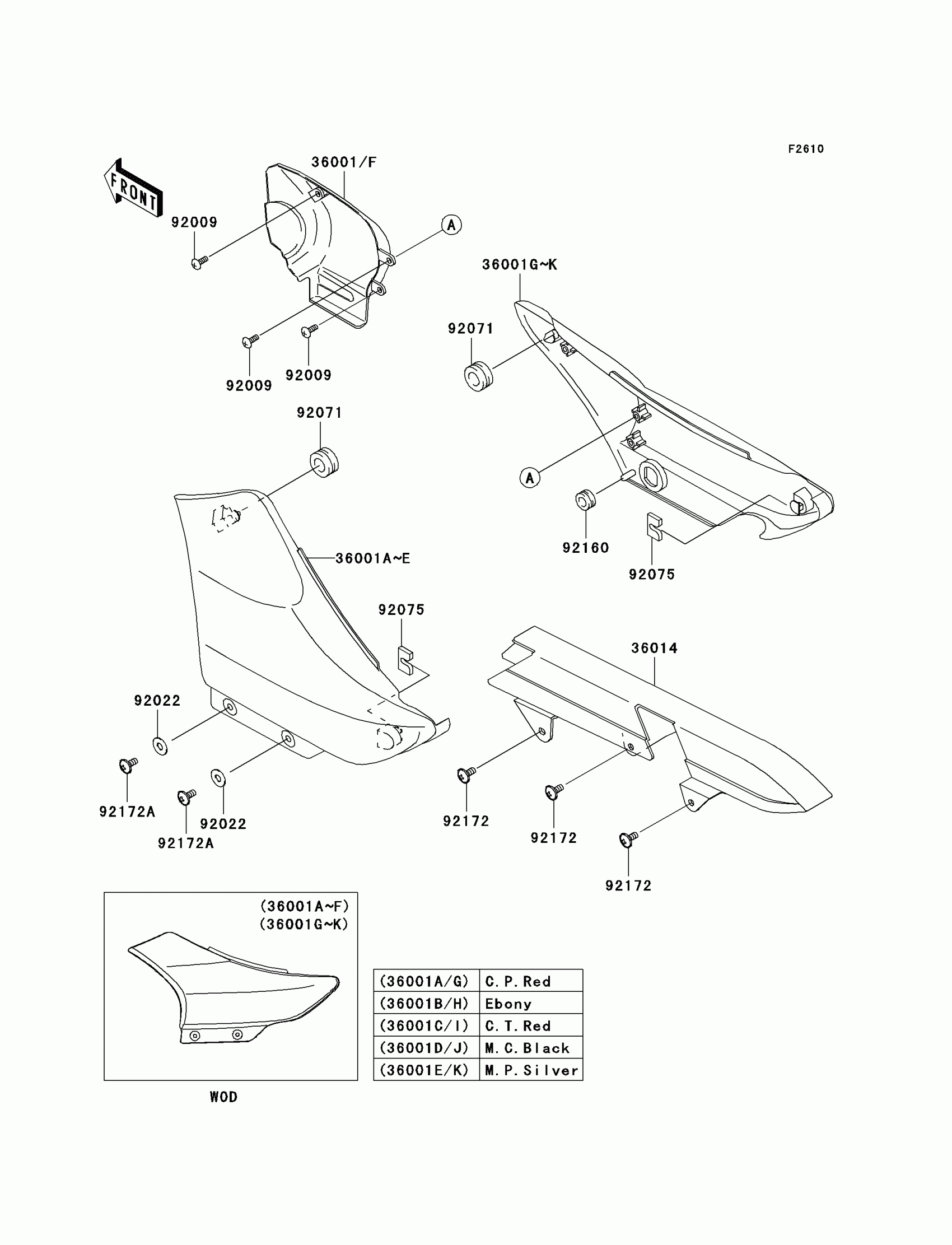

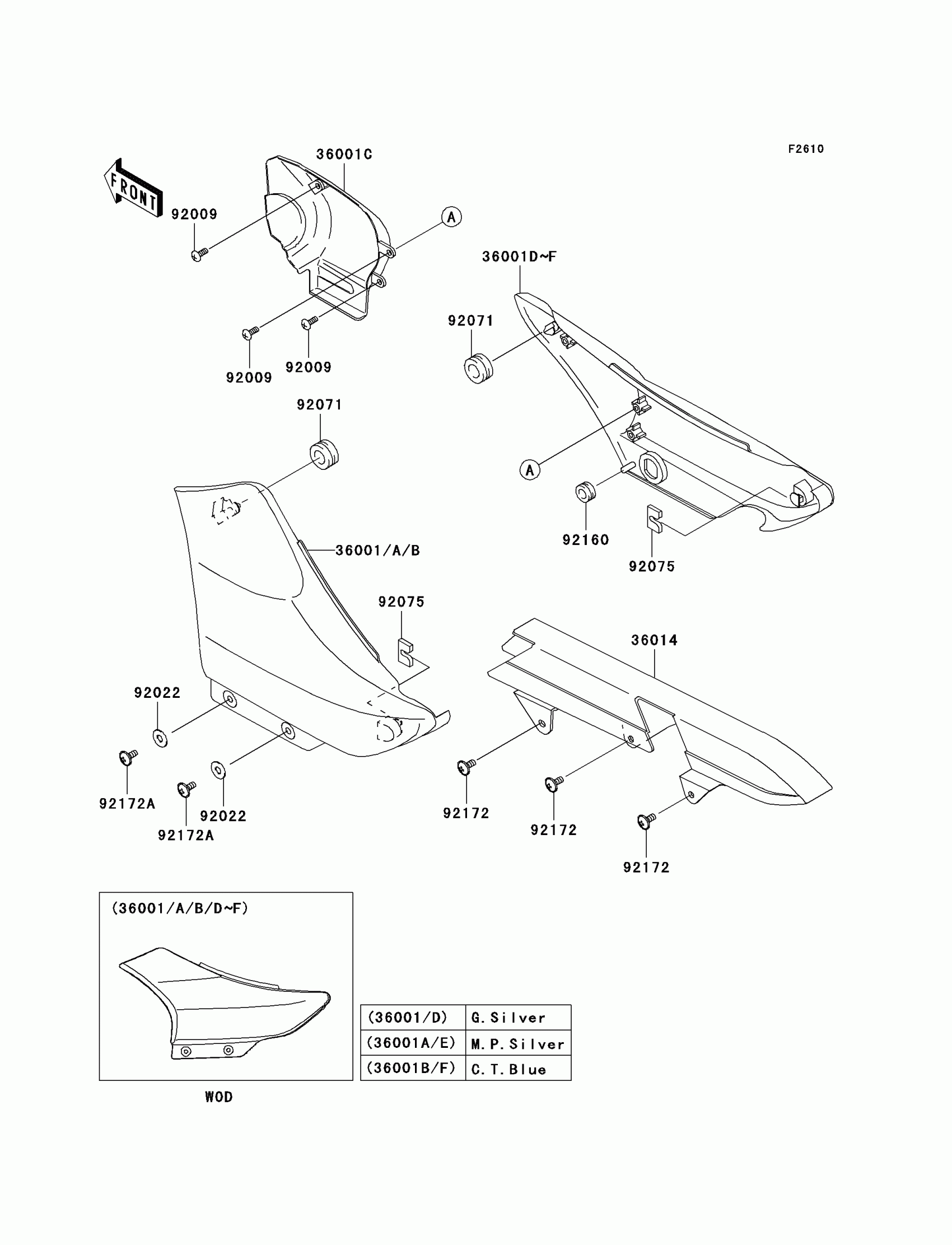

2005 Kawasaki Eliminator 125 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001D

COVER-SIDE,LH,M.C.BLACK

36001-1610-167

1
Out of stock

36001F

COVER-SIDE,RH,FR

36001-1662

1

$2.75

In stock

36001J

COVER-SIDE,RH,RR,M.C.BLACK

36001-1663-167

1
Out of stock

36014

CASE-CHAIN

36014-1228

1

$4.24

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1654

1
Out of stock

92071

GROMMET

92071-1043

1
Out of stock

92075

DAMPER

92075-1967

1
Out of stock

92160

DAMPER

92160-1891

1
Out of stock

92172

SCREW,6X14

92172-0004

1
Out of stock

92172A

SCREW,6X14

92172-1069

1
Out of stock
