2005 Kawasaki Eliminator 125 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2005 Kawasaki Eliminator 125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

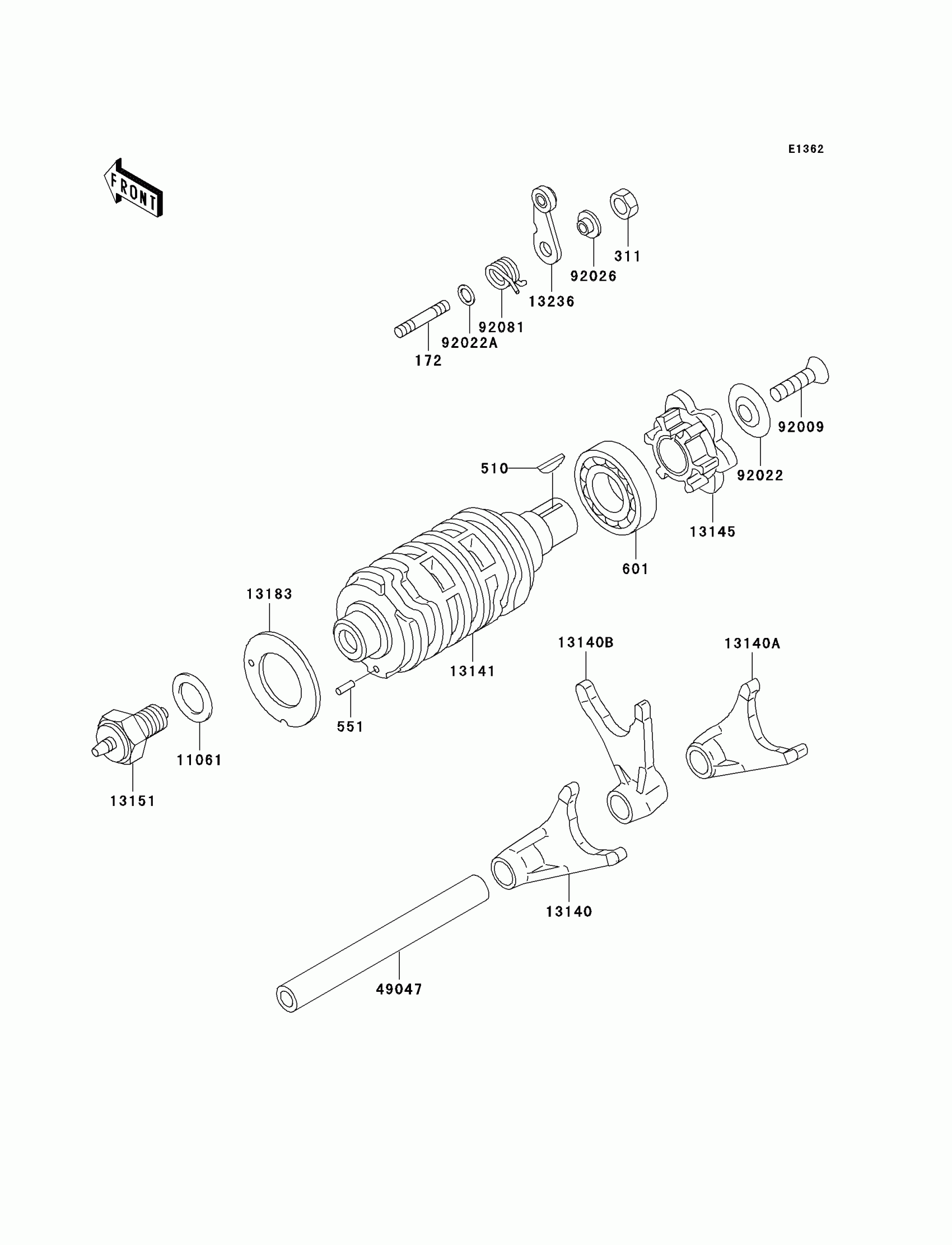

2005 Kawasaki Eliminator 125 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

172

BOLT-STUD,6X12

172G0612

1
Out of stock

311

NUT-HEX,6MM

311G0600

1
Out of stock

510

KEY-WOODRUFF

510A3200

1
Out of stock

551

PIN-DOWEL,3X6

551A0306

1
Out of stock

601

BEARING-BALL

601B6003

1
Out of stock

13140

FORK-SHIFT,2ND-4TH

13140-1247

1
Out of stock

13140A

FORK-SHIFT,LOW-3RD

13140-1264

1
Out of stock

13140B

FORK-SHIFT,5TH-TOP

13140-1265

1
Out of stock

13141

DRUM-CHANGE

13141-1210

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1084

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1080

1
Out of stock

13183

PLATE,CHANGE

13183-1066

1
Out of stock

13236

LEVER-COMP,DRUM POSITION

13236-1192

1
Out of stock

49047

ROD-SHIFT

49047-1068

1
Out of stock

92009

SCREW,6X16

92009-1360

1
Out of stock

92022

WASHER

92022-1792

1
Out of stock

92022A

WASHER,6X12.8X1.2

92022-1827

1
Out of stock

92026

SPACER

92026-1217

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92081

SPRING,POSITION LEVER

92081-1993

1
Out of stock
