Description

Price

112

BOLT-UPSET,6X22

112CA0622

$2.26

550

PIN-COTTER,4X35

550S4035

$2.90

601

BEARING-BALL,#6004UUC3

601B6004UU

$28.82

601A

BEARING-BALL

601B6202UU

$21.98

601B

BEARING-BALL,#6302UU

601B6302UU

$25.14

41034

DRUM-ASSY,REAR BRAKE

41034-1318

$245.86

41035

PANEL-ASSY-BRAKE,RR

41035-0007

$147.59

41048

SHOE-BRAKE

41048-1076

$38.07

41050

CAM-BRAKE

41050-0004

$33.03

41051

SEAL,BRAKE CAM

41051-001

$4.26

41053

LEVER-BRAKE CAM

41053-0001

$44.77

41068

AXLE,RR

41068-1392

$48.80

41085

INDICATOR

41085-0002

$15.16

42033

COUPLING-ASSY,RR HUB

42033-1202

$157.76

42036

SLEEVE,RR HUB COUPLING

42036-030

$30.24

42041

SPROCKET-HUB,46T

42041-1534

$28.98

92015

NUT,8MM

92015-1432

$6.57

92049

SEAL-OIL,KCY26X42X8

92049-1487

$7.93

92057

CHAIN,DRIVE,132L

92057-1485

Unavailable

92058

JOINT-CHAIN,DRIVE

92058-1080

$9.49

92081

SPRING,BRAKE SHOE

92081-1550

$9.49

92081A

SPRING,BRAKE SHOE

92081-1766

$8.03

92103

NUT,CASTLE,14MM

92103-006

$25.81

92143

COLLAR,RR AXLE,L=34.5

92143-1950

$18.41

92143A

COLLAR,RR HUB COUPLING,L=20

92143-1951

$15.02

92151

BOLT,8X41

92151-1320

$3.72

92152

COLLAR,REAR BRAKE DRUM,L=100

92152-1289

$13.14

92161

DAMPER,REAR HUB SHOCK

92161-1327

$7.68

92200

WASHER,15X30X3.2

92200-1366

$4.22

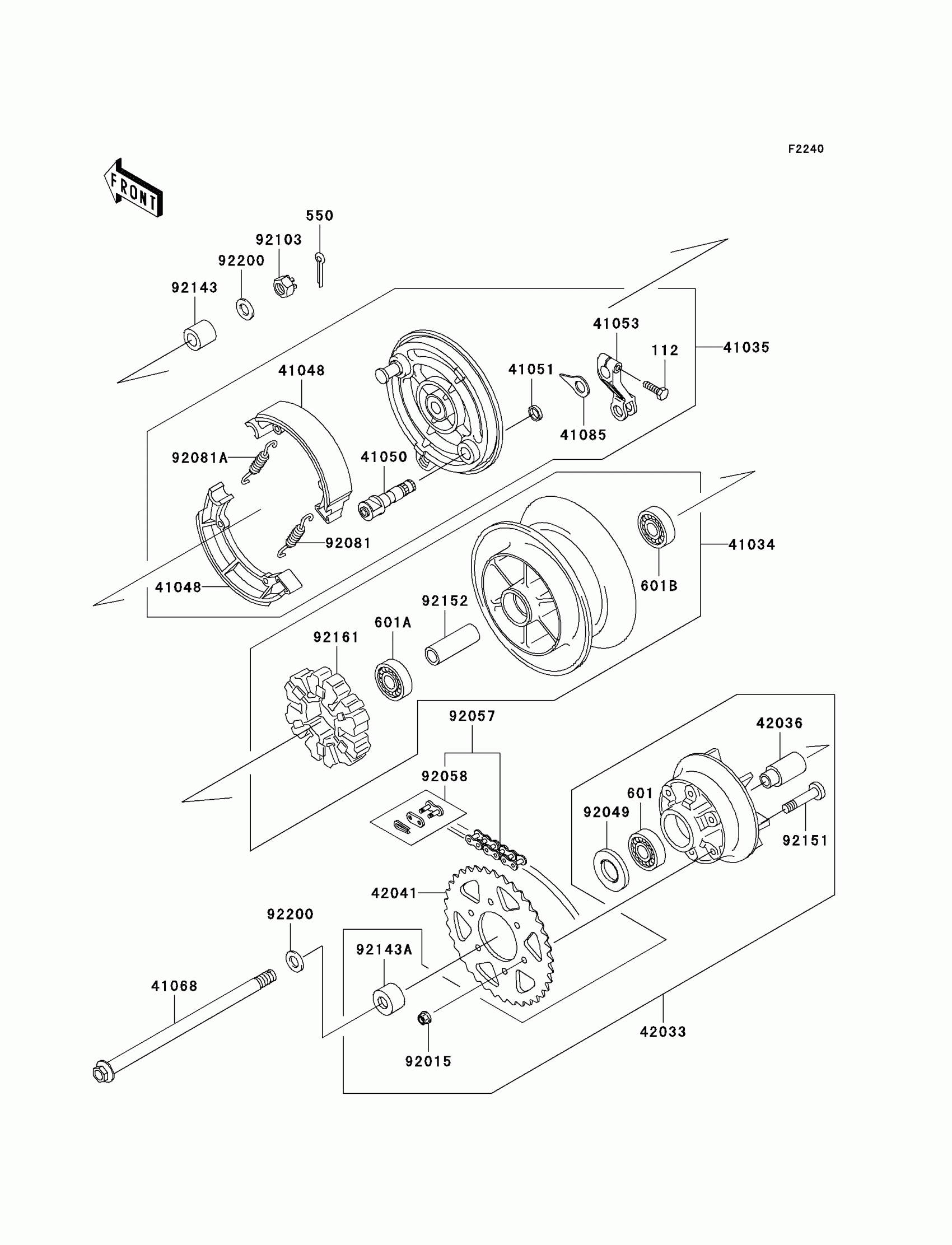

Kawasaki Eliminator® 125 Rear Wheel/Chain Diagram

BOLT-UPSET,6X22

PIN-COTTER,4X35

BEARING-BALL,#6004UUC3

BEARING-BALL

BEARING-BALL,#6302UU

DRUM-ASSY,REAR BRAKE

PANEL-ASSY-BRAKE,RR

SHOE-BRAKE

CAM-BRAKE

SEAL,BRAKE CAM

LEVER-BRAKE CAM

AXLE,RR

INDICATOR

COUPLING-ASSY,RR HUB

SLEEVE,RR HUB COUPLING

SPROCKET-HUB,46T

NUT,8MM

SEAL-OIL,KCY26X42X8

CHAIN,DRIVE,132L

JOINT-CHAIN,DRIVE

SPRING,BRAKE SHOE

SPRING,BRAKE SHOE

NUT,CASTLE,14MM

COLLAR,RR AXLE,L=34.5

COLLAR,RR HUB COUPLING,L=20

BOLT,8X41

COLLAR,REAR BRAKE DRUM,L=100

DAMPER,REAR HUB SHOCK

WASHER,15X30X3.2
