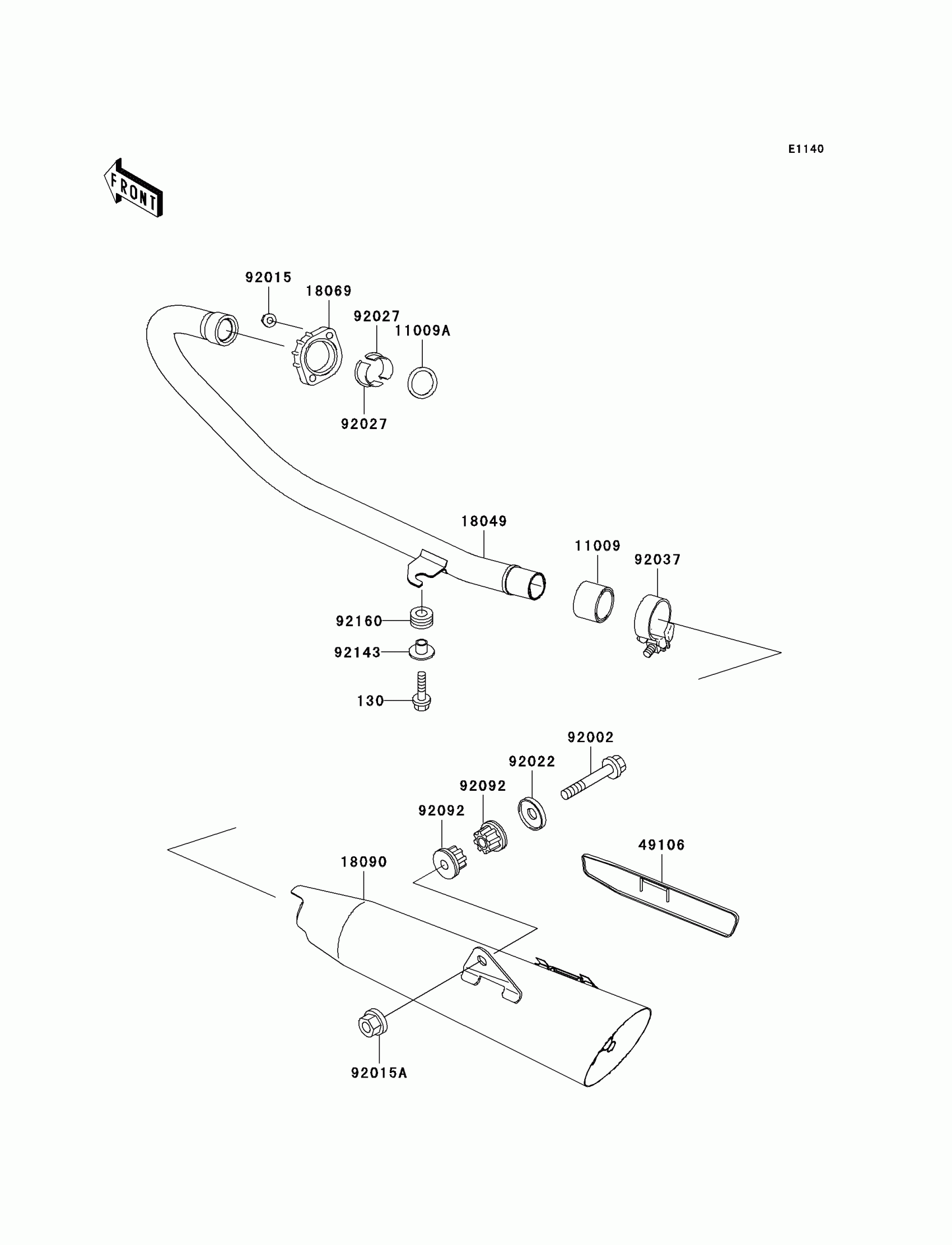

Kawasaki Eliminator® 125 Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,6X22

130BB0622

$3.67

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$22.90

11009A

GASKET,EXHAUST PIPE H

11009-1866

$8.25

18049

PIPE-EXHAUST

18049-1890

$164.23

18069

HOLDER-EXHAUST PIPE

18069-1014

$18.82

18091

BODY-COMP-MUFFLER

18091-0438

$309.31

49106

COVER-MUFFLER

49106-1239

$13.84

92002

BOLT,10X55

92002-1826

$8.94

92015

NUT,CAP,8MM

92015-1371

$5.00

92015A

NUT,FLANGED,10MM

92015-1387

$4.31

92022

WASHER

92022-289

$16.33

92027

COLLAR,L=14.5

92027-1142

$5.00

92037

CLAMP,42MM

92037-1349

$12.95

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$17.44

92143

COLLAR

92143-1353

$8.58

92160

DAMPER

92160-1895

$3.09
