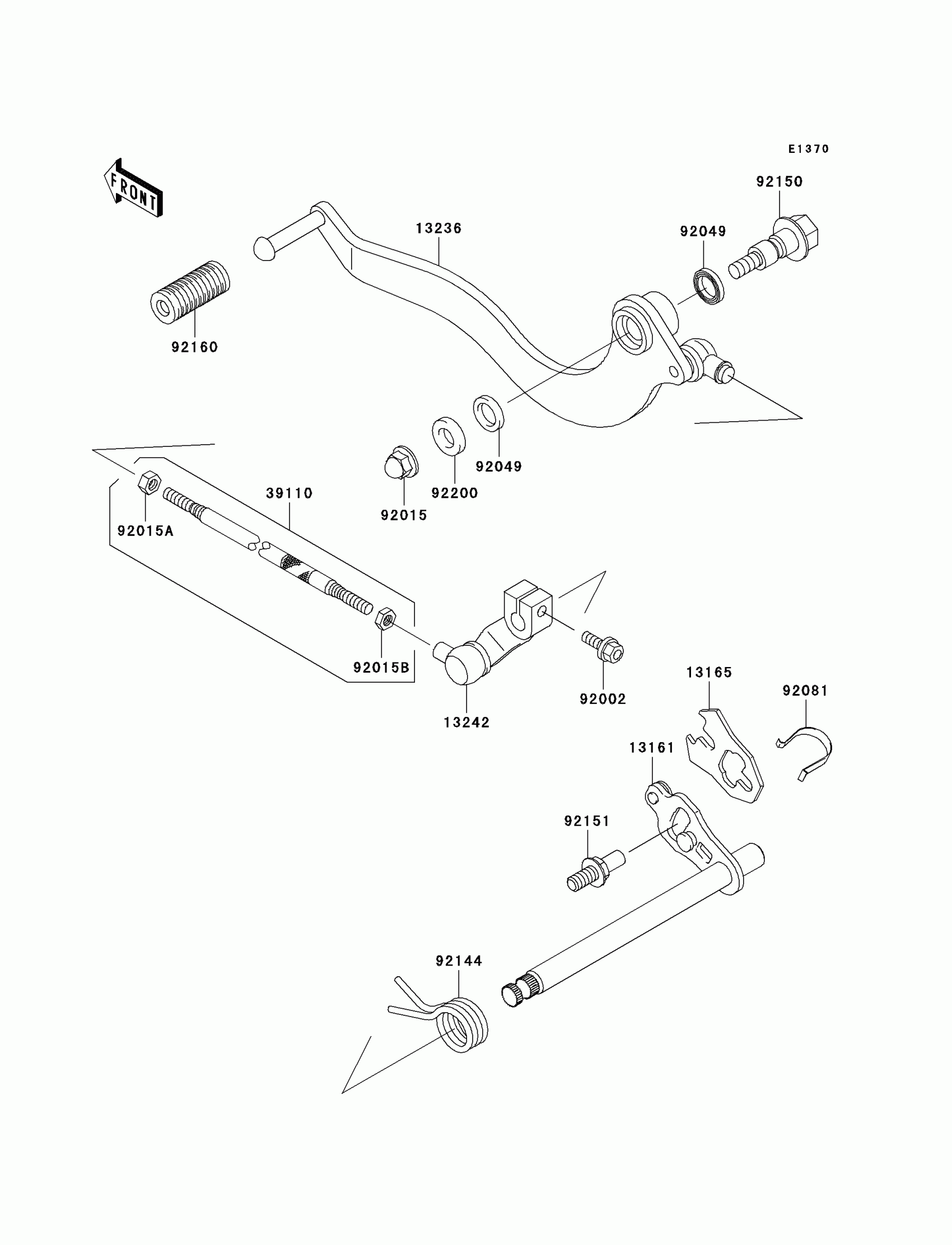

Kawasaki Eliminator 125 Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-1234

$49.25

13165

PAWL,CHANGE SHAFT

13165-1154

$17.32

13236

LEVER-COMP,CHANGE PEDAL

13236-1334

$21.38

13242

LEVER-ASSY-CHANGE

13242-1290

$57.29

39110

ROD-ASSY-TIE

39110-1124

$19.50

92002

BOLT,6X20

92002-1237

$4.31

92015

NUT,CAP,8MM

92015-1370

Unavailable

92015A

NUT,6MM

92015-1443

$3.92

92015B

NUT,LEFT HANDED,6MM

92015-1444

$4.69

92049

SEAL-OIL,VB13193

92049-1398

$6.22

92081

SPRING,CHANGE LEVER

92081-1829

$8.79

92144

SPRING,CHANGE PEDAL RETURN

92144-1074

$9.43

92150

BOLT,CHANGE PEDAL

92150-1908

$21.29

92151

BOLT,RETURN SPRING

92151-1362

Unavailable

92160

DAMPER,CHANGE PEDAL

92160-1637

$8.47

92200

WASHER,8.5X25X1.5

92200-3717

$4.92
