2009 Kawasaki Eliminator® 125 Fuel Evaporative System Diagram

← All diagrams

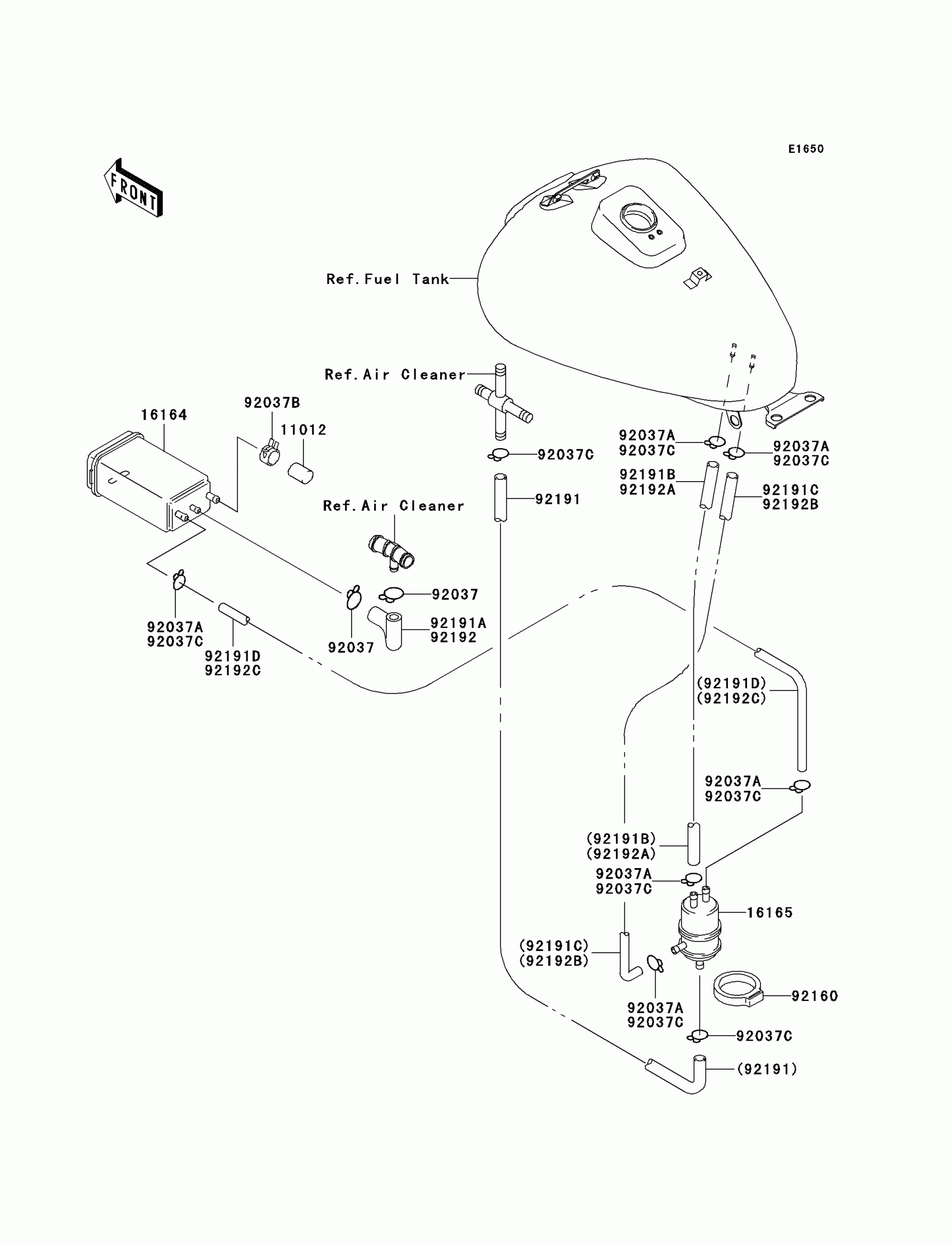

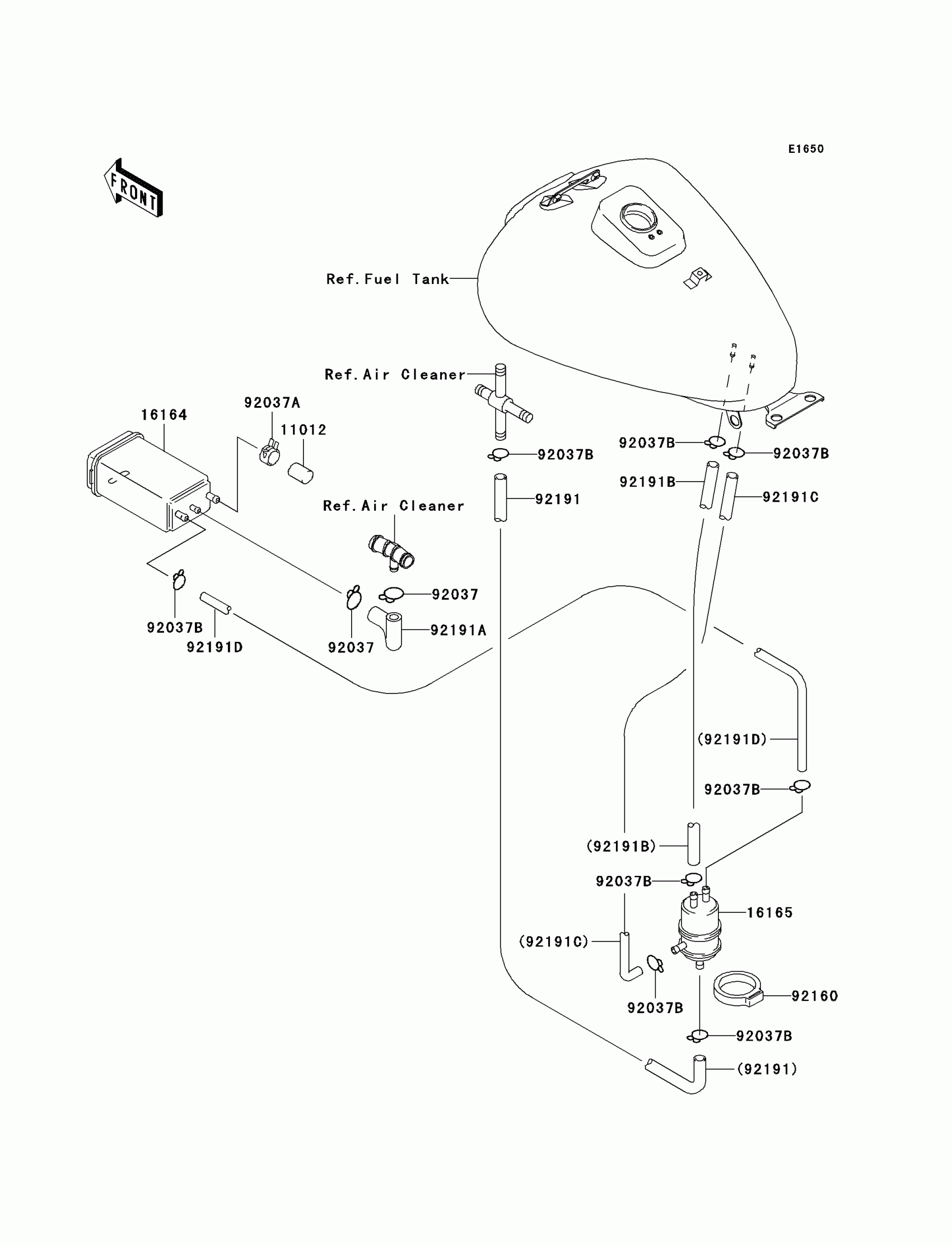

Find the part on the Fuel Evaporative System diagram for your 2009 Kawasaki Eliminator® 125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Eliminator® 125 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

11012-1388

1
Out of stock

16164

CANISTER

16164-1001

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

92037

CLAMP-HOSE

92037-1104

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP,CANISTER

92037-1512

1
Out of stock

92037C

CLAMP

92037-1610

1
Out of stock

92160

DAMPER,VALVE

92160-1867

1
Out of stock

92191

TUBE,L=280

92191-1620

1
Out of stock

92192

TUBE,CANISTER-FITTING,GREEN

92192-0833

1
Out of stock

92192A

TUBE,TANK-SEPARATOR,BLUE

92192-0834

1
Out of stock

92192B

TUBE,SEPARATOR-TANK,RED

92192-0835

1
Out of stock

92192C

TUBE,SEPARATOR-CANISTER,BLUE

92192-0836

1
Out of stock
