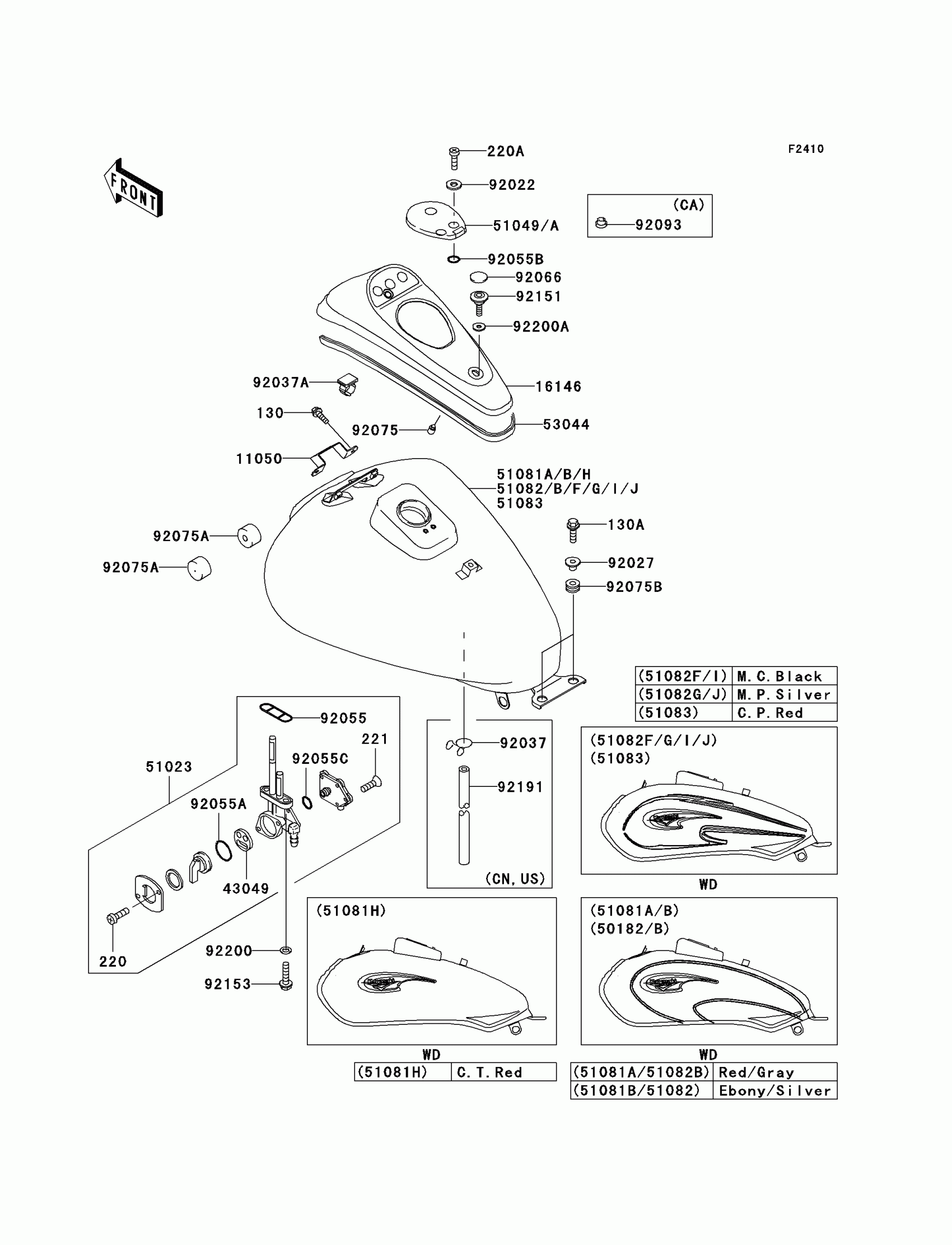

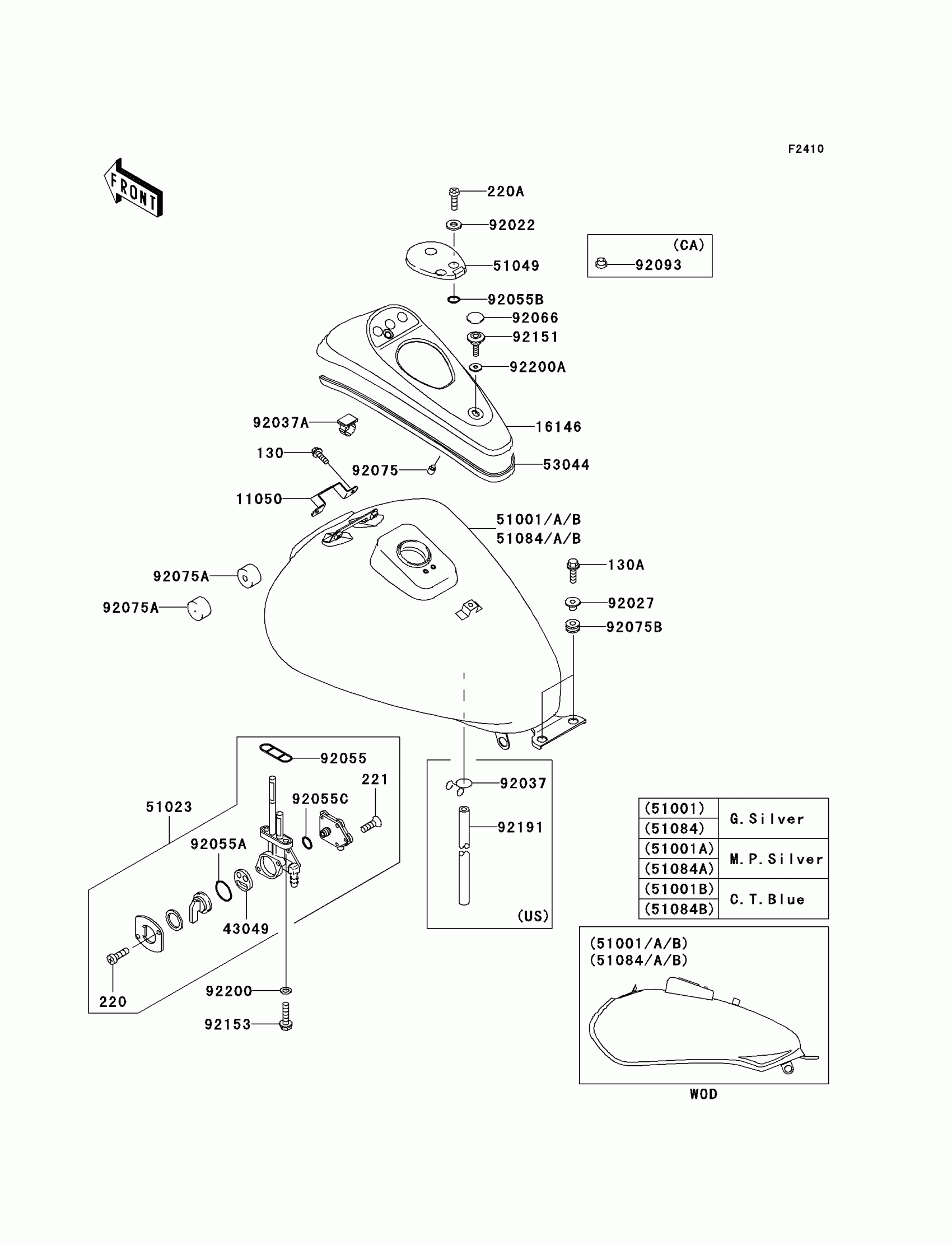

Kawasaki Eliminator 125 Fuel Tank Diagram

#

Description
Price

11050

BRACKET,FUEL TANK COVER

11050-1433

$8.24

16146

COVER-ASSY,FUEL TANK

16146-1190

$122.62

43049

PACKING,TAP VALVE

43049-1091

$5.54

51023

TAP-ASSY,FUEL

51023-1279

$132.87

51049A

CAP-TANK,FUEL

51049-1142

$112.77

53044

TRIM,L=870

53044-1316

$9.03

92022

WASHER,5.1X10X1.0

92022-1977

$2.76

92027

COLLAR,L=13.1

92027-251

Unavailable

92037A

CLAMP,TUBE

92037-1794

$7.81

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92055A

RING-O,TAP LEVER

92055-1419

$3.81

92055B

RING-O,ID=9

92055-1552

$2.41

92055C

RING-O

92055-1664

$3.96

92066

PLUG

92066-1301

$4.59

92075

DAMPER

92075-035

$3.51

92075A

DAMPER,FUEL TANK

92075-101

$4.67

92075B

DAMPER RUBBER,RR FENR

92075-209

$3.57

92151

BOLT,6MM

92151-1248

$8.64

92153

BOLT,FLANGED,6X25

92153-0514

$1.54

92200

WASHER,6.5X11.5X0.8

92200-0117

$1.85

92200A

WASHER,9.3X18X1.6

92200-1439

$4.59

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED

130J0620

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW-PAN-CROS,5X10

220D0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

51082F

TANK-COMP-FUEL,M.C.BLACK

51082-5436-167

$579.38

51082I

TANK-COMP-FUEL,M.C.BLACK

51082-5445-167

$495.37

92037

CLAMP

92037-1712

$3.81

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92191

TUBE,7X10X530

92191-1302

$2.53
