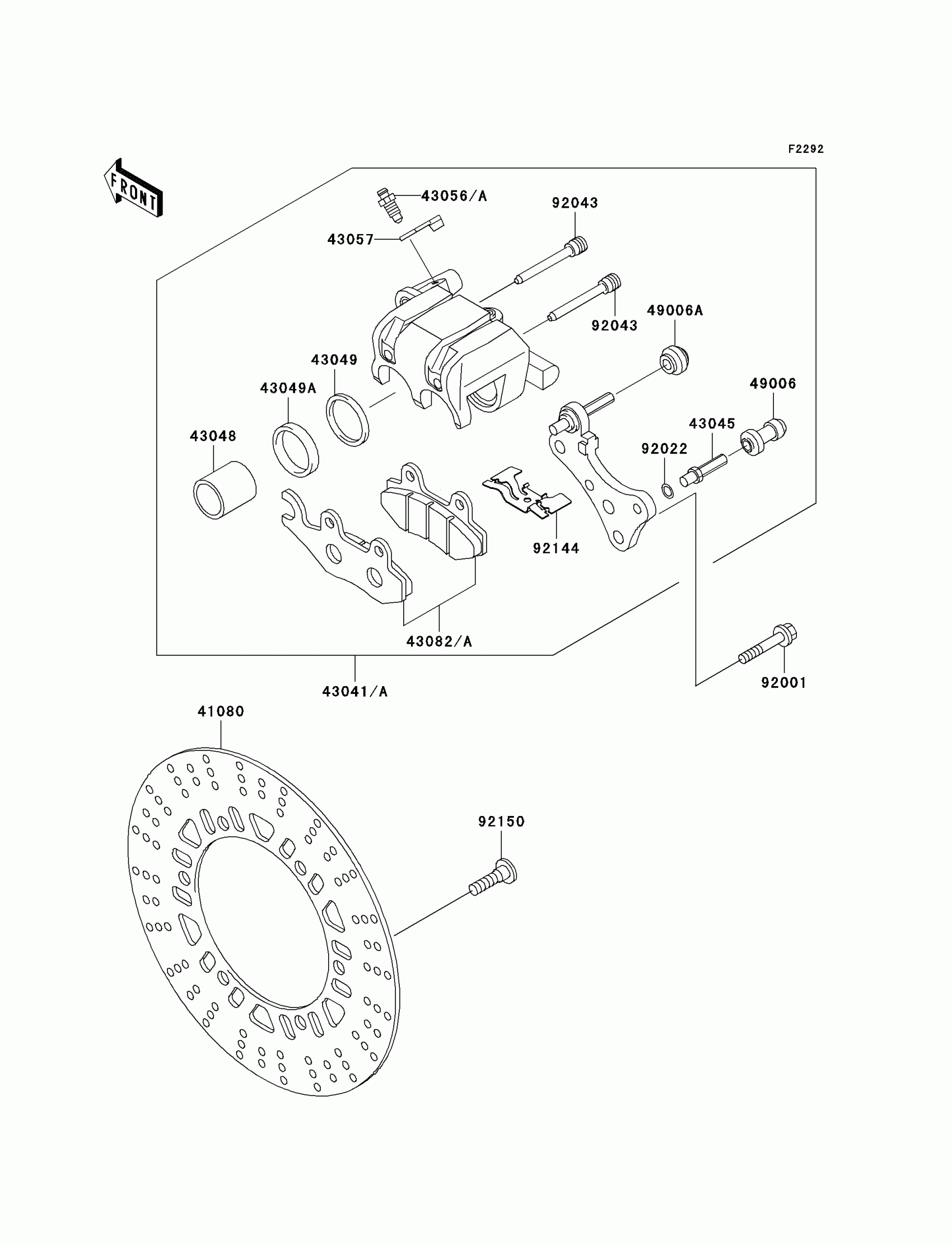

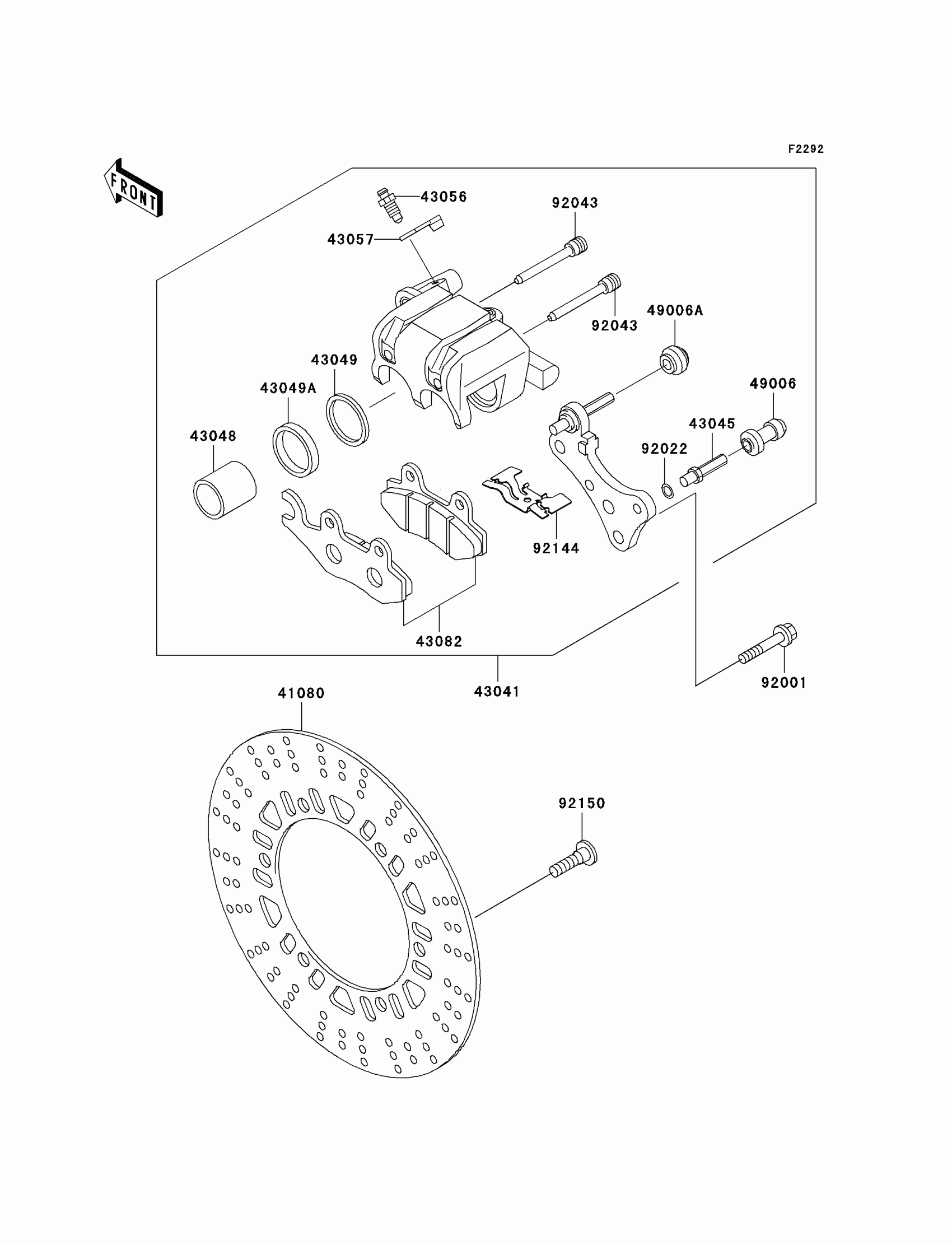

Kawasaki Eliminator® 125 Front Brake Diagram

Description

Price

41080

DISC,FR

41080-1451

$82.00

43041

CALIPER-ASSY,FR

43041-0205

$229.02

43045

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE,FR,RH

43082-0095

$36.44

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92001

BOLT,FLANGED,8X36

92001-1041

$9.86

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1557

$30.33

92150

BOLT,8X25

92150-1858

$7.84
