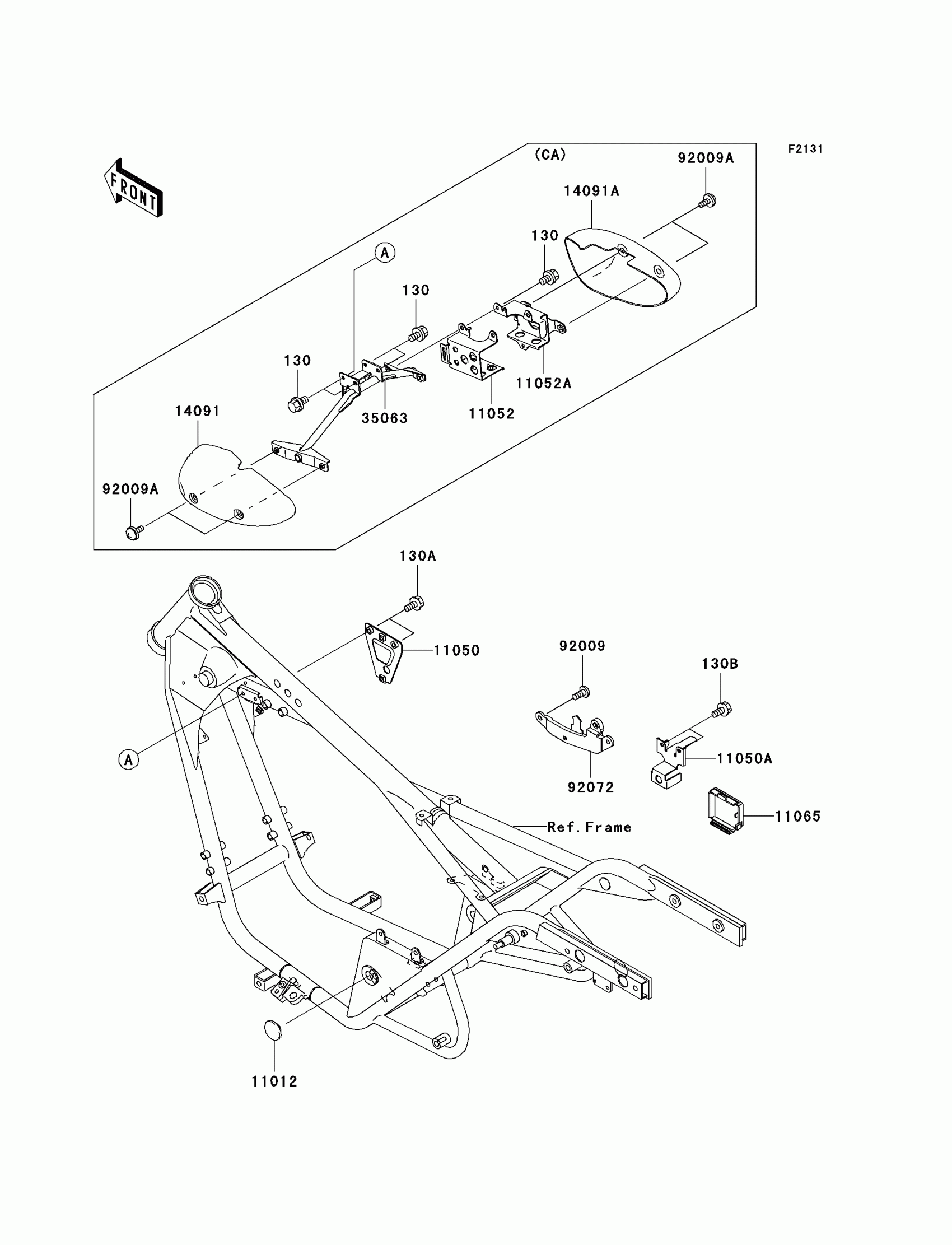

2005 Kawasaki Eliminator 125 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2005 Kawasaki Eliminator 125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

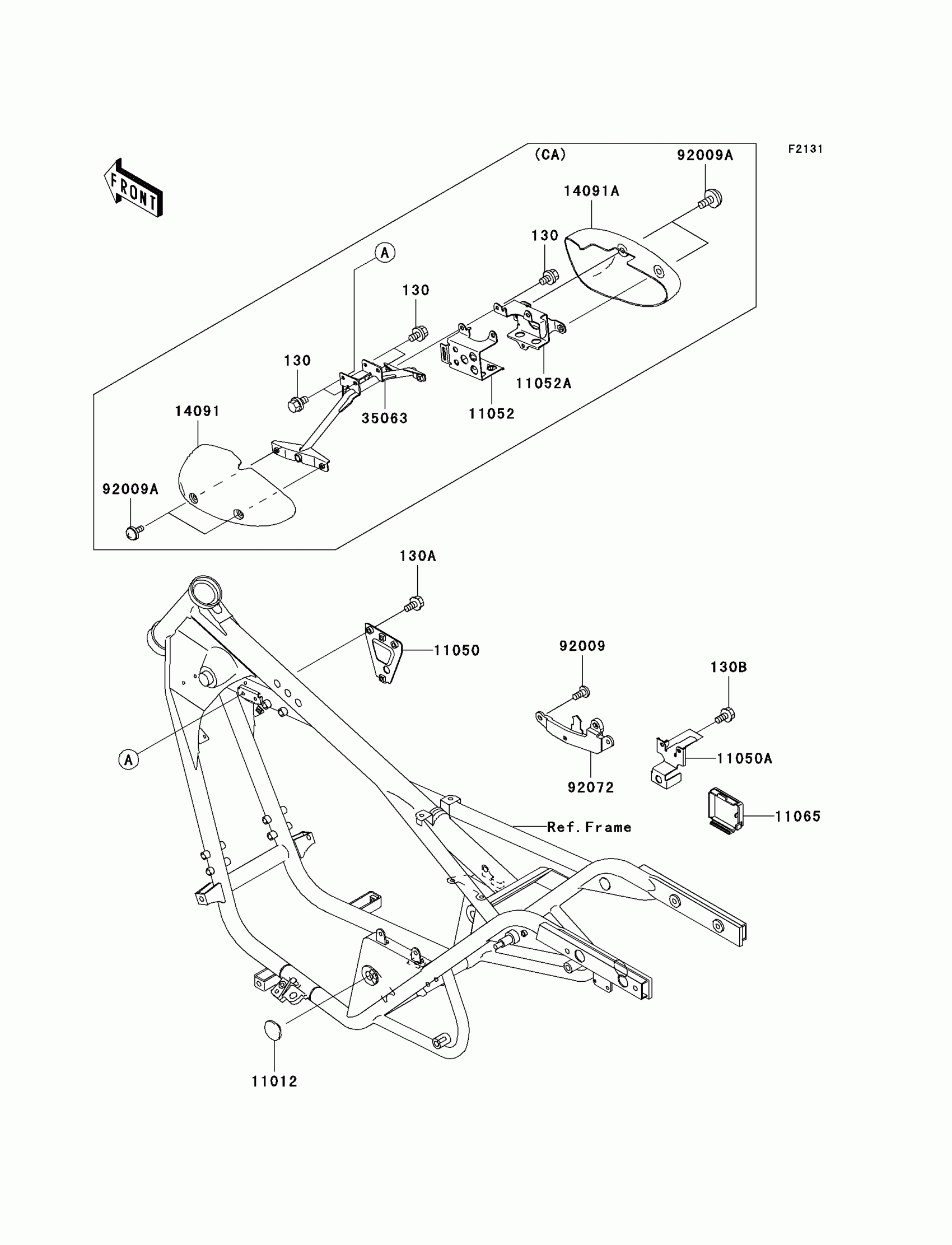

2005 Kawasaki Eliminator 125 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130A

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130B

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

11012

CAP,PIVOT

11012-1821

1
Out of stock

11050

BRACKET,IGNITER

11050-1383

1
Out of stock

11050A

BRACKET,ELECTRIC

11050-1526

1
Out of stock

11065

CAP,TOOL CASE

11065-1068

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92072

BAND

92072-1348

1
Out of stock

130

BOLT-FLANGED

130J0610

1
Out of stock

11052

BRACKET,CANISTER-IN

11052-1314

1
Out of stock

11052A

BRACKET,CANISTER-OUT

11052-1315

1
Out of stock

14091

COVER,EVAPO,LH

14091-1374

1
Out of stock

14091A

COVER,EVAPO,RH

14091-1375

1
Out of stock

35063

STAY,EVAPO

35063-1176

1
Out of stock

92009A

SCREW,6X10

92009-1716

1
Out of stock
