2005 Kawasaki Eliminator 125 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2005 Kawasaki Eliminator 125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

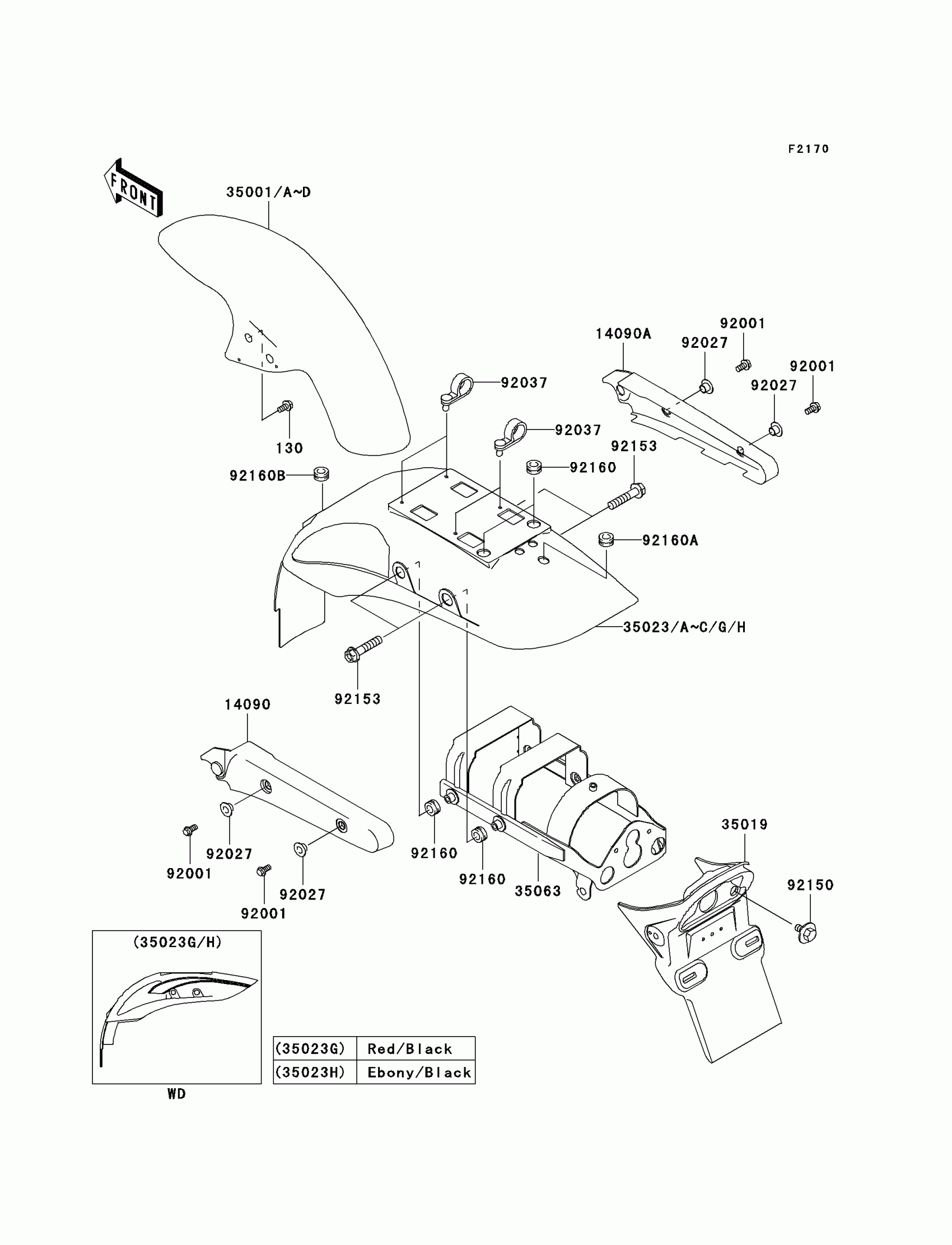

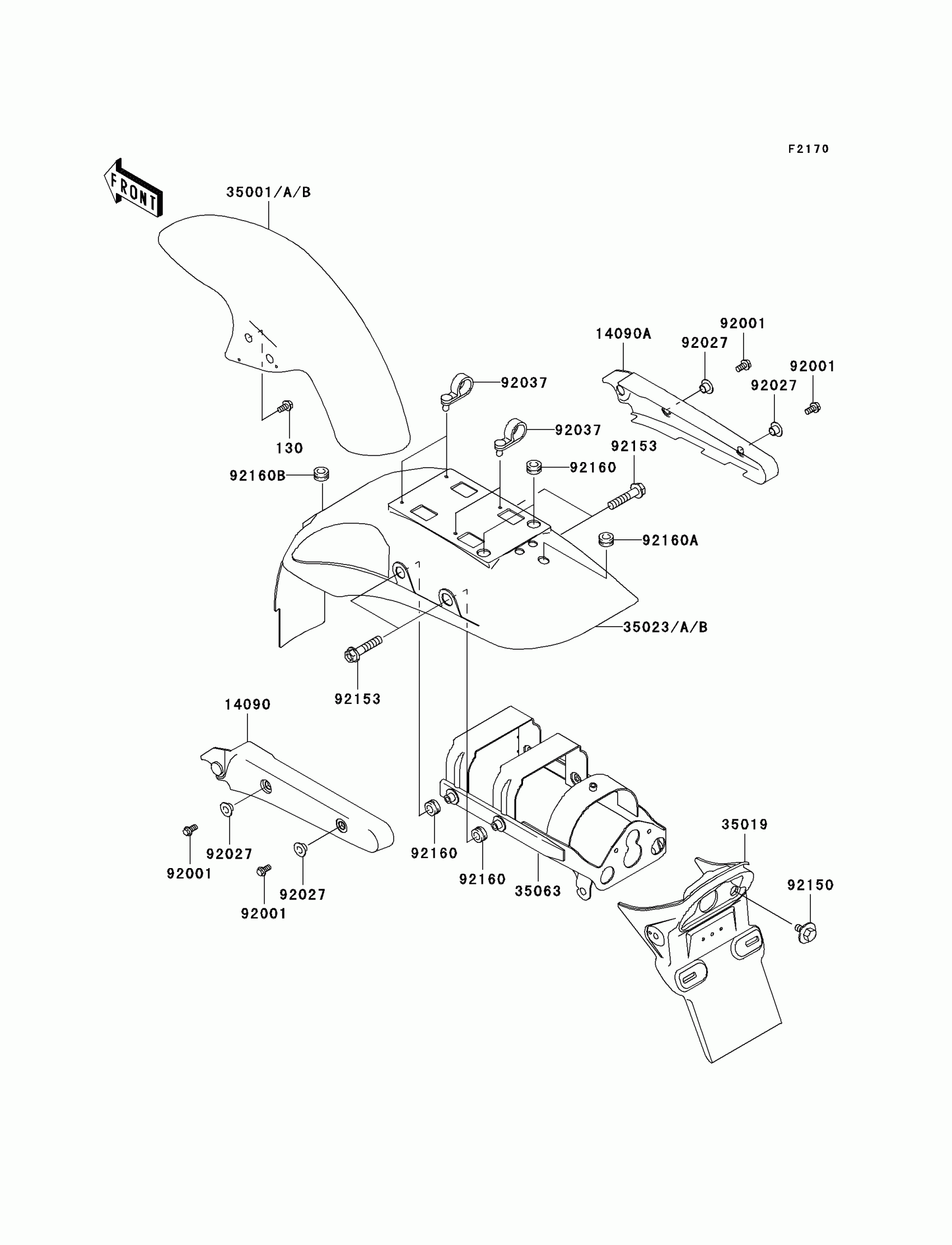

2005 Kawasaki Eliminator 125 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130J0816

1
Out of stock

14090

COVER,REAR FENDER,LH

14090-1836

1
Out of stock

14090A

COVER,REAR FENDER,RH

14090-1837

1
Out of stock

35001C

1

$43.33

In stock

35019

FLAP

35019-1382

1
Out of stock

35023A

FENDER-REAR,M.C.BLACK

35023-1496-167

1
Out of stock

35063

STAY,REAR FENDER

35063-1145

1
Out of stock

92001

BOLT,8X16

92001-1897

1
Out of stock

92027

COLLAR

92027-1745

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92150

BOLT,6X14

92150-1133

1
Out of stock

92153

BOLT,FLANGED,8X38

92153-1074

1
Out of stock

92160

DAMPER

92160-1847

1
Out of stock

92160A

DAMPER

92160-1864

1
Out of stock

92160B

DAMPER

92160-1893

1
Out of stock
