Description

Price

120

BOLT-SOCKET,5X12

120CB0512

$1.76

132

BOLT-FLANGED-SMALL,6X10

132BB0610

$2.49

132A

BOLT-FLANGED-SMALL,8X20

132BB0820

$4.12

132B

BOLT-FLANGED-SMALL,8X30

132BB0830

$4.45

411

WASHER-PLAIN,6MM

411AB0600

$1.18

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

550

PIN-COTTER,2.0X18

550AA2018

$2.51

14090

COVER,CABLE

14090-1937

$18.24

34003

HOLDER-STEP,FR,LH

34003-1464

$72.33

34003A

HOLDER-STEP,FR,RH

34003-1465

$95.84

34003B

HOLDER-STEP,RR

34003-1486

$3.01

34028

STEP,RUBBER

34028-1372

$23.89

34028A

STEP,RR

34028-1373

$28.94

34028B

STEP,FR,LH

34028-1495

$51.39

34028C

STEP,FR,RH

34028-1496

$51.39

92022

WASHER,20X30X2.3

92022-1568

$4.31

92043

PIN,12X37

92043-0025

$5.57

92043A

PIN,6X30.5

92043-1581

$0.77

92076

DAMPER

92076-020

$24.87

92144

SPRING,STEP RETURN

92144-1567

$6.51

92144A

SPRING,STEP RETURN

92144-1568

$6.51

92150

BOLT,BANK SENSER

92150-1153

$7.84

92153

BOLT,SOCKET,10X20

92153-0567

Unavailable

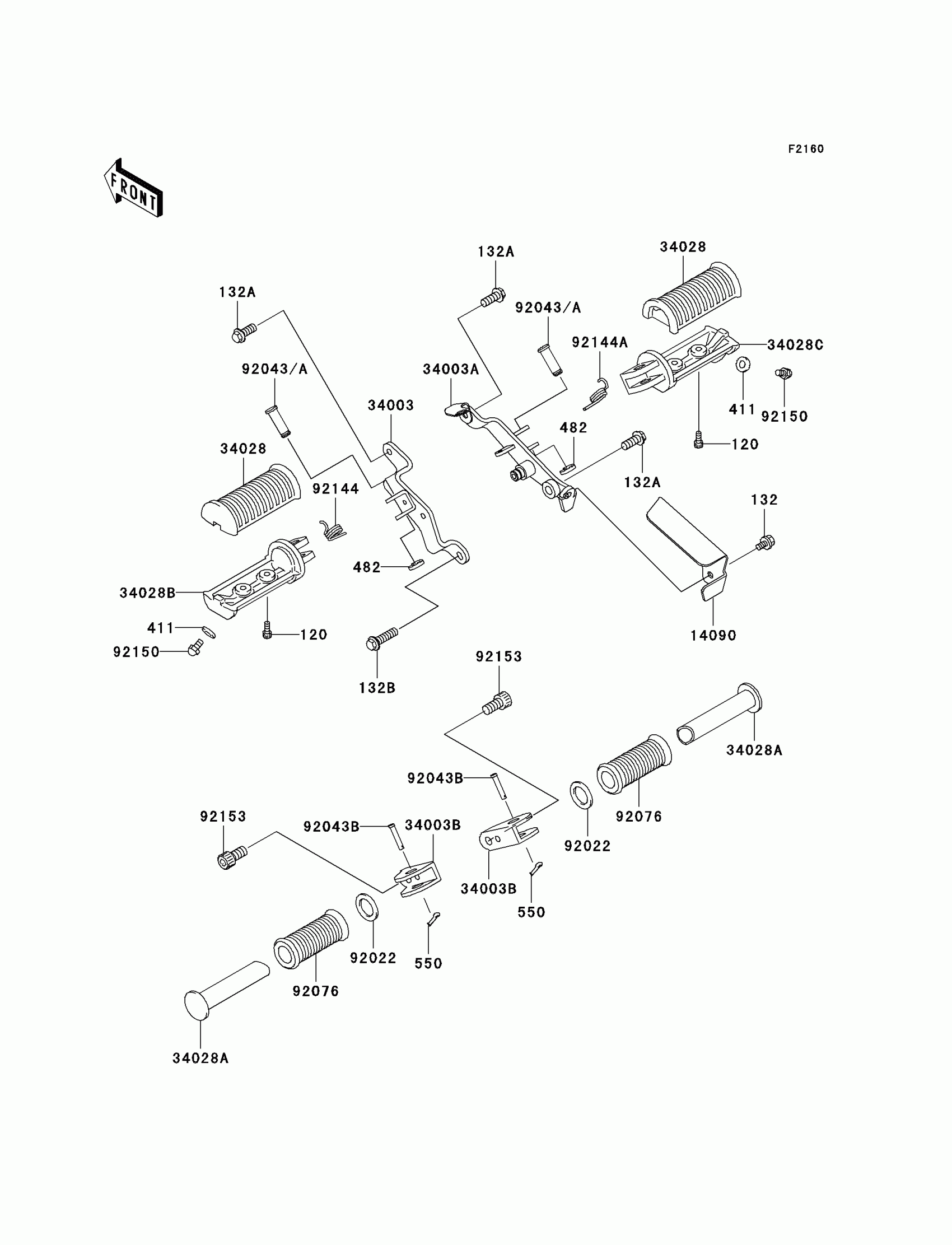

Kawasaki Eliminator® 125 Footrests Diagram

BOLT-SOCKET,5X12

BOLT-FLANGED-SMALL,6X10

BOLT-FLANGED-SMALL,8X20

BOLT-FLANGED-SMALL,8X30

WASHER-PLAIN,6MM

CIRCLIP-TYPE-E,10MM

PIN-COTTER,2.0X18

COVER,CABLE

HOLDER-STEP,FR,LH

HOLDER-STEP,FR,RH

HOLDER-STEP,RR

STEP,RUBBER

STEP,RR

STEP,FR,LH

STEP,FR,RH

WASHER,20X30X2.3

PIN,12X37

PIN,6X30.5

DAMPER

SPRING,STEP RETURN

SPRING,STEP RETURN

BOLT,BANK SENSER

BOLT,SOCKET,10X20
