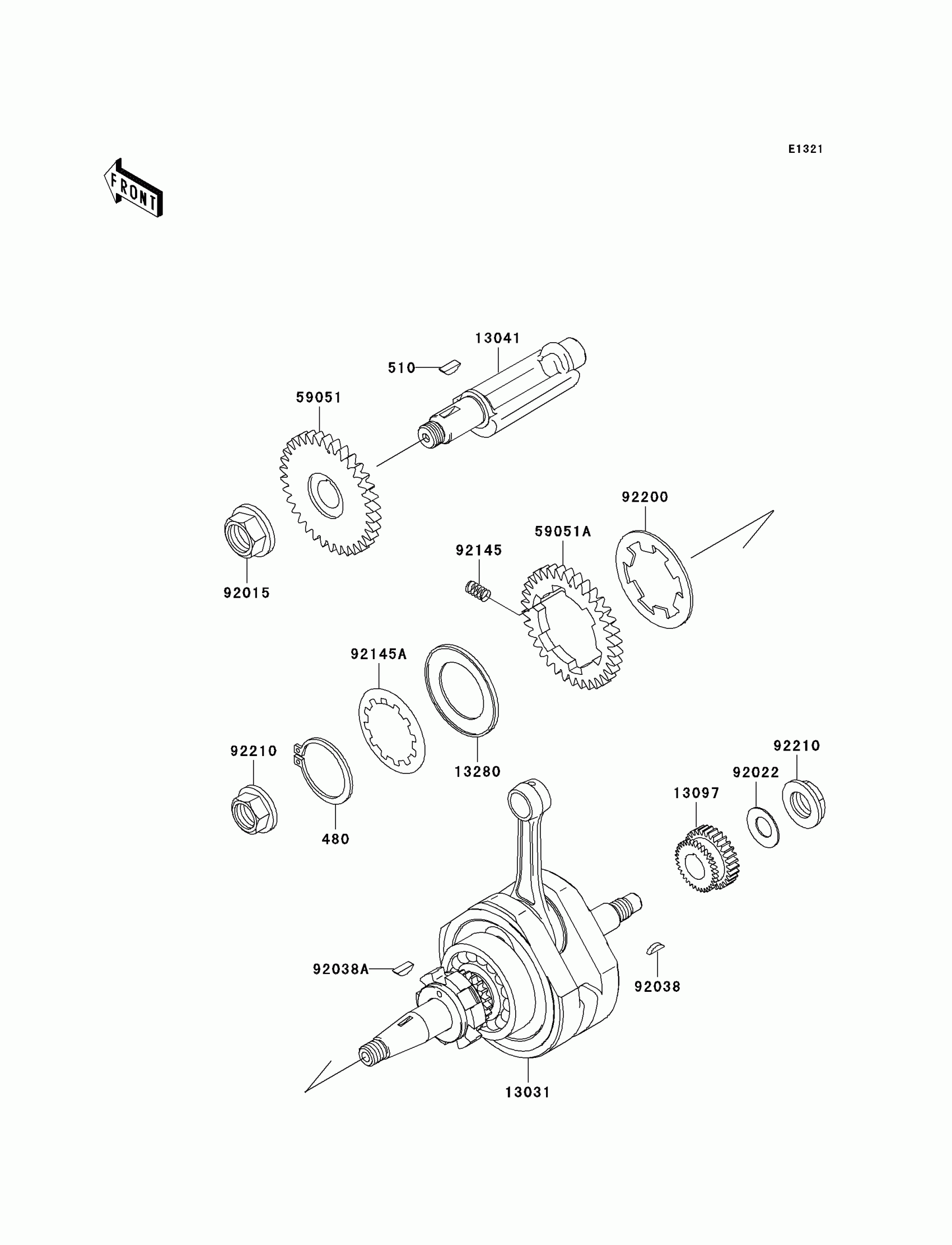

Kawasaki Eliminator® 125 Crankshaft Diagram

Description

Price

480

CIRCLIP

480J4000

$6.57

510

WOODRUFF KEY

510A5100

$2.70

13031

CRANKSHAFT-COMP

13031-1459

$448.62

13041

BALANCER

13041-1117

$65.88

13097

GEAR-PRIMARY SPUR

13097-1378

$125.08

13280

HOLDER,BALANCER

13280-1121

$7.82

59051

GEAR-SPUR,BALANCER

59051-1324

$108.26

59051A

GEAR-SPUR,BALANCER

59051-1325

$121.22

92015

NUT,16MM

92015-1465

$18.57

92022

WASHER,SPRING,14M/M

92022-1232

$2.28

92038

KEY,WOODRUFF

92038-001

$4.96

92038A

KEY,WOODRUFF

92038-3703

$6.33

92145

SPRING

92145-1195

$2.55

92145A

SPRING

92145-1196

$7.82

92200

WASHER

92200-1314

$8.92

92210

NUT,14MM

92210-1163

$9.71
