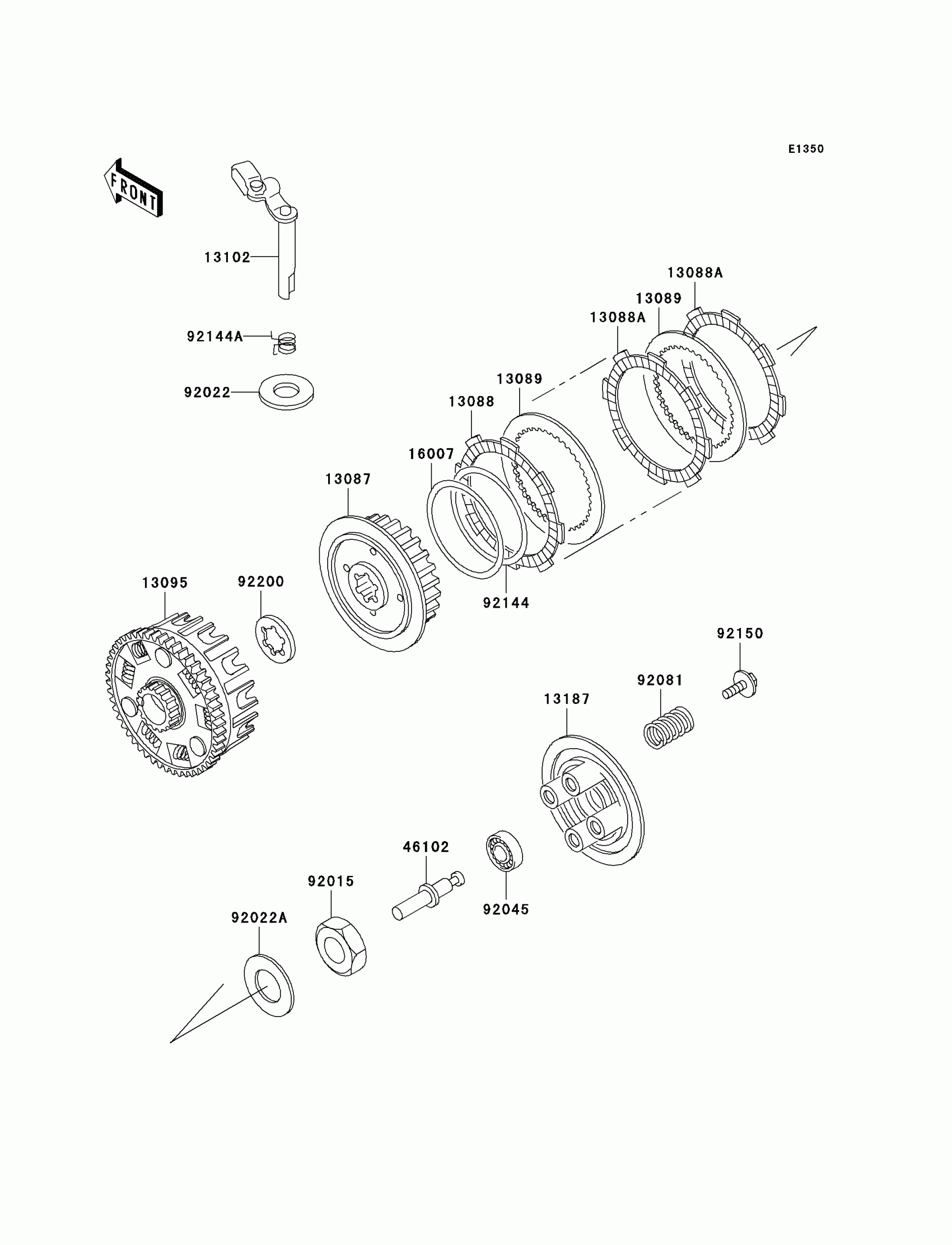

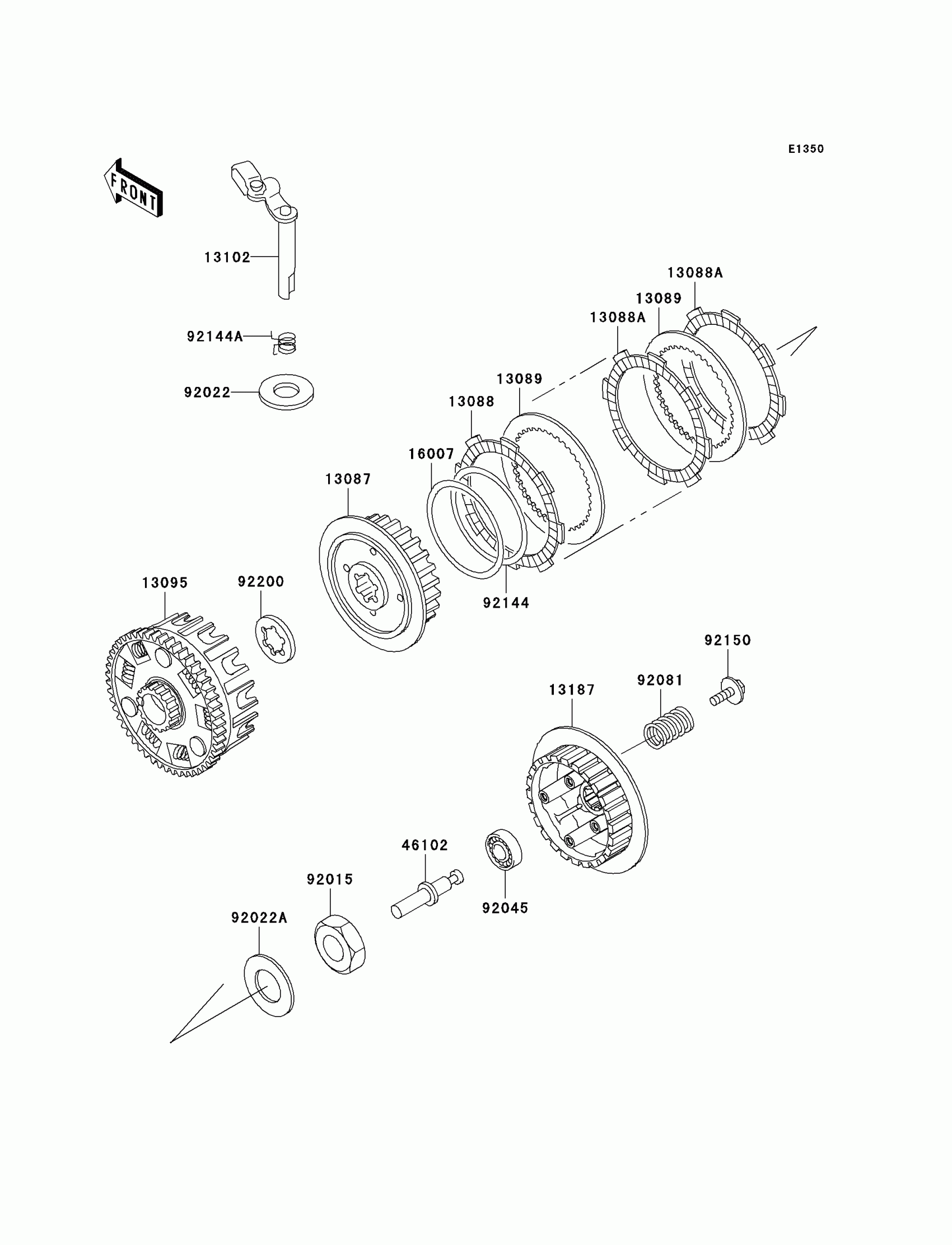

Kawasaki Eliminator® 125 Clutch Diagram

Description

Price

13087

HUB-CLUTCH

13087-1169

$84.44

13088

PLATE-FRICTION

13088-1085

$15.03

13088A

PLATE-FRICTION

13088-1098

$14.31

13089

PLATE-CLUTCH

13089-1076

$12.80

13095

HOUSING-COMP-CLUTCH

13095-1388

$178.61

13102

RELEASE-COMP-CLUTCH

13102-1139

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1072

$53.36

16007

SEAT-SPRING

16007-1162

$15.74

46102

ROD

46102-1402

$16.53

92015

NUT,LOCK,16MM

92015-072

$7.34

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92022A

WASHER,16.3X29X1.75

92022-1356

$7.34

92045

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92081

SPRING,CLUTCH

92081-1492

$7.38

92144

SPRING

92144-1522

$13.58

92144A

SPRING,RELEASE SHAFT

92144-1995

$4.28

92150

BOLT,6X20,WASHER

92150-1715

$3.94

92200

WASHER

92200-1440

$12.91
