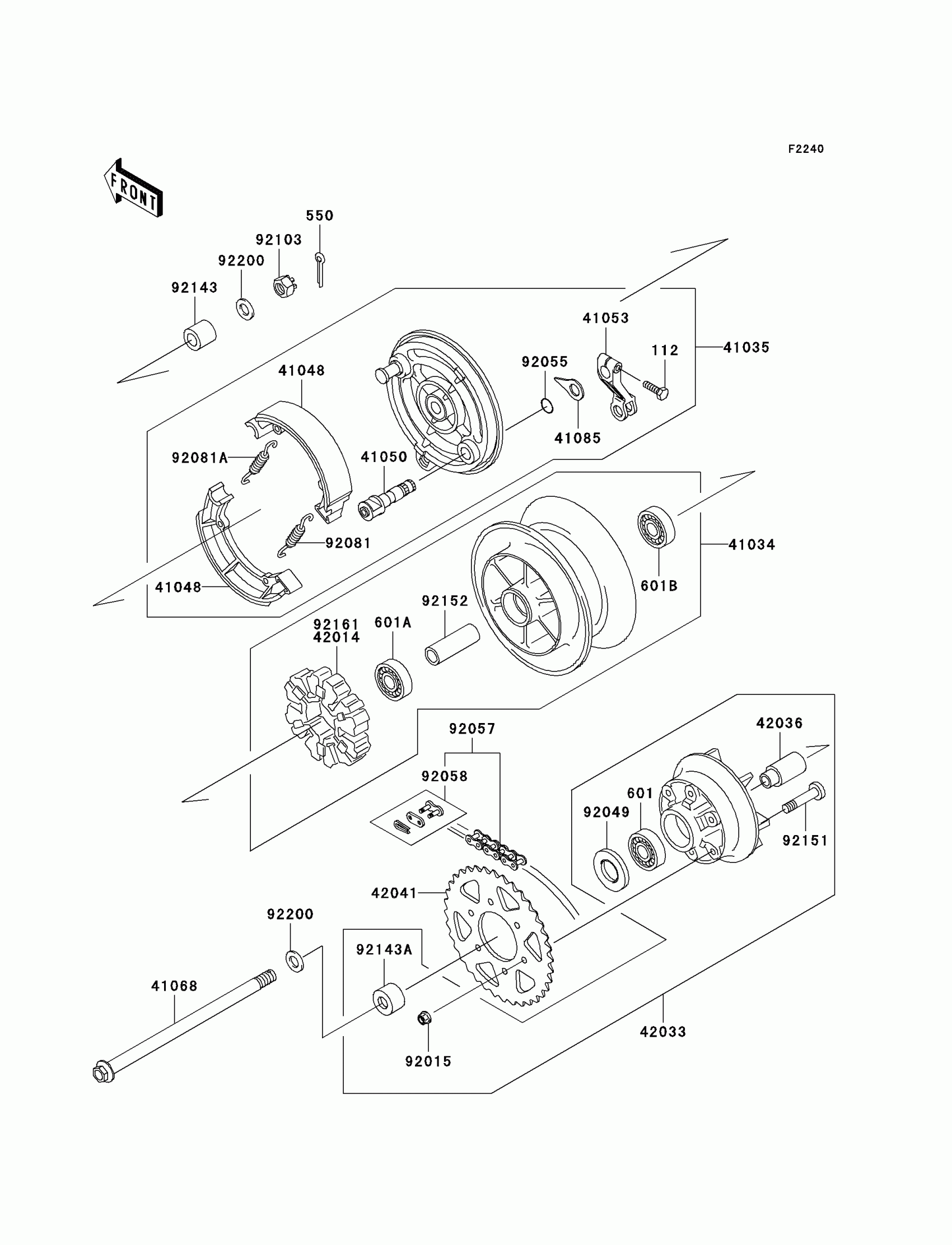

Kawasaki Eliminator 125 (Canada Only) Rear Wheel/Chain(A4-A6) Diagram

Description

Price

112

BOLT-UPSET,6X22

112P0622

Unavailable

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BEARING-BALL,#6004UUC3

601B6004UU

$25.52

601A

BEARING-BALL

601B6202UU

$17.77

601B

BEARING-BALL,#6302UU

601B6302UU

$23.63

41034

DRUM-ASSY,REAR BRAKE

41034-1318

$251.08

41035

PANEL-ASSY-BRAKE,RR

41035-1511

Unavailable

41048

SHOE-BRAKE

41048-1076

$33.96

41050

CAM-BRAKE

41050-1096

$31.87

41053

LEVER-BRAKE CAM

41053-1087

$48.50

41068

AXLE,RR

41068-1392

$49.75

41085

INDICATOR,BRAKE SHOE

41085-013

$13.78

42033

COUPLING-ASSY,RR HUB

42033-1202

$161.10

42036

SLEEVE,RR HUB COUPLING

42036-030

$30.83

42041

SPROCKET-HUB,46T

42041-1534

$29.54

92015

NUT,8MM

92015-1432

$4.93

92049

SEAL-OIL,KCY26X42X8

92049-1487

$7.78

92055

RING-O,BRAKE CAM

92055-004

$4.25

92057

CHAIN,DRIVE,132L

92057-1485

Unavailable

92058

JOINT-CHAIN,DRIVE

92058-1080

$7.23

92081

SPRING,BRAKE SHOE

92081-1550

$9.20

92081A

SPRING,BRAKE SHOE

92081-1766

$6.13

92103

NUT,CASTLE,14MM

92103-006

$24.24

92143

COLLAR,RR AXLE,L=34.5

92143-1950

$17.22

92143A

COLLAR,RR HUB COUPLING,L=20

92143-1951

$14.22

92151

BOLT,8X41

92151-1320

$3.27

92152

COLLAR,REAR BRAKE DRUM,L=100

92152-1289

$12.53

92161

DAMPER,REAR HUB SHOCK

92161-1327

$5.86

92200

WASHER,15X30X3.2

92200-1366

$3.78
