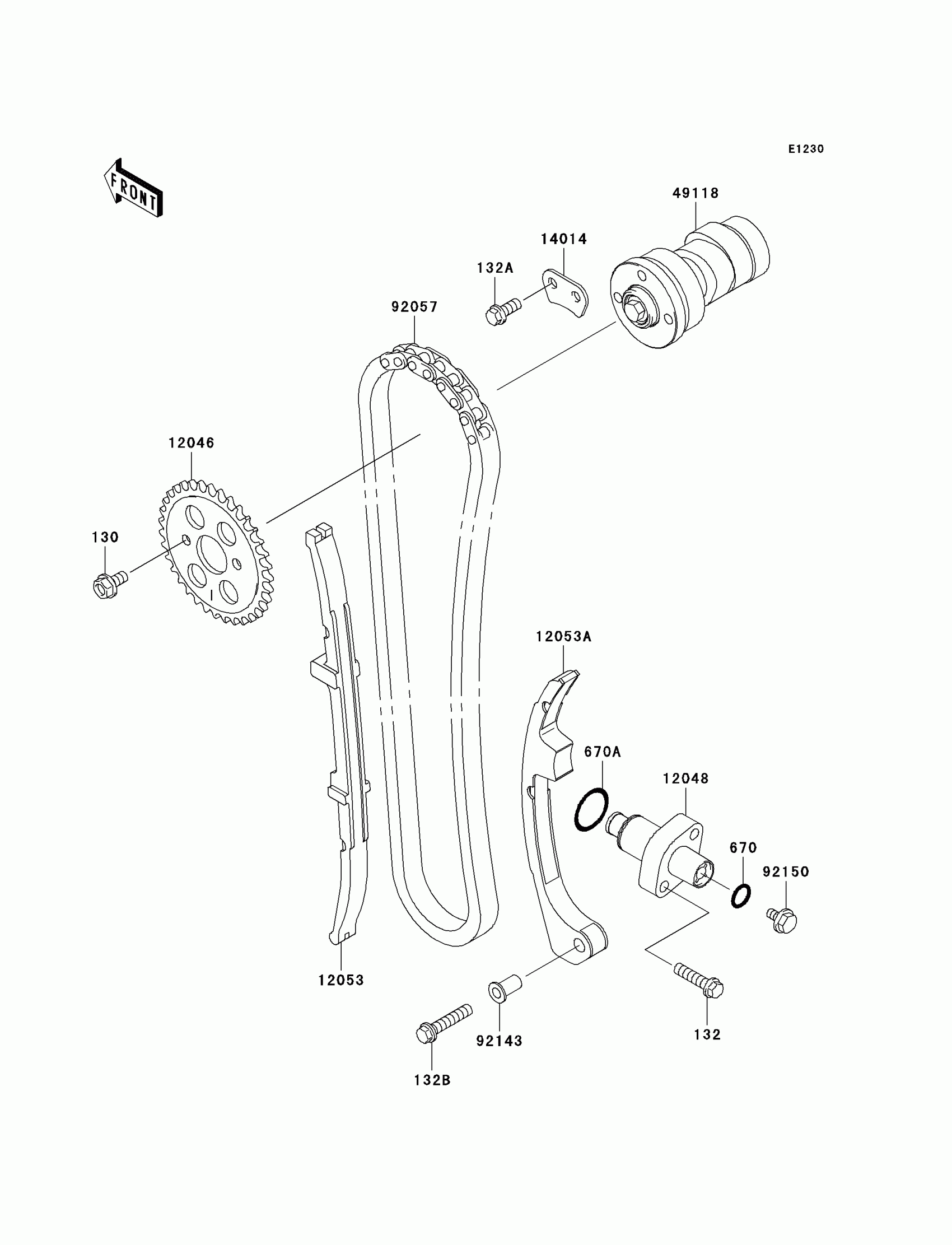

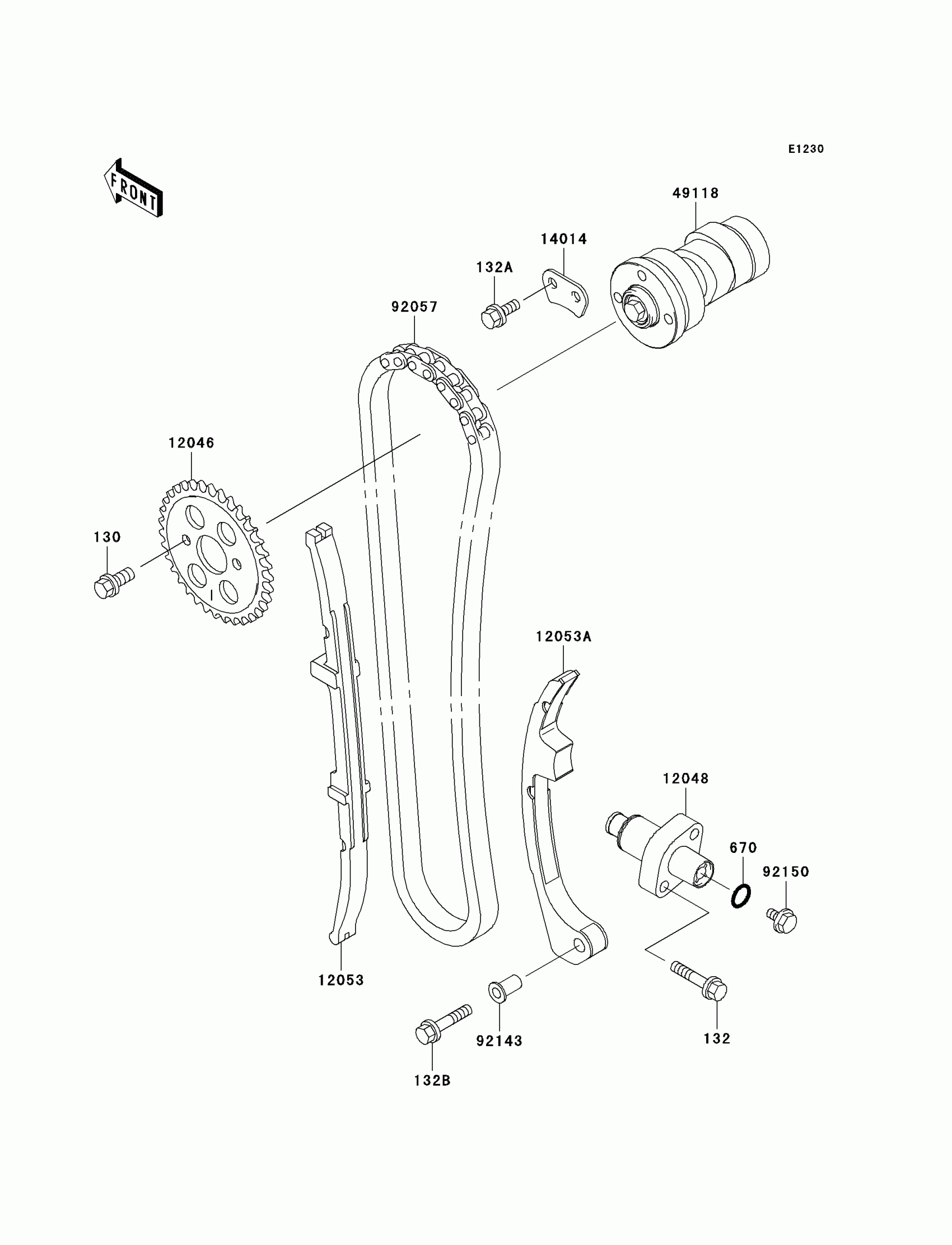

Kawasaki Eliminator® 125 Camshaft(s)/Tensioner Diagram

Description

Price

130

BOLT-FLANGED,6X12

130CB0612

$2.58

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

132A

BOLT-FLANGED-SMALL,6X14

132BD0614

$3.67

132B

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

670

O RING,10MM

670D2010

$1.94

670A

O RING,21MM

670D2021

$6.85

12046

SPROCKET

12046-1192

$33.95

12048

TENSIONER-ASSY

12048-1169

$89.50

12053

GUIDE-CHAIN,FR

12053-1383

$38.74

12053A

GUIDE-CHAIN,RR

12053-1421

$37.58

14014

PLATE-POSITION

14014-1095

$5.54

49118

CAMSHAFT-COMP

49118-1200

$181.89

92057

CHAIN,CAM,92RH2010-102M

92057-1457

$42.63

92143

COLLAR

92143-1857

$3.21

92150

BOLT,TENSIONER

92150-1381

$8.19
