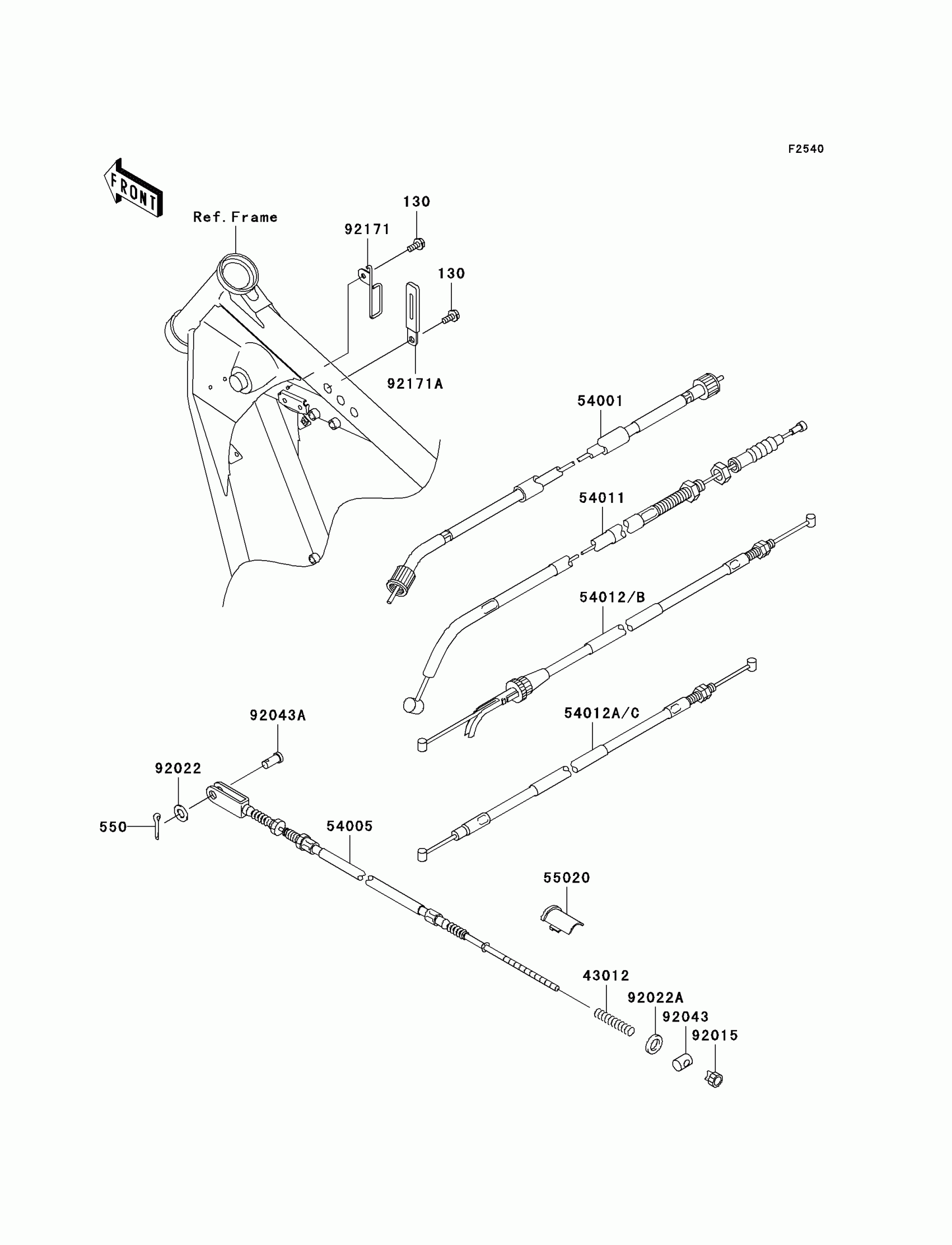

Kawasaki Eliminator® 125 Cables Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BB0614

$2.49

550

PIN-COTTER,2.0X18

550AA2018

$2.51

43012

SPRING,BRAKE ROD

43012-001

$4.65

54001

CABLE-SPEEDMETER

54001-1244

$24.51

54005

CABLE-BRAKE

54005-1192

$49.07

54011

CABLE-CLUTCH

54011-1404

$26.12

54012

CABLE-THROTTLE,OPENING

54012-0017

$26.95

54012A

CABLE-THROTTLE,CLOSING

54012-0018

$26.95

55020

GUARD,REAR BRAKE CABLE

55020-1687

$11.86

92015

NUT,BRAKE ROD

92015-042

$6.22

92022

WASHER,8.5X16X1.2

92022-1582

$0.96

92022A

WASHER,6.3X10.2X1.6

92022-1588

$3.92

92043

PIN,BRAKE ROD

92043-065

$5.57

92043A

PIN,8X16

92043-1013

$9.91

92171

CLAMP,CLUTCH CABLE

92171-1063

$9.21

92171A

CLAMP,WIRING HARNESS,L=60

92171-1425

$1.86
