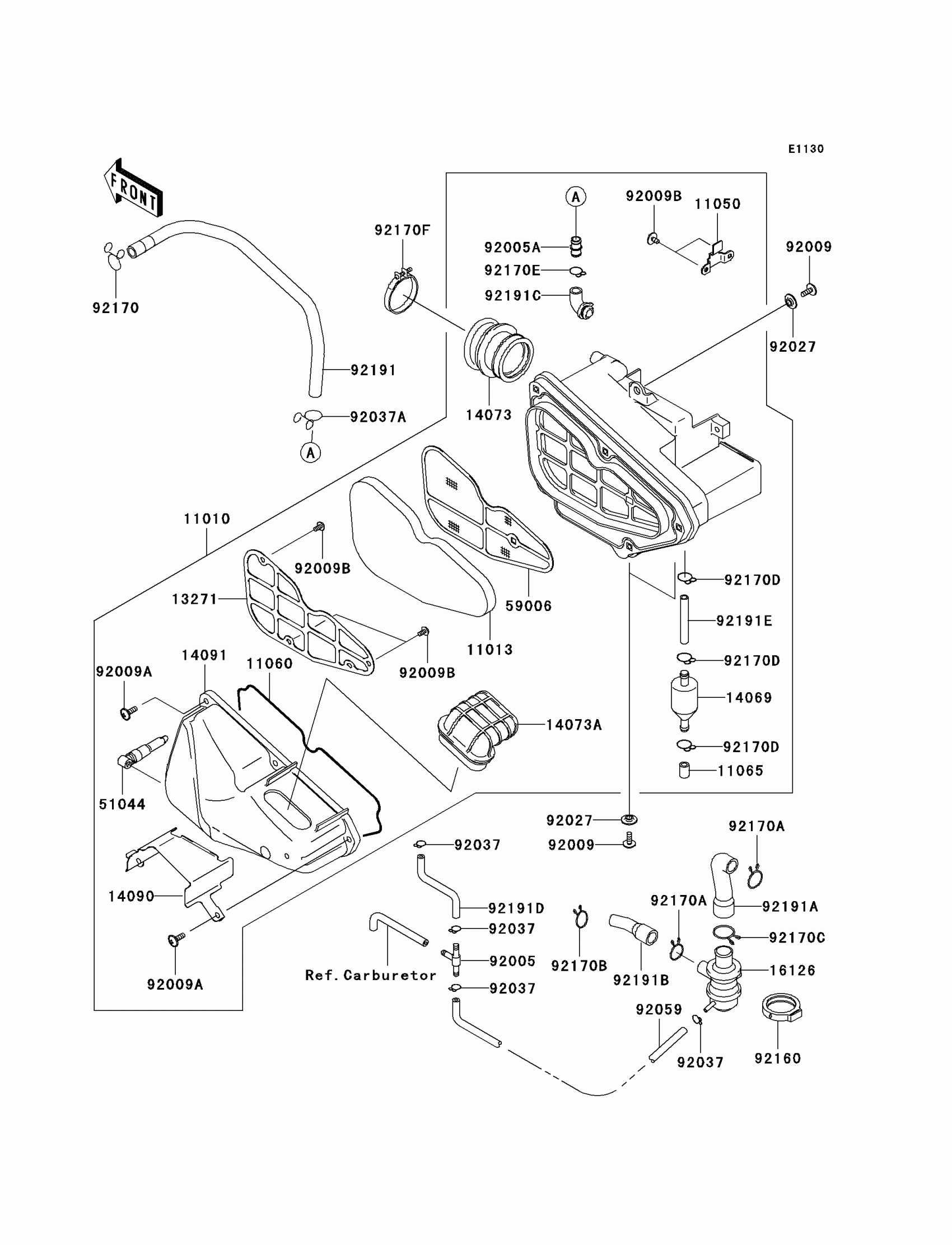

Kawasaki Eliminator® 125 Air Cleaner(US) Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1719

$199.51

11013

ELEMENT-AIR FILTER

11013-1268

$9.06

11050

BRACKET

11050-1427

$6.29

11060

GASKET,AIR FILTER

11060-1808

$6.55

11065

CAP,BREATHER

11065-1088

$2.60

13271

PLATE,ELEMENT

13271-1103

$18.69

14069

BREATHER

14069-1064

$8.55

14073

DUCT,CARBURETOR

14073-1702

$15.60

14073A

DUCT,INTAKE

14073-1703

$34.10

14090

COVER,INTAKE DUCT

14090-1891

$9.95

14091

COVER,AIR FILTER

14091-1114

$37.96

16126

VALVE

16126-1353

$157.62

51044

TUBE-ASSY,DRAIN

51044-1196

$17.58

59006

ARRESTER-FLAME

59006-1057

$31.98

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING

92005-1247

$6.58

92009

SCREW,6X16

92009-1621

Unavailable

92009A

SCREW,6X18

92009-1830

$2.76

92009B

SCREW,TAPPING 5X10

92009-1831

$2.58

92027

COLLAR

92027-1757

$4.69

92037

CLAMP

92037-1610

$2.00

92037A

CLAMP,BREATHER TUBE

92037-192

$6.52

92059

TUBE,4X9X260

92059-1712

$19.09

92160

DAMPER,VALVE

92160-1867

$6.21

92170

CLAMP

92170-1017

$4.69

92170A

CLAMP,TUBE

92170-1445

$4.92

92170B

CLAMP

92170-1695

$2.78

92170C

CLAMP

92170-1786

$2.82

92170D

CLAMP,11.6MM

92170-1796

$7.34

92170E

CLAMP

92170-1845

$2.76

92170F

CLAMP

92170-1864

$3.99

92191

TUBE,BREATHER

92191-1162

$18.52

92191A

TUBE,AIR FILTER-VALVE

92191-1163

$8.40

92191B

TUBE,VALVE-ENGINE

92191-1164

$9.05

92191C

TUBE,BREATHER

92191-1208

$8.81

92191D

TUBE,L=115

92191-1210

$5.16

92191E

TUBE,7X12X45

92191-1241

$4.19
