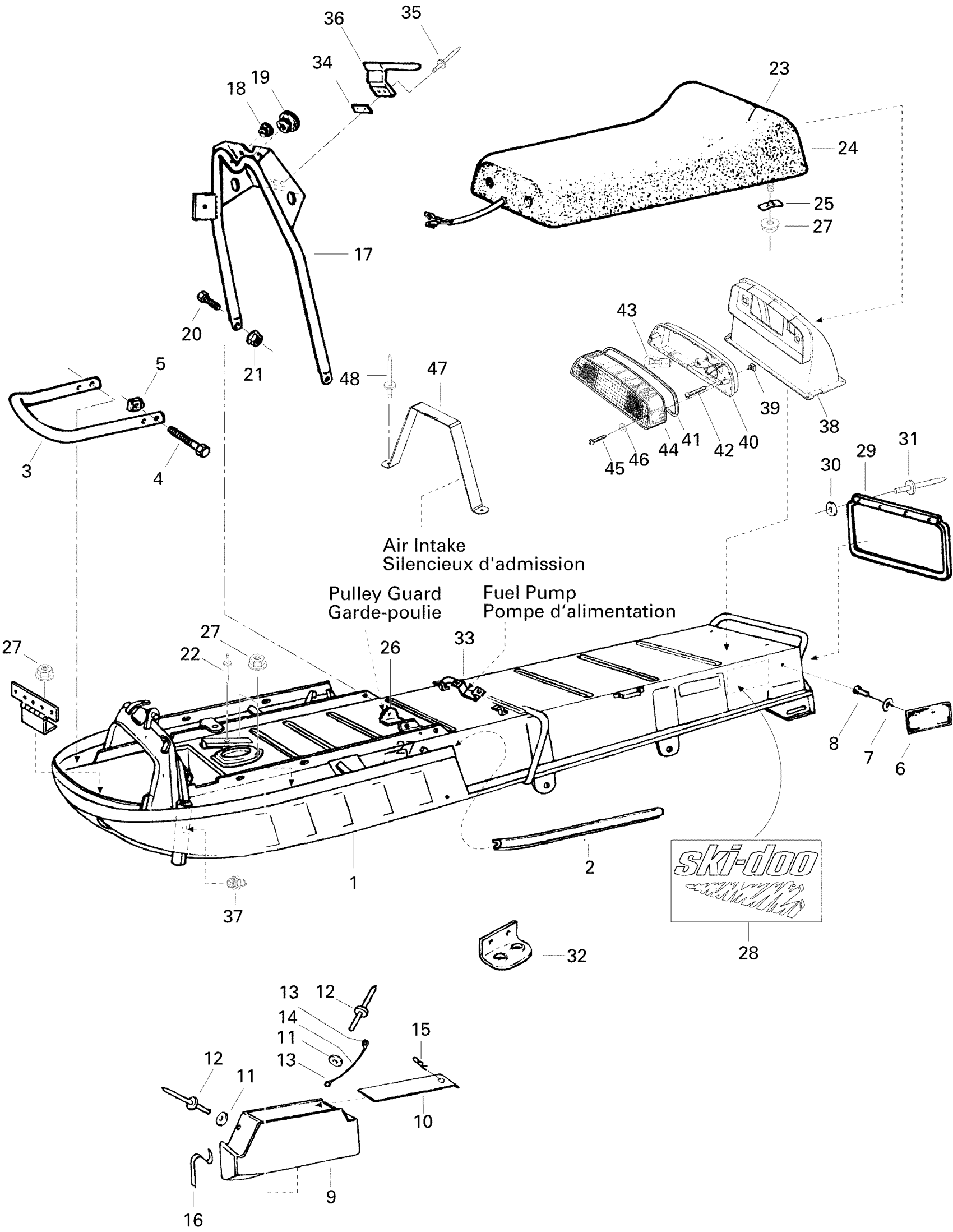

Ski-Doo Elan 247, 1996 09- Frame Diagram
#
1
Frame (Bogie)
580599600
Unavailable
2
Body Moulding
414083300
Unavailable
3
Front Handle
517053300
Unavailable
6
REFLECTOR, RED - Call your local BRP dealership
414510100
Unavailable
7
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership
224151101
Unavailable
8
Phillips Screw M5 x 8
222850865
Unavailable
9
Tool Box Ass’y | Includes 9 to 15
580136400
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
13
Terminal Ring
561502800
Unavailable
14
Wire
414407400
Unavailable
15
Hair Pin
414108300
Unavailable
16
Spring Clip
414170000
Unavailable
17
Upper Column
506114900
Unavailable
18
Grommet
572176200
Unavailable
19
Grommet
570179400
Unavailable
20
Hex. Screw 1/4-20 x 3/4
305100100
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
23
Formed Foam Seat
414551000
Unavailable
24
Seat Cover (Leatherette)
414325200
Unavailable
26
Pulley Guard Support
518057800
Unavailable
28
LH Frame Decal
414918900
Unavailable
RH Frame Decal
414919000
Unavailable
29
Snow Guard
572475700
Unavailable
32
Spark Plug Support
517204000
Unavailable
33
Fuel Pump Support
518094202
Unavailable
34
Plate
506107500
Unavailable
36
Latch
414147300
Unavailable
38
Taillamp Support
572370500
Unavailable
39
NUT-GRIP SPEED - Call your local BRP dealership
389902400
Unavailable
40
Taillamp Housing
414122100
Unavailable
41
Gasket
414129300
Unavailable
42
Slotted Screw 10-24 x 1 1/4
373406500
Unavailable
44
Lens
414122000
Unavailable
45
Slotted Self Tap. Screw 8 x 1"
365001700
Unavailable
46
Washer - Call your local BRP dealership
414516400
Unavailable
47
Air Intake Support
512053900
Unavailable
