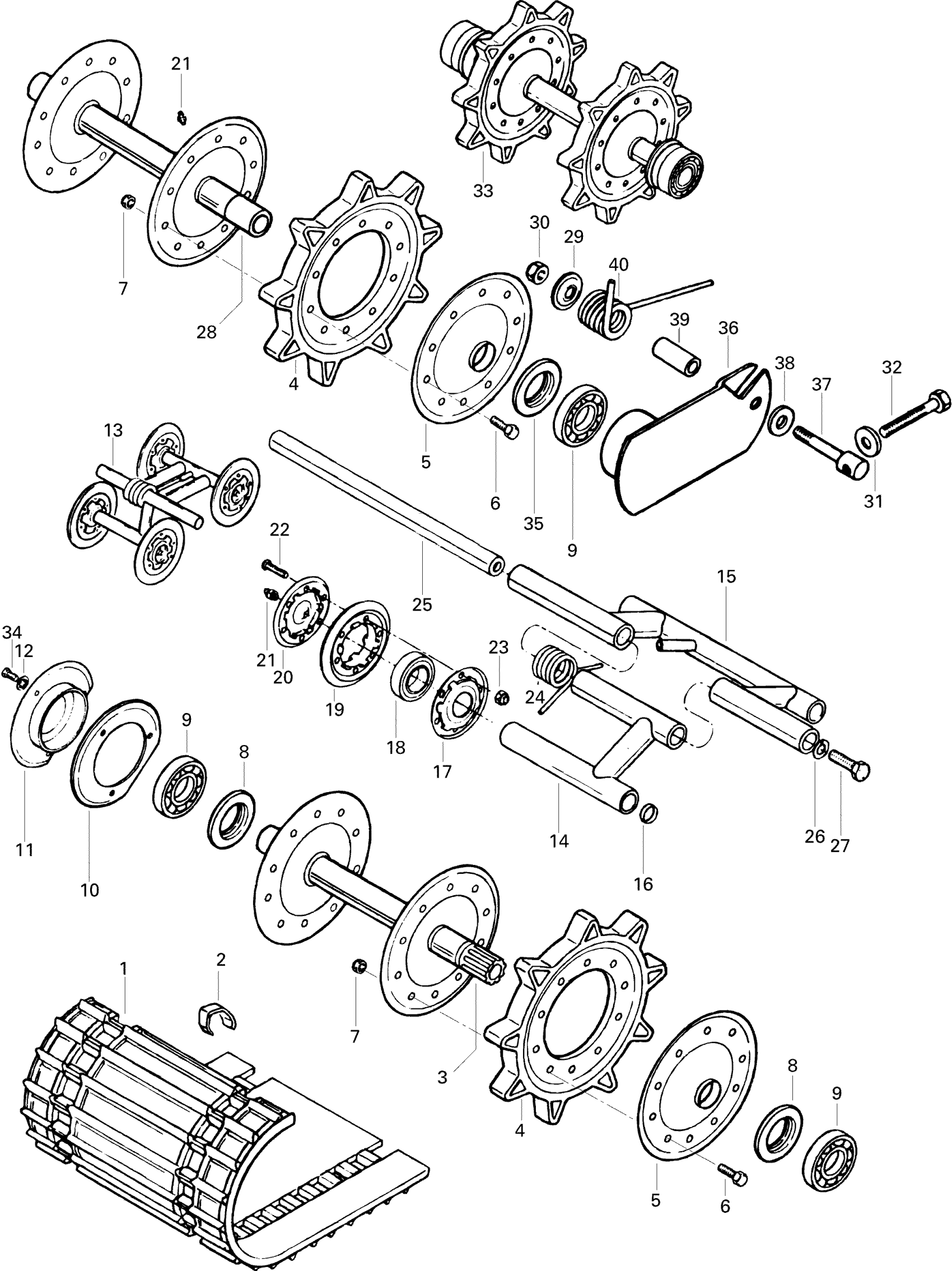

Ski-Doo Elan 247, 1996 08- Rear Suspension Diagram
#
1
Track with Insert
570206600
Unavailable
2
Insert
570000300
Unavailable
3
Drive Axle
501024000
Unavailable
4
Sprocket
572010200
Unavailable
5
Mobile Flange
501003600
Unavailable
6
Hex. Screw 1/4-20 x 3/4
305100100
Unavailable
7
Elastic Nut 1/4-20
398301900
Unavailable
10
Retainer Ring
501009500
Unavailable
11
End Bearing Housing
501008800
Unavailable
12
Internal Tooth Lock Washer 1/4
394601900
Unavailable
13
Wheel Ass’y (16, 22, 23)
580161500
Unavailable
14
Center Wheel Support
502003100
Unavailable
15
Side Wheel Support
502002500
Unavailable
16
Cap
502001100
Unavailable
17
Inner Flange
502001500
Unavailable
19
Wheel Tire
570020500
Unavailable
20
Outer Flange
502001600
Unavailable
21
Grease Fitting
408200100
Unavailable
22
Slotted Screw 10-24 x 3/4
373406300
Unavailable
23
Elastic Hex. Nut (europe) | Tundra R.
398311300
Unavailable
24
Spring
414257900
Unavailable
25
Cross Shaft
502000800
Unavailable
26
Lock Washer 5/16
399801200
Unavailable
27
Hex. Screw 5/16-24
309808900
Unavailable
28
Rear Hub
503021300
Unavailable
29
Retainer Washer
503001600
Unavailable
30
Elastic Nut 5/16-24
398202200
Unavailable
31
Washer 11/32 x 11/16 x .060
391302300
Unavailable
32
Hex. Screw 5/16-24 x 2"
305205100
Unavailable
33
Rear Hub Ass’y
580507000
Unavailable
34
Hex. Screw 1/4 - 20 X 1"
305100300
Unavailable
35
Seal
570030100
Unavailable
36
RH Link Plate
503006800
Unavailable
LH Link Plate
503006900
Unavailable
37
Adjusting Screw
503002800
Unavailable
38
Hardened Washer
503004400
Unavailable
39
Adjusting Sleeve
503002900
Unavailable
40
RH SPRING - Call your local BRP dealership
414258500
Unavailable
LH SPRING - Call your local BRP dealership
414258600
Unavailable
