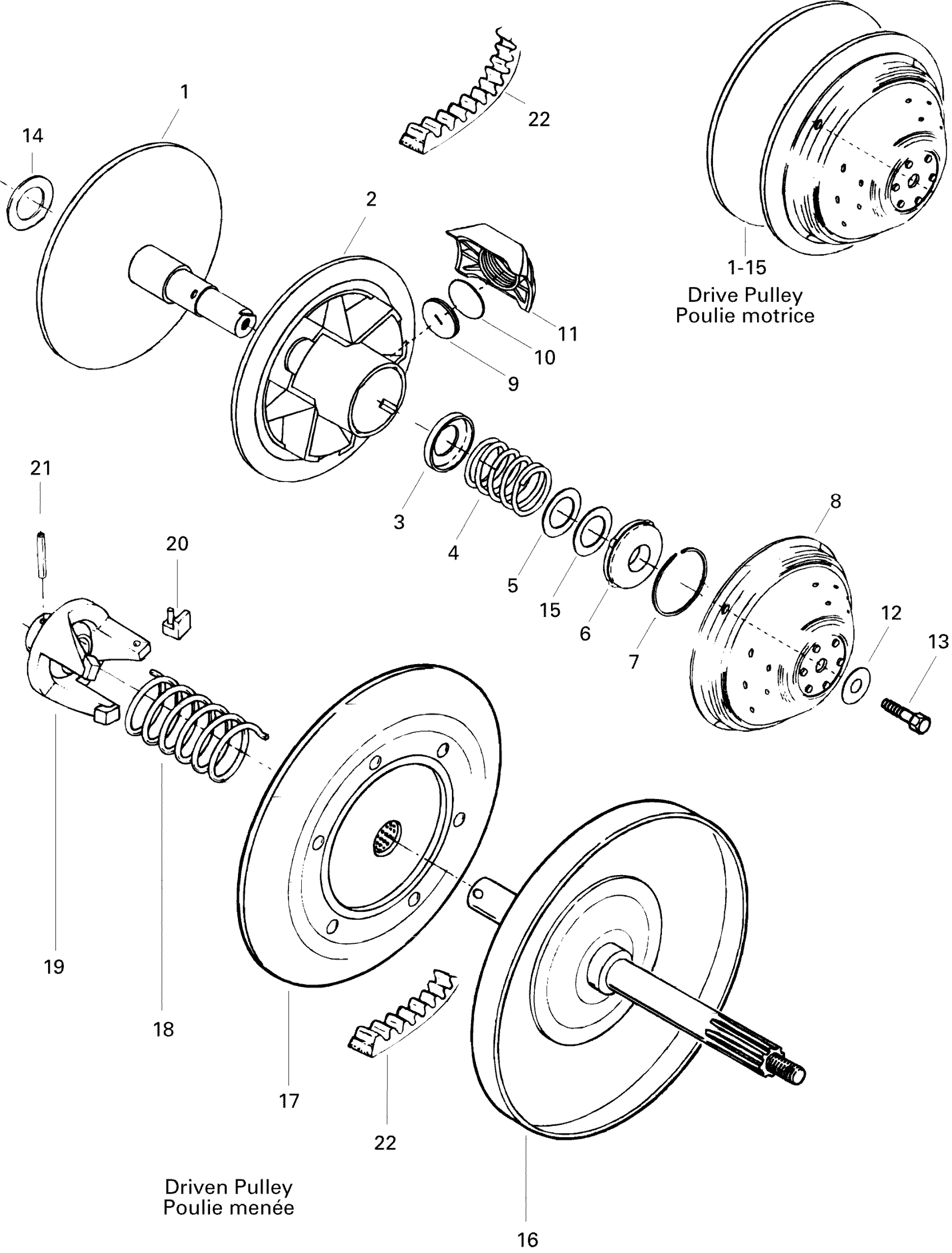

Ski-Doo Elan 247, 1996 Pulleys System Diagram
#
Description
Price
1
Drive Pulley Ass’y | Includes 1 to 15
417117800
Unavailable
1
Inner Half
417115300
Unavailable
2
Outer Half
417118200
Unavailable
3
Spring Seat
417117500
Unavailable
4
Spring
417115000
Unavailable
5
Shim | SUV 550
417114900
Unavailable
6
Plastic Pillar
417114800
Unavailable
7
Retaining Ring
417114700
Unavailable
8
Centrifugal Governor Cup
417117400
Unavailable
9
CAPSULE - Call your local BRP dealership | CDN, USA
417114500
Unavailable
10
ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA
417114400
Unavailable
11
Centrifugal Block
417114300
Unavailable
12
Washer
417114200
Unavailable
13
Hex. Screw
417114100
Unavailable
14
Shim (5 Max)
504082000
Unavailable
15
SHIM - Call your local BRP dealership | SUV 550
417117000
Unavailable
16
Inner Half Flange (Driven Pulley)
504111100
Unavailable
17
Outer Half Flange (Driven Pulley)
504106100
Unavailable
18
Release Spring
414096700
Unavailable
19
Outer Cam with Shoe | Includes 19 to 20
504105400
Unavailable
20
Cam Slider Shoe
414012600
Unavailable
21
Spirol Pin
372012300
Unavailable
