1996 Ski-Doo Elan 247 Rewind Starter Diagram

← All diagrams

Find the part on the Rewind Starter diagram for your 1996 Ski-Doo Elan 247, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

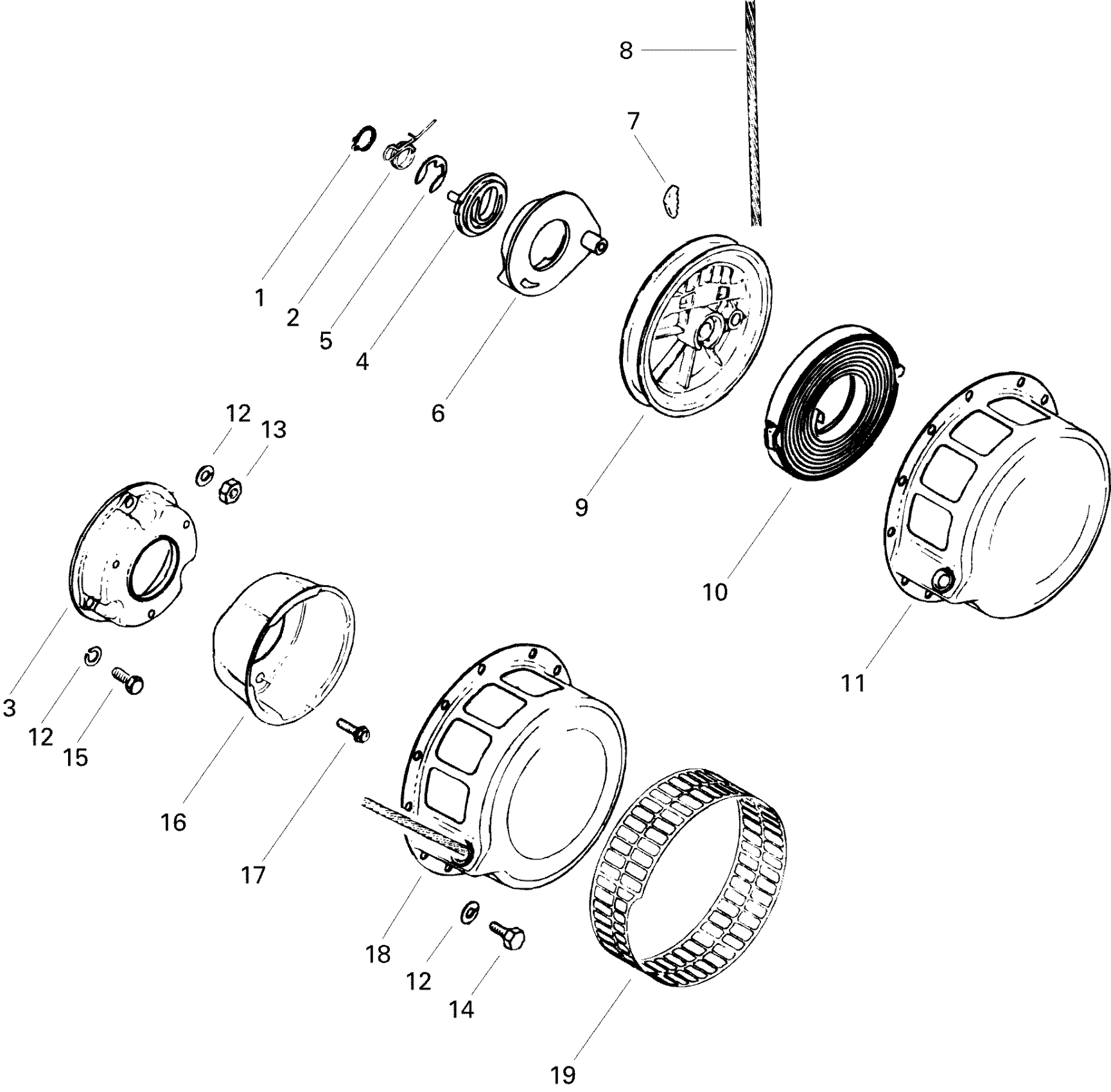

1996 Ski-Doo Elan 247 Rewind Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LOCK RING - Call your local BRP dealership

420945770

—
Out of stock

2

Pawl Spring

420938986

1
Out of stock

3

Pulley Spacer

420852330

—
Out of stock

4

PAWL LOCK - Call your local BRP dealership | Formula 500 LC.

420852301

—
Out of stock

5

CIRCLIP - Call your local BRP dealership

420845300

—
Out of stock

6

Pawl

420852296

1
Out of stock

7

Key Clamp

420852070

1
Out of stock

8

Was 412500100 Rope-Starter

219704403

1
Out of stock

9

Rope Sheave

420852283

1
Out of stock

10

Rewind Spring

420939078

—
Out of stock

11

Starter Housing

420910138

—
Out of stock

12

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

—
Out of stock

13

Hex. Nut M6

232061414

1
Out of stock

14

Hex. Screw M6 X 16

207161644

4
Out of stock

15

Not Available As Spare Part - Friction Washer

—
Out of stock

16

Starting Pulley

420852311

—
Out of stock

17

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

—
Out of stock

18

Rewind Starter

420994783

—
Out of stock

19

Protection Sleeve

420975560

—
Out of stock
