1996 Ski-Doo Elan 247 Engine Support And Muffler Diagram

← All diagrams

Find the part on the Engine Support And Muffler diagram for your 1996 Ski-Doo Elan 247, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

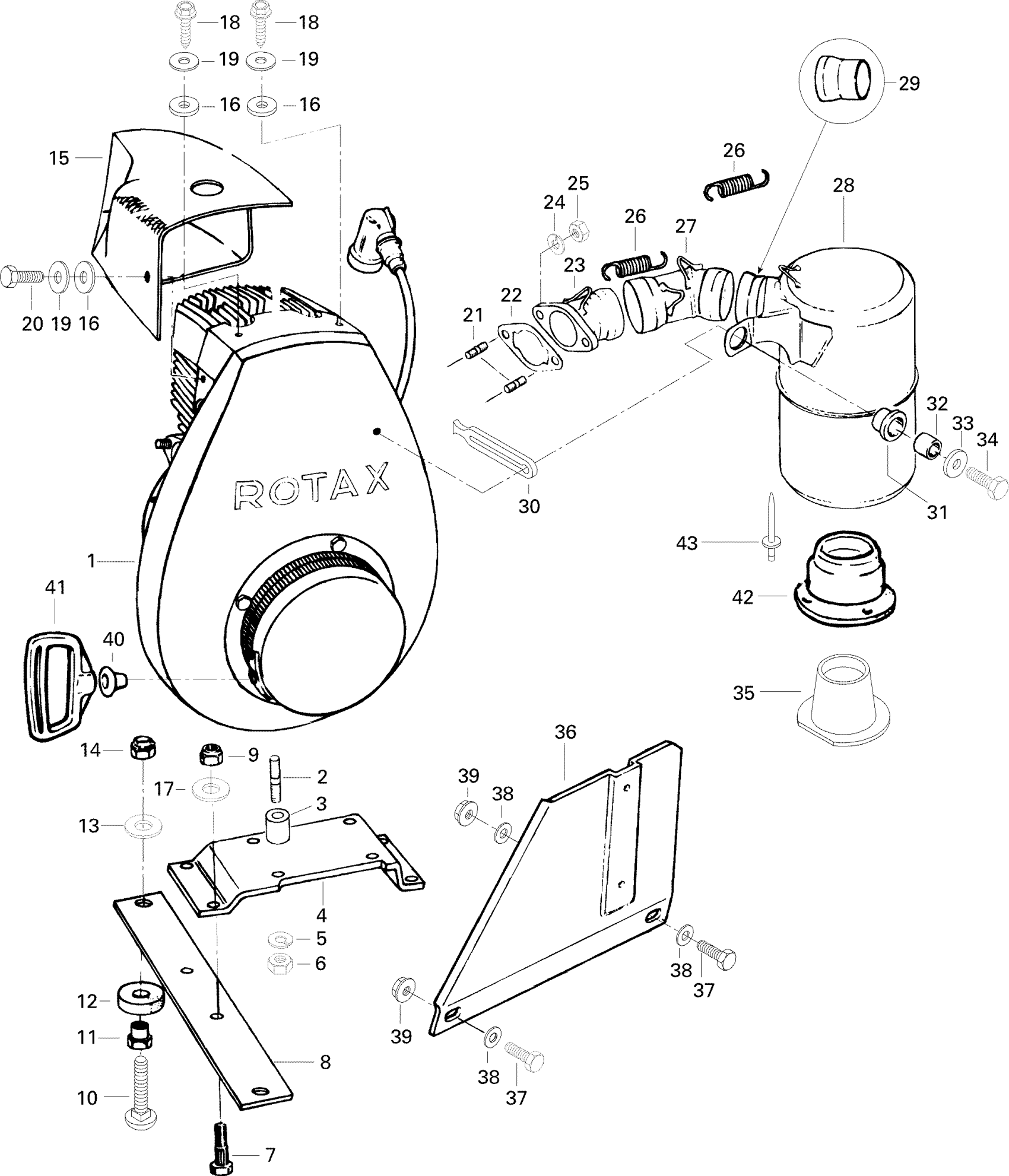

1996 Ski-Doo Elan 247 Engine Support And Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Rotax Engine «247»

400205600

—
Out of stock

2

STUD M10 - Call your local BRP dealership

420940704

—
Out of stock

3

Bushing M22

420947800

—
Out of stock

4

Engine Support

512010400

—
Out of stock

5

Lock Washer 10 mm

224701170

—
Out of stock

6

Hex. Nut M10 X 1.5

232006414

4
Out of stock

7

Knurled Screw 5/16-24 x 1"

309801200

—
Out of stock

8

Cross Support

512001200

—
Out of stock

9

Elastic Nut 5/16-24

398202200

—
Out of stock

10

Carriage Screw 3/8-24 x 1 1/2

360801000

—
Out of stock

11

Threaded Bushing

512001100

—
Out of stock

12

Vibration Damper

570120200

—
Out of stock

13

Washer 25/64 x 7/8

399908200

—
Out of stock

14

Elastic Nut 3/8-24

398202400

—
Out of stock

15

Air Duct

571120900

—
Out of stock

16

Rubber Spacer

414454400

—

$2.40

In stock

17

Hard Washer

512049800

—
Out of stock

18

2

$0.92

In stock

19

Flat Washer

250200082

3

$0.35

In stock

20

Hex. Screw 1/4-20 x 1/2

305100000

—
Out of stock

21

Exhaust Stud M8 x 19

420940065

—
Out of stock

22

Muffler Gasket

420830181

—
Out of stock

23

Exhaust Socket

420873265

—
Out of stock

24

Washer-Lock Din.128

420945832

2
Out of stock

25

Hex. Nut M8

232081414

2

$0.60

In stock

26

Spring

420938790

—
Out of stock

27

Manifold Tube

420873260

—
Out of stock

28

Muffler | Includes 28 to 29

420873244

—
Out of stock

29

Female Ball Joint

420879192

—
Out of stock

30

Windshield Latch

570023800

1

$3.58

In stock

31

Rubber Bushing

748004011

—
Out of stock

32

Bushing

512041000

—
Out of stock

33

Flat Washer 8 mm

234082410

1
Out of stock

34

Hex. Screw M8 X 25

207182544

1

$0.74

In stock

35

Exhaust Grommet

570028700

—
Out of stock

36

Heat Shield

580244100

—
Out of stock

37

Hex. Screw 1/4-20 x 3/4

305100100

—
Out of stock

38

—

$0.15

In stock

39

Not Available As Spare Part - Friction Washer

—
Out of stock

40

Rubber Buffer

570031900

—
Out of stock

41

Starter Grip

572120800

—
Out of stock

42

Exhaust Flange

518300100

—
Out of stock

43

Pop Rivet 3/16"

390402400

3

$0.25

In stock
