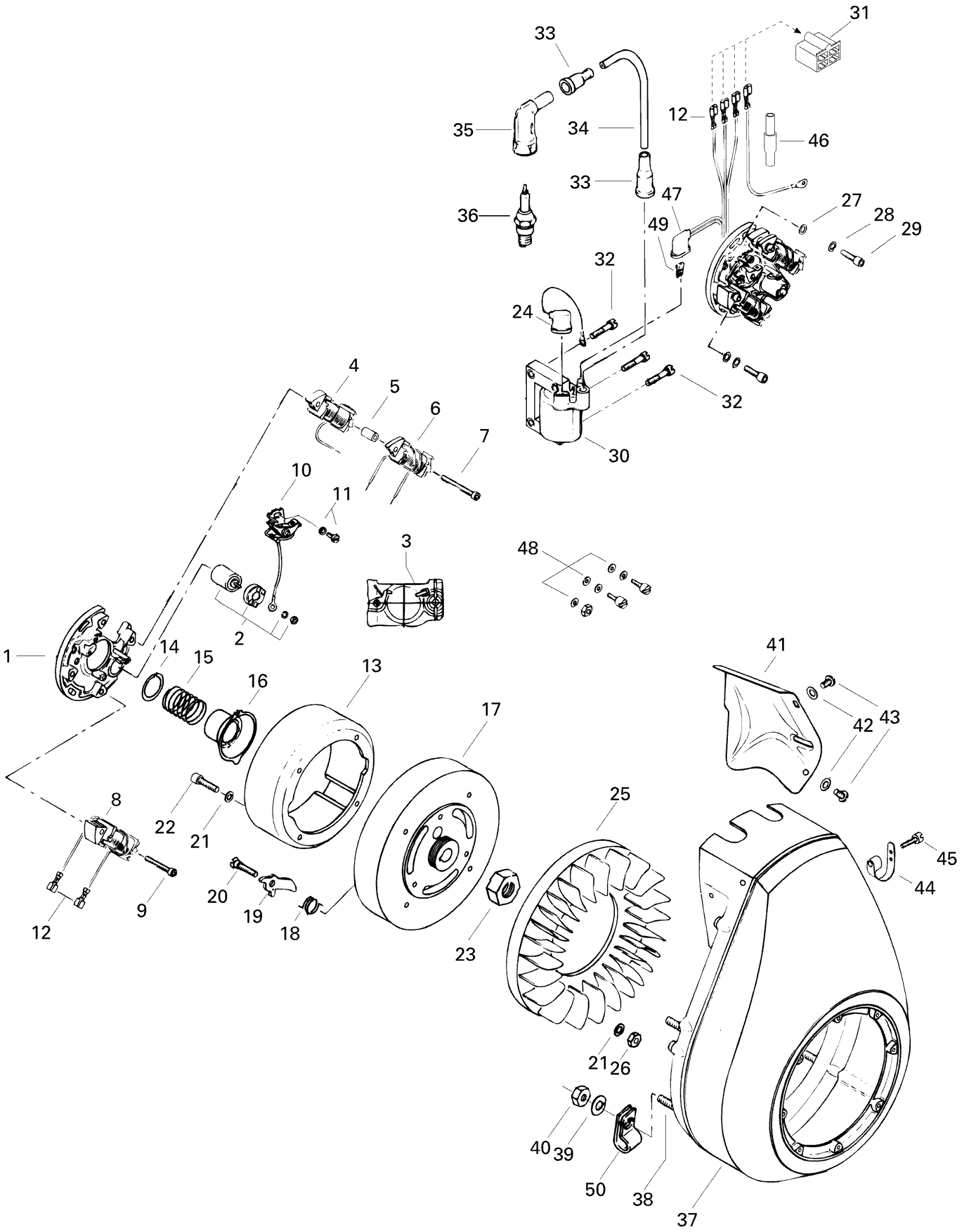

Ski-Doo Elan 247, 1996 03- Magneto Diagram
#
1
Armature Plate
420865910
Unavailable
2
Capacitor
410701100
Unavailable
3
Lubricating Wick
420265815
Unavailable
4
Generator Coil (Black Cable)
420865890
Unavailable
5
Bushing 11 mm
420847240
Unavailable
6
Brake Light Coil
420865900
Unavailable
7
Phillips Screw M5 x 32
420241415
Unavailable
8
Lighting Coil (with 2 Cables)
420865026
Unavailable
9
Phillips Screw M5 x 25
420640095
Unavailable
10
Breaker Point Set
410700400
Unavailable
11
Combined Screw M4 X 10
420241215
Unavailable
12
Female Terminal PACKARD
561503200
Unavailable
13
Magneto Ring
420983864
Unavailable
14
Spring Seat
420927460
Unavailable
15
Breaker Cam Spring
420938071
Unavailable
16
Breaker Cam
420985170
Unavailable
17
Magneto Housing Ass'y | Includes 17 to 20
420984680
Unavailable
17
Magneto Housing
420964524
Unavailable
18
Centrifugal Weight Spring
420938400
Unavailable
19
Centrifugal Weight
420964944
Unavailable
20
Bearing Screw M6 X 24.5
420941360
Unavailable
21
Lock Washer 6 mm
420945761
Unavailable
22
Hex. Socket Screw M6 x 22
420840400
Unavailable
23
HEX. NUT M18 - Call your local BRP dealership
420942220
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Fan
420964545
Unavailable
27
WASHER - Call your local BRP dealership
420827800
Unavailable
28
Lock Washer
420945750
Unavailable
29
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership
420840515
Unavailable
30
Ignition Coil
410913000
Unavailable
31
FEMALE HOUSING - Call your local BRP dealership
409204900
Unavailable
32
Cylindrical Slotted Screw M 5 X 22
420240978
Unavailable
33
Protection Cap | Skandic Wide Track. Skandic Super Wide Track.
420960550
Unavailable
34
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
35
SPARK PLUG PROTECTOR - Call your local BRP dealership | Skandic Wide Track LC.
414569200
Unavailable
36
Spark Plug NGK A6
414564700
Unavailable
37
Fan Cowl | Includes 37 to 38
420984592
Unavailable
38
Stud M8 x 23
420940360
Unavailable
Stud M8 x 34
420840300
Unavailable
41
Air Deflector
420975535
Unavailable
42
Not Available As Spare Part - Friction Washer
Unavailable
43
Flat Slotted Screw M5 x 8
420241091
Unavailable
44
Not Available As Spare Part - Friction Washer
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
46
Not Available As Spare Part - Friction Washer
Unavailable
47
Rubber Protector Cap
420960590
Unavailable
48
Magneto Parts Set
420964210
Unavailable
49
Connector Faston
420864260
Unavailable
