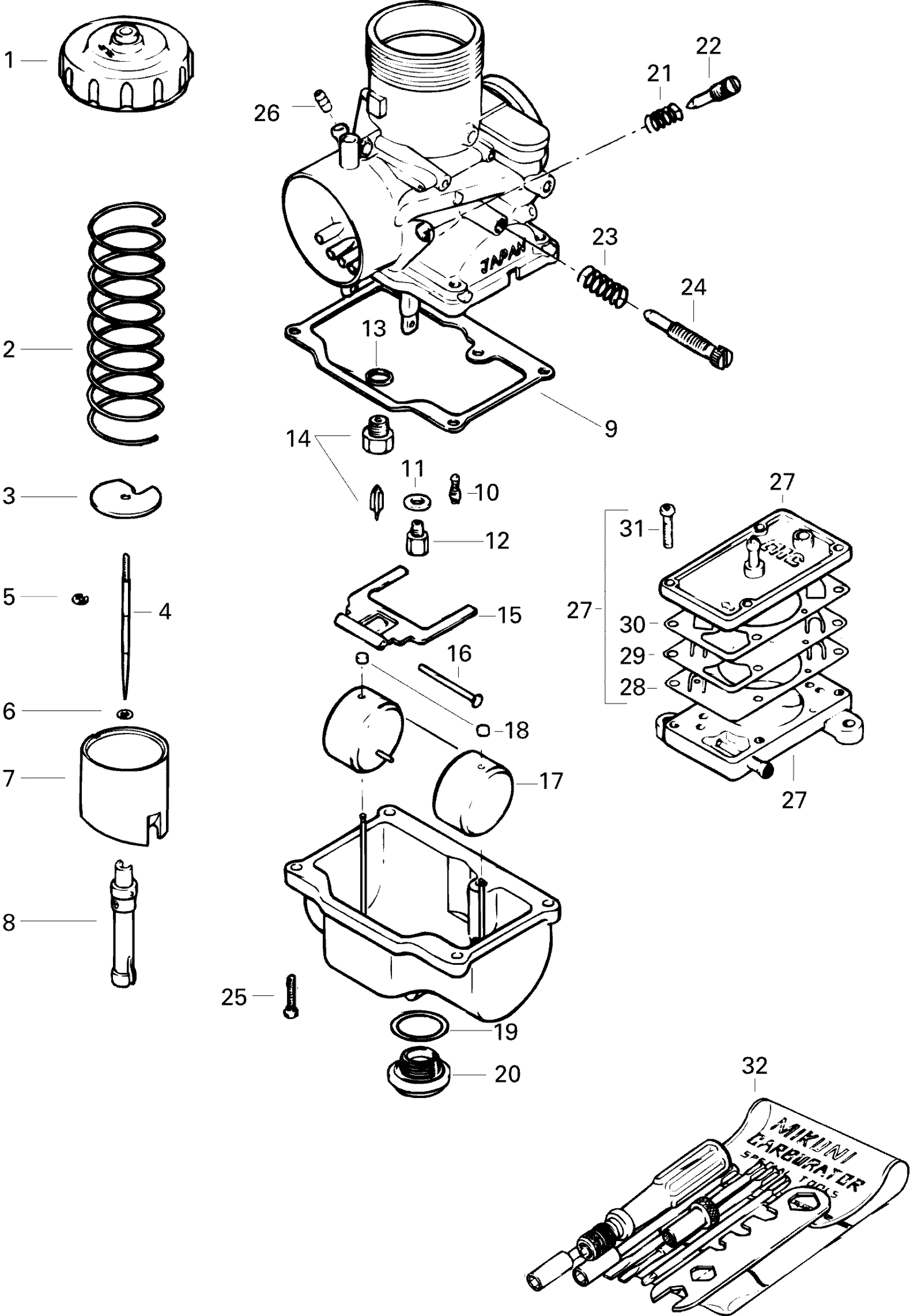

Ski-Doo Elan 247, 1996 02- Carburetor Diagram

#

Description
Price

1

Carburetor VM 28-470A | Includes 1 to 26

403112500

Unavailable

1

Mixing Chamber Top

404132600

Unavailable

2

Throttle Valve Spring

404118600

Unavailable

3

Needle Retainer Plate

404118800

Unavailable

4

Needle J8 6DP1

404118000

Unavailable

5

E-Ring

404102400

Unavailable

6

Packing

404117000

$3.29

7

Throttle Valve C.A. 2.0

404118300

Unavailable

8

Needle Jet

404116900

Unavailable

9

Gasket pan

404117900

Unavailable

10

Pilot Jet PJ 30 | Skandic Wide Track LC.

404107700

Unavailable

11

WASHER - Call your local BRP dealership

404102200

Unavailable

12

Main Jet MJ 160

404118200

$10.54

13

Washer | Skandic Super Wide Track.

404117600

Unavailable

14

Needle valve

404117700

Unavailable

15

Float Arm | Skandic Super Wide Track.

404117800

Unavailable

16

Lever Pin

404103300

$6.27

17

FLOAT - Call your local BRP dealership

404105400

Unavailable

18

Cap

404105800

$6.38

19

O-Ring

404107300

$9.06

20

Drain Plug Screw

404107400

$22.99

21

Spring

404101800

$4.25

22

Air Screw

404102300

$14.35

23

Spring

404101700

$4.14

24

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

25

Screw

404118500

Unavailable

26

NIPPLE - Call your local BRP dealership

404127600

Unavailable

27

Fuel Pump Ass’y | Includes 27 to 31

403800300

Unavailable

28

Membrane

404901800

Unavailable

29

Diaphragm

404901700

Unavailable

30

Packing (Cap)

404901600

Unavailable

31

Screw

404118500

Unavailable

32

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

33

High Altitude Kit (Not Shown)

861739900

Unavailable
