1973 Yamaha EL433B Track - Suspension Wheel Diagram

← All diagrams

Find the part on the Track - Suspension Wheel diagram for your 1973 Yamaha EL433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

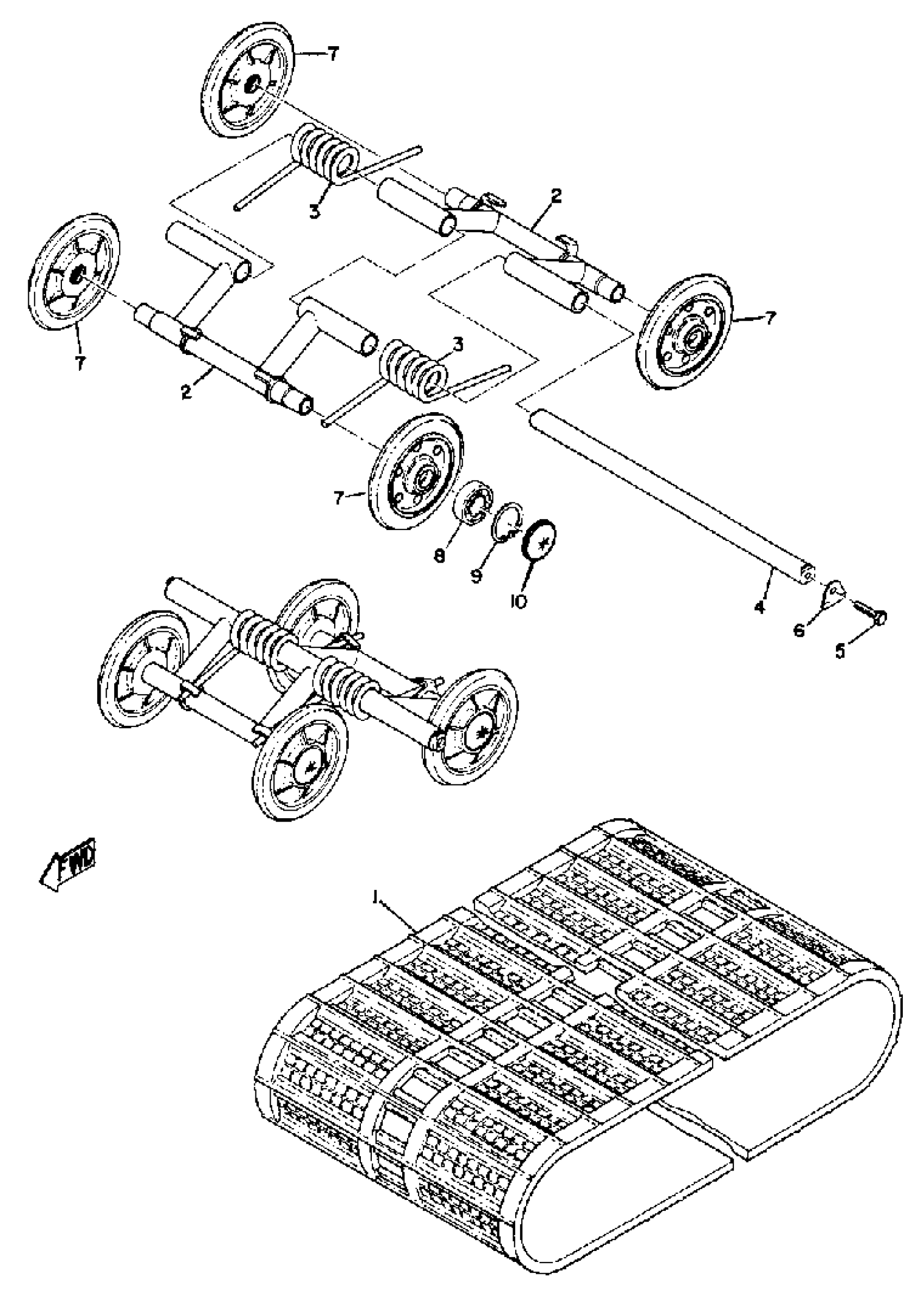

1973 Yamaha EL433B Track - Suspension Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY

(861-47110-00-00)

1
Out of stock

1

UNAVAILABLE IN PRICE BOOK

861-47110-01-00

1
Out of stock

2

ARM, PIVOT 1

(806-47331-01-00)

1
Out of stock

3

SPRING, TORSION

90508-70100-00

1
Out of stock

3

SPRING, TORSION

90508-70101-00

1
Out of stock

4

SHAFT, PIVOT

(802-47337-00-00)

1
Out of stock

5

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

6

WASHER, LOCK

(806-47347-00-00)

1
Out of stock

7

SUSPENSION WHL ASSEMBLY (810-47310-00)

8A9-47310-01-00

1
Out of stock
