- EL433B 1973
TRACK DRIVE

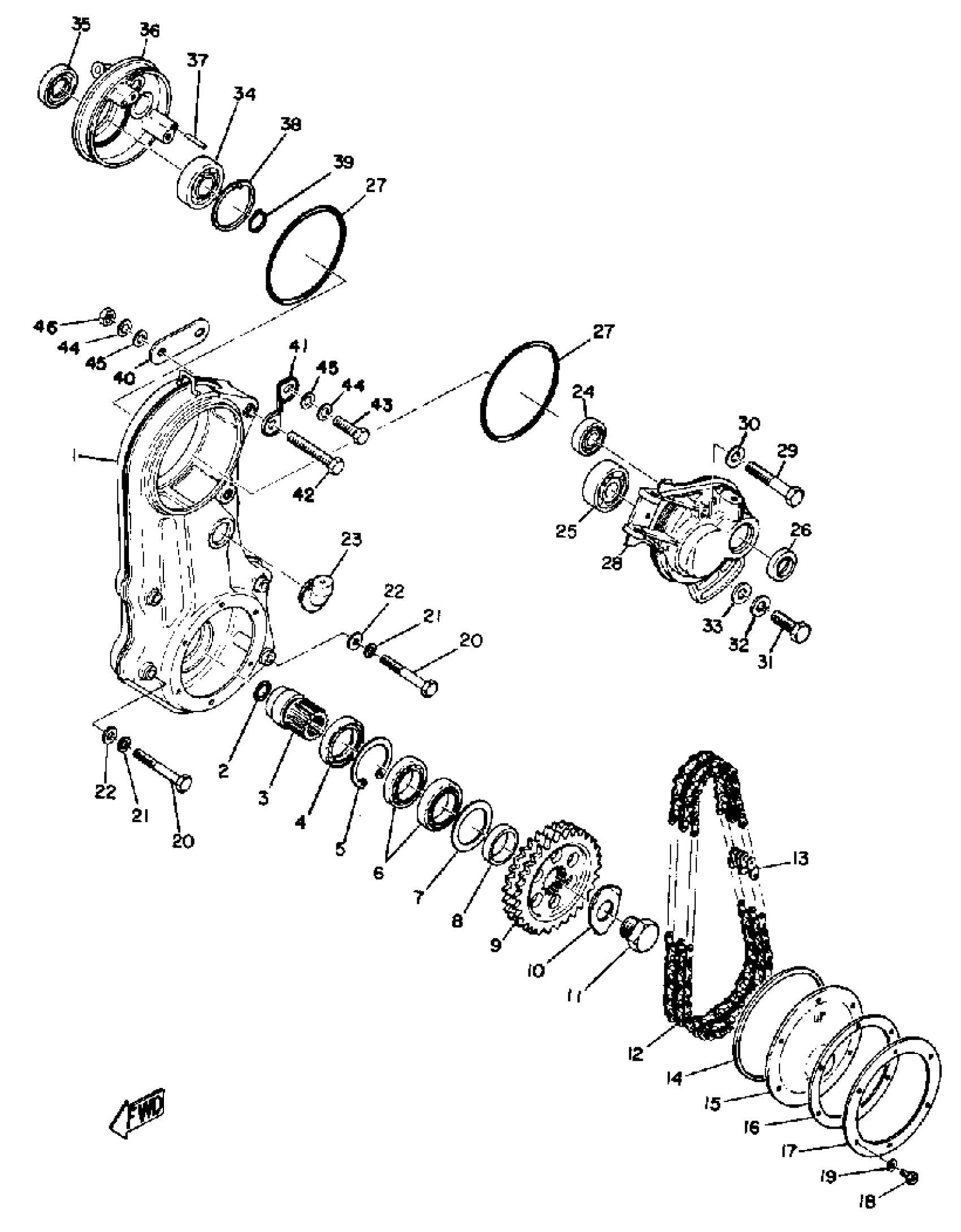

1973 Yamaha EL433B Track Drive Diagram
Find the part on the Track Drive diagram for your 1973 Yamaha EL433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HOUSING, CHAIN
(843-47541-00-00)
3
JOURNAL 1
(841-47571-00-00)
4
OIL SEAL, SD-TYPE
93102-40080-00
5
CIRCLIP, R-TYPE
93420-55028-00
6
BEARING
93306-90702-00
7
SPACER
90560-35050-00
8
COLLAR
90387-35206-00
9
SPROCKET, CHN DRVN
(802-47548-40-00)
9
SPROCKET, CHN DRVN
802-47548-50-00
9
SPROCKET, CHN DRVN
(802-47548-60-00)
10
WASHER, LOCK
90215-24029-00
11
BOLT
90109-24203-00
12
CHAIN
94804-25068-00
13
. JOINT CHAIN
94904-25001-00
14
RING, HOUSING
(806-47558-00-00)
15
CAP, HOUSING
(821-47543-00-00)
16
GASKET
821-47544-00-00
17
PLATE
(821-47591-00-00)
19
WASHER, SEAL
90210-05005-00
23
CAP 2
(810-47559-00-00)
27
O-RING
93211-13109-00
28
HOUSING, SEC SHAFT
(8A4-47561-00-00)
35
OIL SEAL, SD-TYPE
93102-35056-00
36
HOUSING, SEC SHAFT
838-47562-01-00
37
PIN, DOWEL(4SS)
93604-18251-00
40
STAY 1
(841-47565-00-00)
41
STAY 2
(841-47566-00-00)
