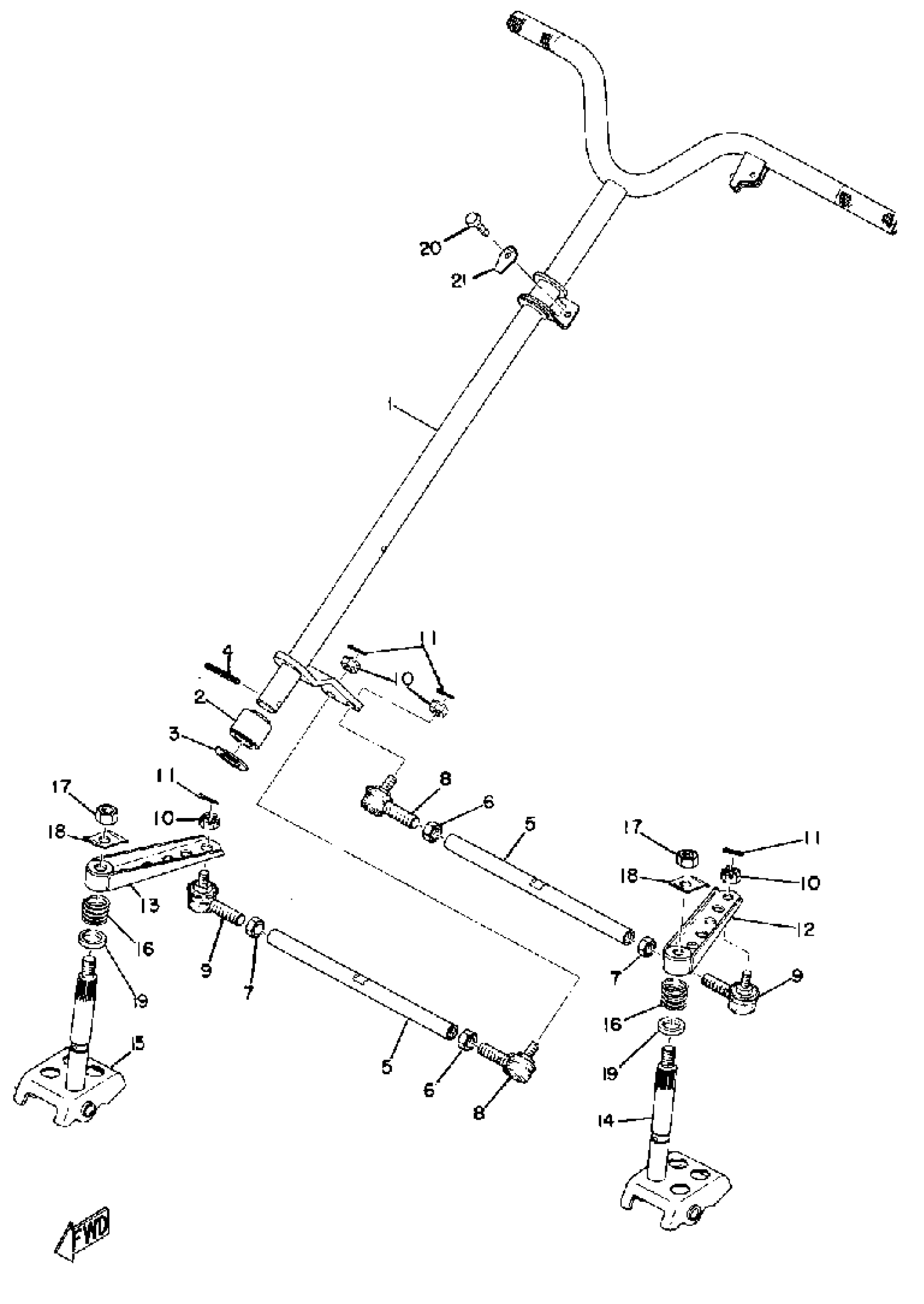

Yamaha EL433B 1973 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

(841-23811-01-00)

Unavailable

2

BEARING, STRG LOWER

(806-23875-00-00)

Unavailable

3

BEARING, STEERING

(841-23812-01-00)

Unavailable

4

PIN, SPRING

91609-60045-00

Unavailable

5

ROD, STEERING RELAY

(821-23821-00-00)

Unavailable

6

NUT, HEXAGON SMALL

95317-12700-00

$8.49

7

NUT (821-23834-00)

90170-12054-00

$8.49

8

JOINT, UNIVERSAL 1

(821-23841-90-00)

Unavailable

9

JOINT, UNIVERSAL 2

(821-23845-90-00)

Unavailable

10

NUT, CASTLE

90171-10002-00

Unavailable

11

PIN, COTTER(6L5)

91490-25030-00

$3.77

12

ARM, OUTSIDE 1

(841-23851-01-00)

Unavailable

13

ARM, OUTSIDE 2

841-23852-01-00

Unavailable

14

COLUMN, SKI 1

(841-23853-01-00)

Unavailable

15

COLUMN, SKI 2

841-23854-01-00

Unavailable

16

SPRING, COMPRESSION

90501-35154-00

Unavailable

17

NUT, HEXAGON

95337-12600-00

Unavailable

18

WASHER, LOCK

90215-12037-00

Unavailable

19

SPACER

90560-20037-00

Unavailable

20

BOLT, HEXAGON

97017-06020-00

Unavailable

21

WASHER, LOCK

(90215-06038-00)

Unavailable
