1973 Yamaha EL433B Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1973 Yamaha EL433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

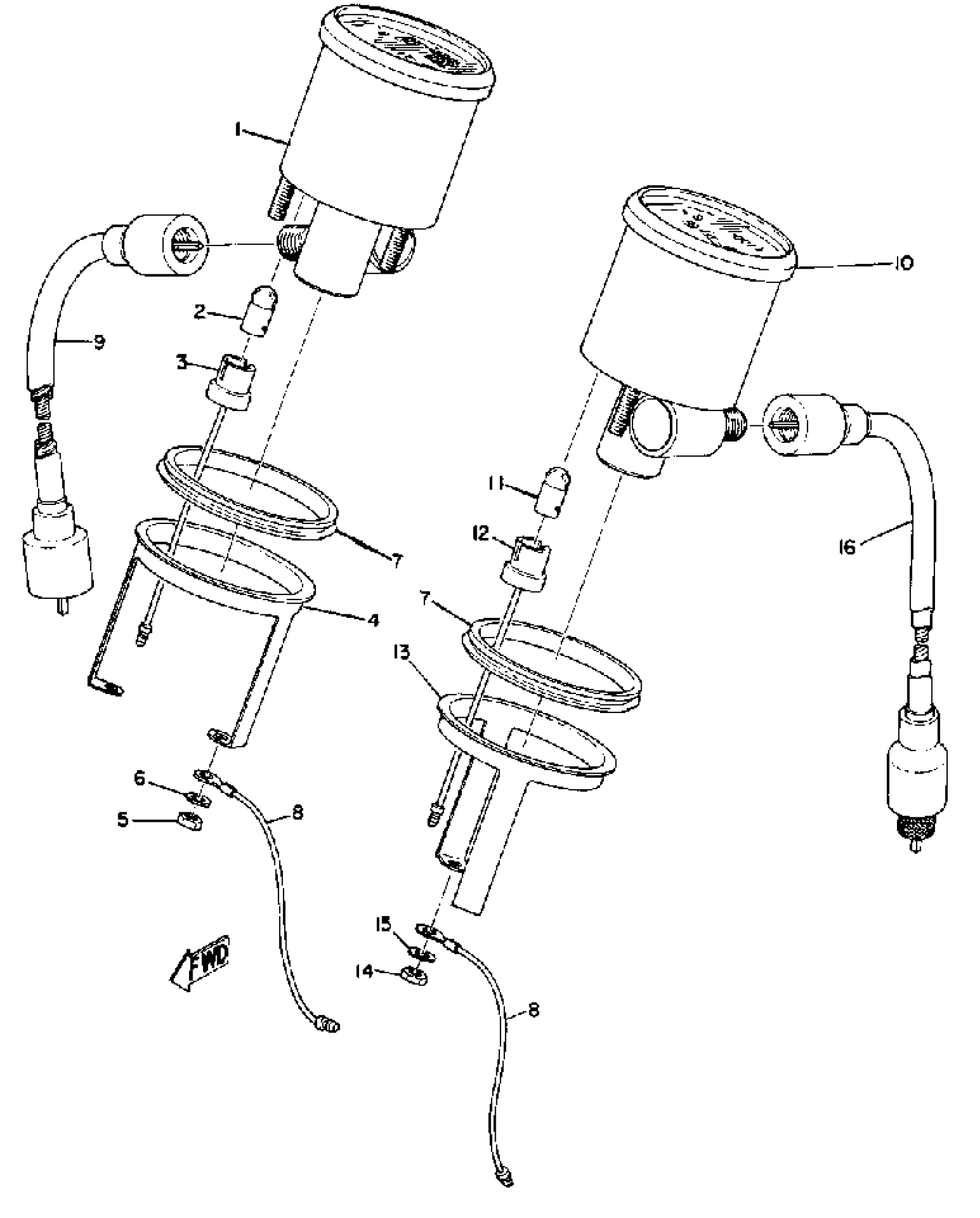

1973 Yamaha EL433B Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(839-83510-40-00)

1
Out of stock

2

BULB

256-84347-00-00

1
Out of stock

3

SOCKET, METER

(839-83536-40-00)

1
Out of stock

4

PLATE, FITTING

(839-83514-40-00)

1
Out of stock

5

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

GROMMET

(90480-58085-00)

1
Out of stock

8

CASE, SPDMTR UPPER

(842-83571-00-00)

1
Out of stock

9

SPEEDOMETER CABLE

839-83550-01-00

1
Out of stock

10

TACHOMETER ASSEMBLY

(839-83540-00-00)

1
Out of stock

11

BULB

256-84347-00-00

1
Out of stock

12

SOCKET, METER

(839-83536-40-00)

1
Out of stock

13

PLATE, FITTING

(839-83514-40-00)

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

16

TACHOMETER CABLE (843-83560-00)

843-83560-01-00

1
Out of stock
