1973 Yamaha EL433B Speedometer Gear Unit Diagram

← All diagrams

Find the part on the Speedometer Gear Unit diagram for your 1973 Yamaha EL433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

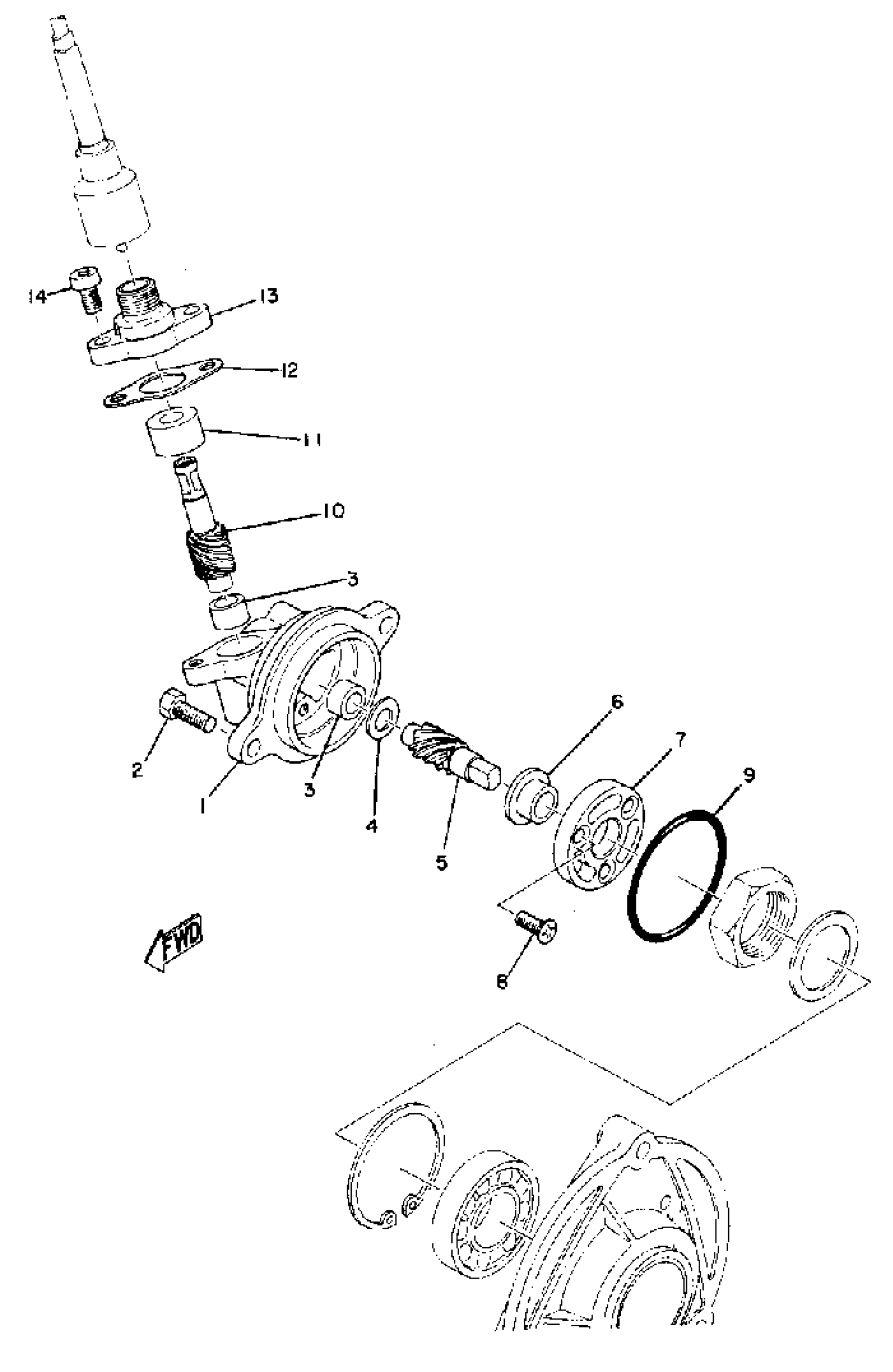

1973 Yamaha EL433B Speedometer Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING

8E6-47711-10-00

1
Out of stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

UNAVAILABLE IN PRICE BOOK

90380-08020-00

1
Out of stock

4

SHIM

810-47717-10-00

1
Out of stock

5

GEAR, DRIVE

810-47731-11-00

1
Out of stock

6

BUSH, SOLID

90381-10003-00

1
Out of stock

7

JOURNAL

853-47712-10-00

1
Out of stock

8

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

9

O-RING

93210-43141-00

1
Out of stock

10

GEAR, DRIVEN (810-47741-10)

810-47741-11-00

1
Out of stock

11

BUSH, SOLID

90380-08005-00

1
Out of stock

12

GASKET

810-47727-11-00

1
Out of stock

13

COVER, METER HOUSING

8E3-47721-10-00

—

$18.34

In stock

14

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock
