CRANK - PISTON

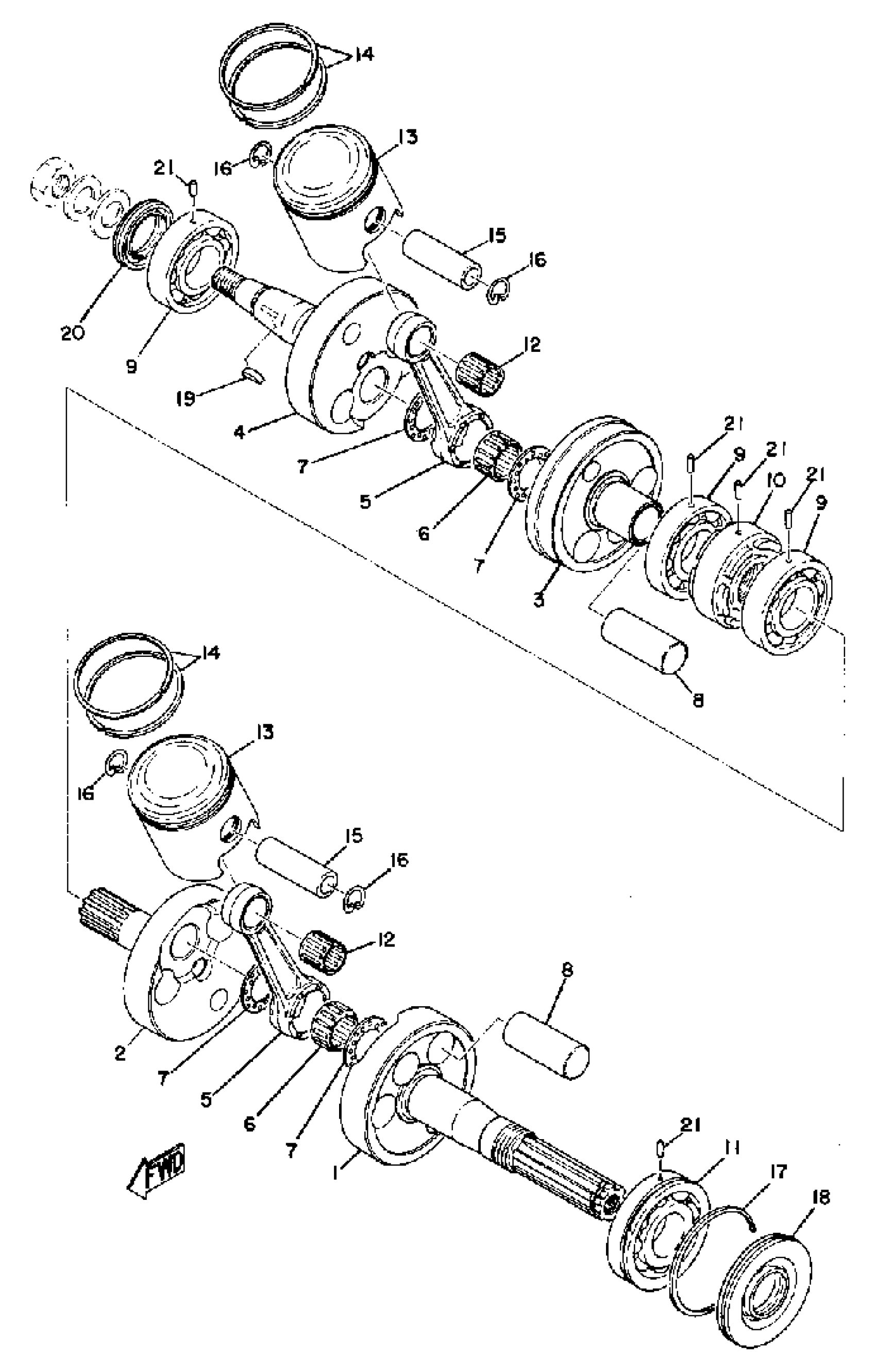

Yamaha EL433B 1973 CRANK - PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSEMBLY
838-11400-00-00
Unavailable
1
CRANK 1
(838-11412-00-00)
Unavailable
2
CRANK 2
(821-11422-01-00)
Unavailable
3
CRANK 3
(821-11432-01-00)
Unavailable
4
CRANK 4
(821-11442-00-00)
Unavailable
5
. ROD, CONNECTING (838-11651-00)
8A7-11651-00-00
Unavailable
6
BEARING
93310-424E8-00
Unavailable
7
WASHER (152-11685-00)
90209-24073-00
$14.99
8
. PIN, CRANK 1
857-11681-00-00
Unavailable
9
BEARING(8V0)
93306-20633-00
$76.99
10
. SEAL, LABYRINTH 1
811-11515-00-00
Unavailable
11
. BEARING
93306-30603-00
Unavailable
12
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
$38.99
13
PISTON STD
819-11631-01-96
Unavailable
13
PISTON 1 O/S 0.25 (819-11635-00)
819-11635-01-00
Unavailable
13
PISTON 2 O/S 0.50 (819-11636-00)
819-11636-01-00
Unavailable
14
PISTON RINGSET STD
818-11601-00-00
Unavailable
14
RING, PISTON 1ST
(818-11611-10-00)
Unavailable
14
RING, PISTON 2ND
(818-11611-20-00)
Unavailable
15
PIN, PISTON
818-11633-00-00
Unavailable
16
CLIP 6041163400
93450-20026-00
Unavailable
17
CIRCLIP, OUTER
93440-78011-00
Unavailable
18
OIL SEAL, SW-TYPE
93103-32054-00
Unavailable
19
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
20
OIL SEAL(83R)
93103-32156-00
Unavailable
21
PIN,DOWEL (168)
93604-12037-00
Unavailable
