2012 Kawasaki Edge R Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

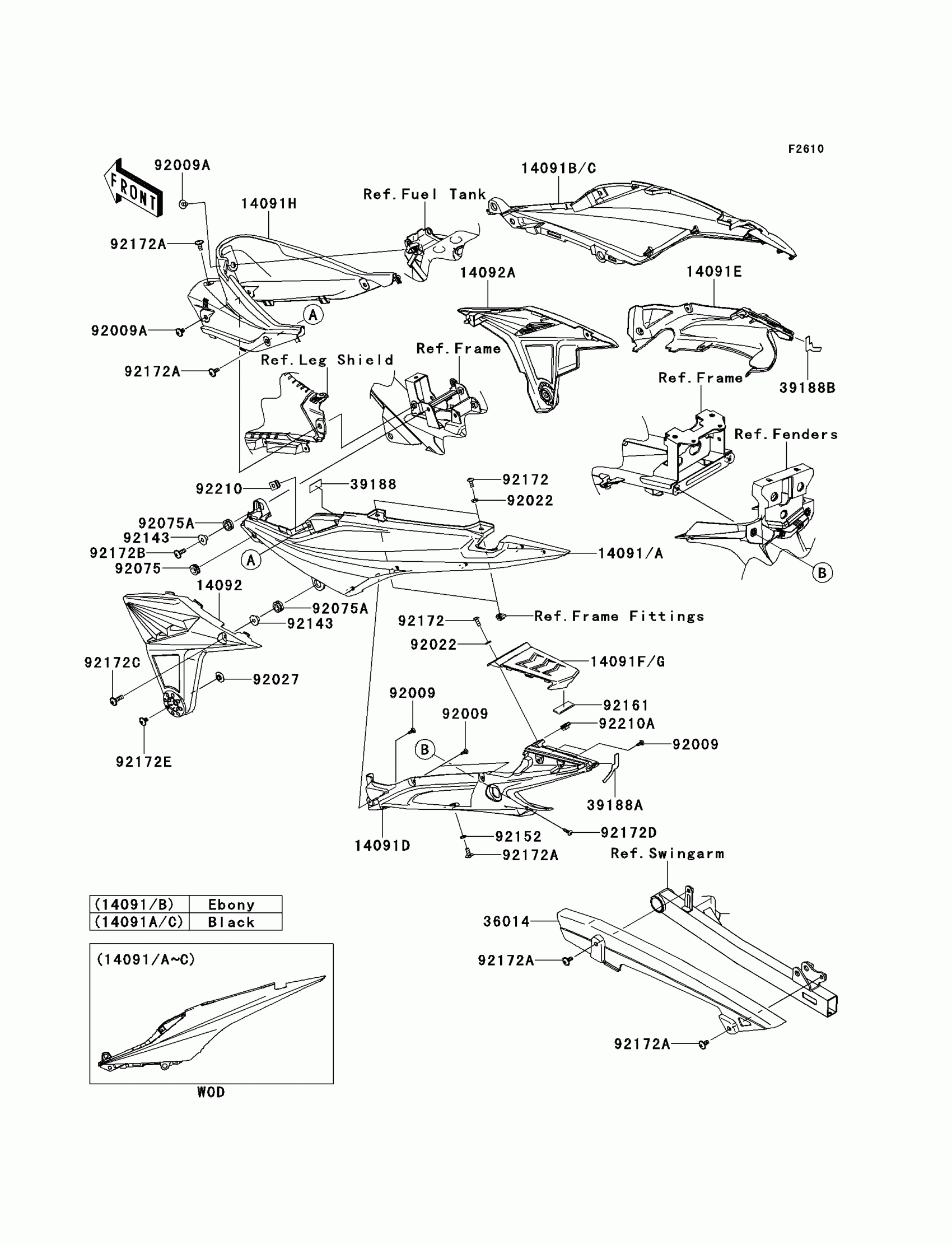

2012 Kawasaki Edge R Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,TAIL,UPP,LH,EBONY

14091-1778-20A

1
Out of stock

14091B

COVER,TAIL,UPP,RH,EBONY

14091-1779-20A

1
Out of stock

14091D

1

$11.68

In stock

14091E

1

$11.68

In stock

14091F

COVER,TAIL,CNT,EBONY

14091-1782-20A

1
Out of stock

14091H

COVER,TANK,F.BLACK

14091-1786-6Z

1

$12.98

In stock

14092

COVER,PIVOT,LH,F.BLACK

14092-0169-6Z

1

$8.66

In stock

14092A

COVER,PIVOT,RH,F.BLACK

14092-0170-6Z

1

$8.66

In stock

36014

CASE-CHAIN

36014-0001

1

$20.69

In stock

39188

TAPE

39188-0022

1

$0.85

In stock

39188A

TAPE

39188-0023

1

$0.85

In stock

39188B

TAPE

39188-0024

1

$0.85

In stock

92009

SCREW,TAPPING,4X12,BLACK

92009-1142

1
Out of stock

92009A

SCREW,6X10

92009-1729

1
Out of stock

92022

1

$3.12

In stock

92027

COLLAR

92027-1757

1

$3.72

In stock

92075

DAMPER

92075-1629

1

$3.97

In stock

92075A

DAMPER

92075-1634

1

$3.72

In stock

92143

COLLAR,L=9.6

92143-1016

1

$4.93

In stock

92152

COLLAR,6.4X8X3.3

92152-0813

1

$0.85

In stock

92161

DAMPER,40X15X3

92161-0983

1

$0.61

In stock

92172

SCREW

92172-0016

1

$1.88

In stock

92172A

SCREW,6X14

92172-0055

1

$0.44

In stock

92172B

SCREW,6X18

92172-0192

1

$10.83

In stock

92172C

SCREW,6X22

92172-0373

1

$1.47

In stock

92172D

SCREW,5X18

92172-0443

1

$0.61

In stock

92172E

SCREW,6X10

92172-0491

1

$0.85

In stock

92210

NUT,6MM

92210-0218

1
Out of stock

92210A

NUT,PLATE,5MM

92210-0262

1
Out of stock
