2012 Kawasaki Edge R Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2012 Kawasaki Edge R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

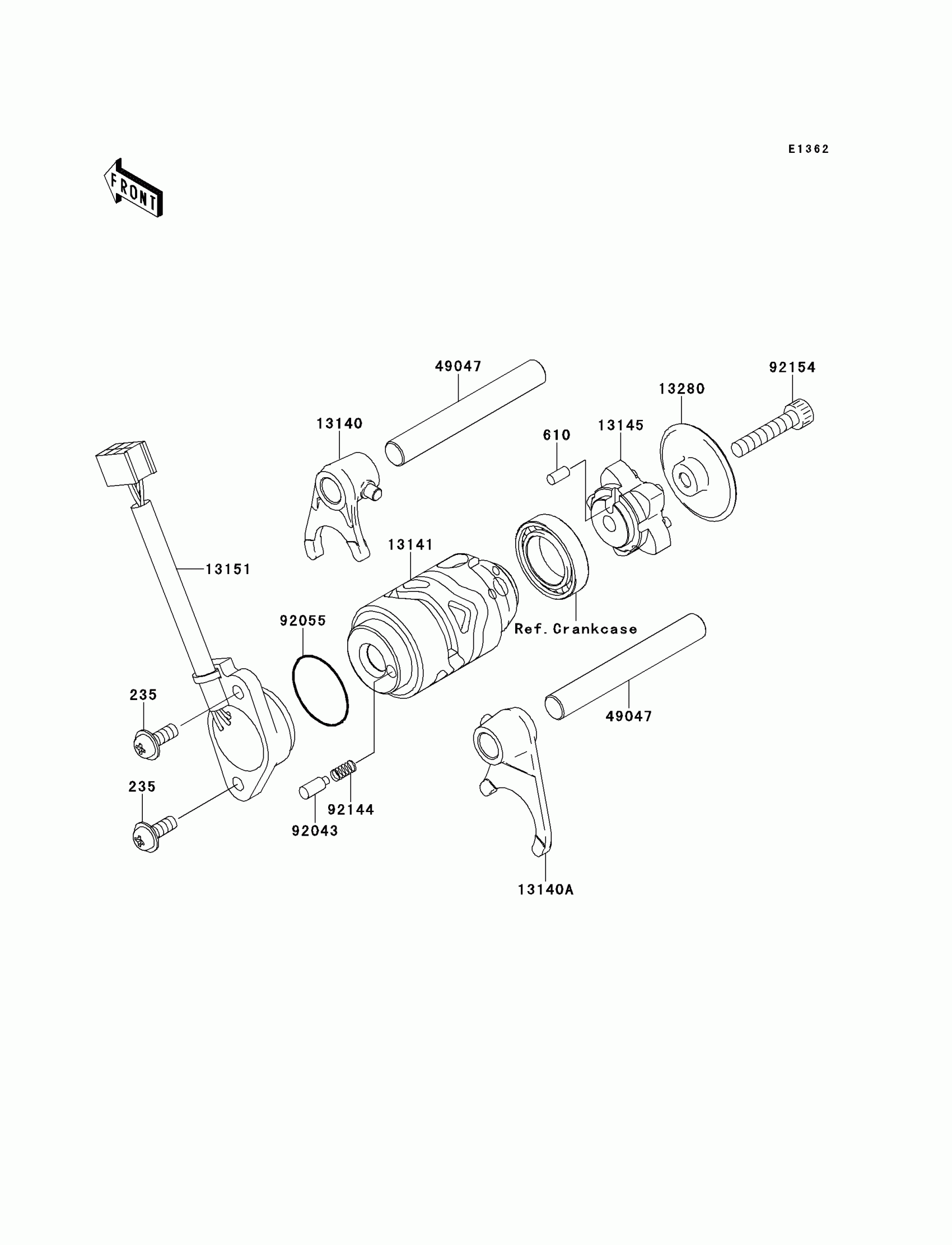

2012 Kawasaki Edge R Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

235

1

$3.49

In stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock

13140

FORK-SHIFT

13140-0626

1

$36.82

In stock

13140A

FORK-SHIFT

13140-0627

1

$95.44

In stock

13141

DRUM-CHANGE

13141-1222

1

$51.26

In stock

13145

CAM-CHANGE DRUM

13145-1093

1

$10.82

In stock

13151

SWITCH-COMP,NEUTRAL

13151-0018

1

$69.49

In stock

13280

HOLDER

13280-1228

1

$4.71

In stock

49047

ROD-SHIFT

49047-1058

1

$10.54

In stock

92043

PIN

92043-0718

1

$5.27

In stock

92055

RING-O,27.7X2.4

92055-0717

1

$5.27

In stock

92144

SPRING

92144-1245

1

$3.39

In stock

92154

BOLT,SOCKET,6X30

92154-0388

1

$2.68

In stock
