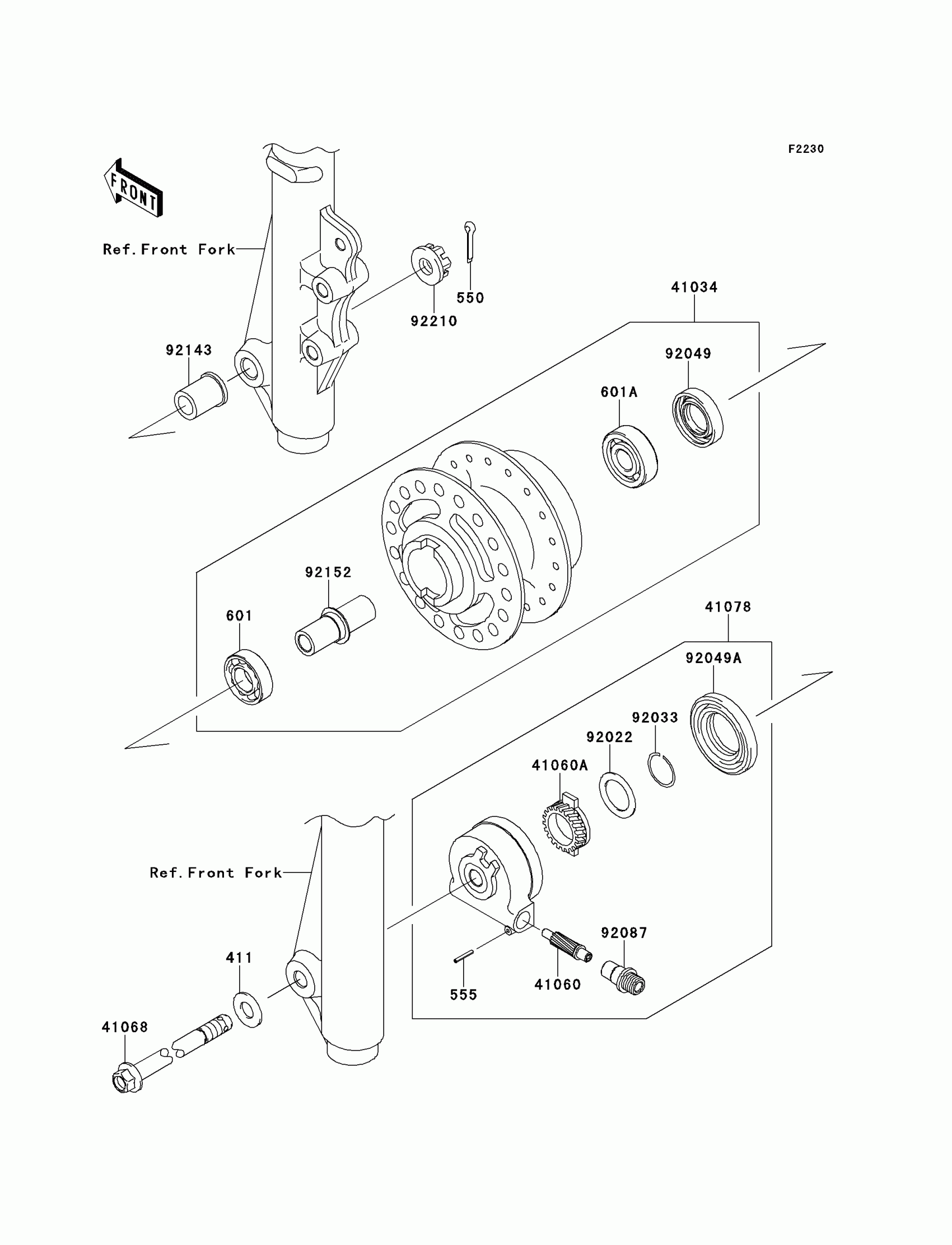

Kawasaki EDGE R Front Hub(RCF) Diagram

Description

Price

411

WASHER-PLAIN,10MM

411AA1000

$0.96

550

PIN-COTTER,2.5X25

550AA2525

$1.36

555

PIN-SPRING

555A0214

$0.75

601

BEARING-BALL,#6200UG

601B6200UG

Unavailable

601A

BEARING-BALL

601B6300UG

$13.03

41034

DRUM-ASSY,FRONT BRAKE

41034-0553

Unavailable

41060

GEAR-METER SCREW,10T

41060-0571

$21.80

41060A

GEAR-METER SCREW,25T

41060-0572

$21.80

41068

AXLE,FR

41068-1362

$44.10

41078

CASE-ASSY-METER GEAR

41078-0054

$86.72

92022

WASHER,20X29X1.0

92022-1510

$4.39

92033

RING-SNAP,19MM

92033-1160

$4.35

92049

SEAL-OIL,DD20X35X7

92049-0052

$17.27

92049A

SEAL-OIL

92049-0717

$17.79

92087

BUSHING-METER GEAR

92087-0002

$21.16

92143

COLLAR,FR AXLE,L=24.5

92143-1847

$13.91

92152

COLLAR,FRONT BRAKE DRUM,L=51

92152-0119

$13.70

92210

NUT,CASTLE,10MM

92210-1093

Unavailable
