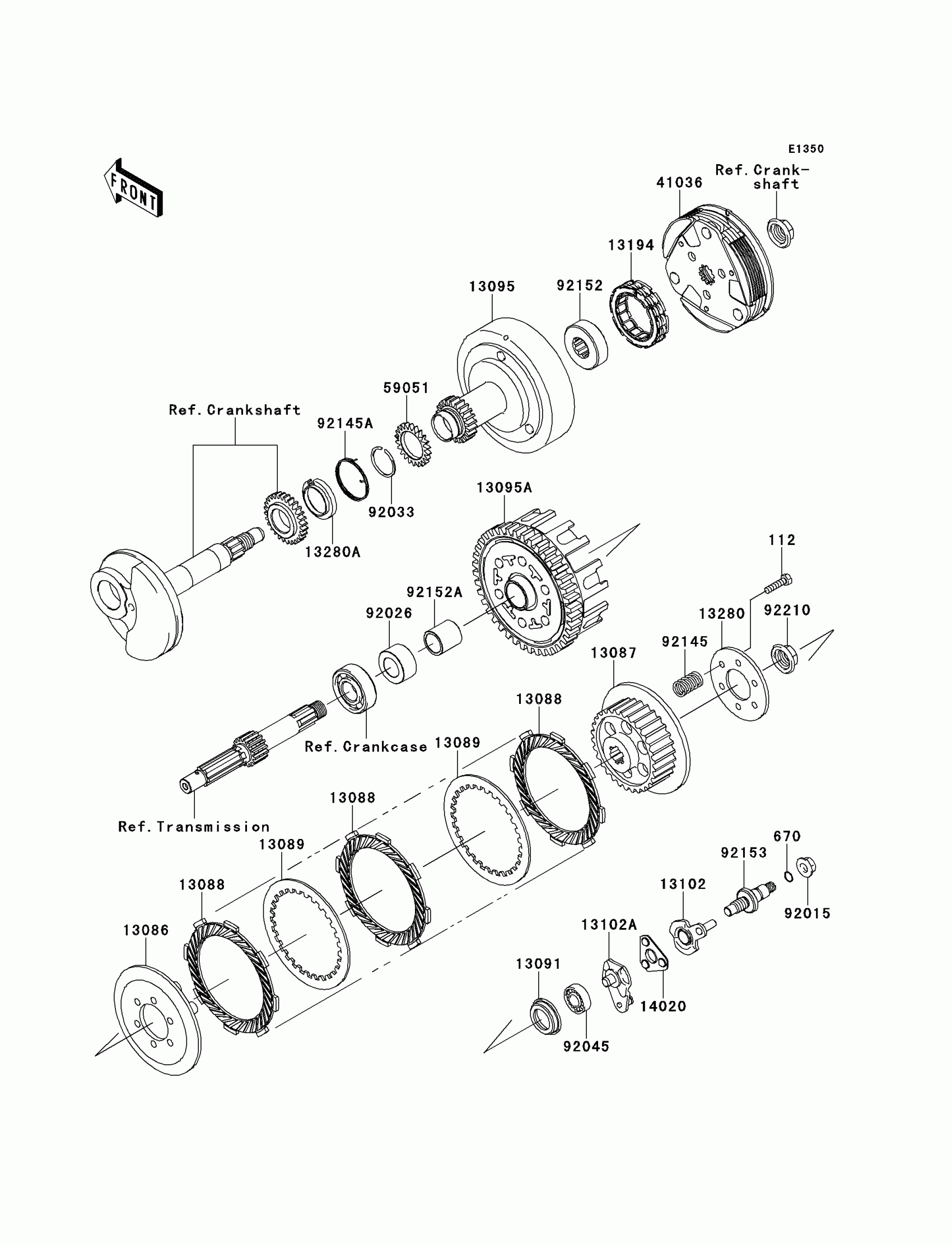

Kawasaki EDGE R Clutch Diagram
#
Description
Price
112
BOLT-UPSET,5X20
112BA0520
$5.52
670
O RING,8MM
670B1508
$1.29
13086
WHEEL-CLUTCH
13086-1065
$29.44
13087
HUB-CLUTCH
13087-1151
$40.67
13088
PLATE-FRICTION
13088-1142
$12.53
13089
PLATE-CLUTCH
13089-1087
$12.80
13091
HOLDER
13091-1787
$12.92
13095
HOUSING-COMP-CLUTCH
13095-0128
$99.35
13095A
HOUSING-COMP-CLUTCH
13095-1403
$95.50
13102
RELEASE-COMP-CLUTCH
13102-1135
$55.00
13102A
RELEASE-COMP-CLUTCH
13102-1136
$55.00
13194
CLUTCH-ONEWAY
13194-1103
Unavailable
13280
HOLDER,CLUTCH
13280-0370
$17.46
13280A
HOLDER,CLUTCH
13280-1250
$0.86
14020
RETAINER
14020-0576
$17.63
41036
HUB-ASSY,CLUTCH
41036-0261
$117.33
59051
GEAR-SPUR,CLUTCH,22T
59051-1403
$5.98
92015
NUT,8MM
92015-1143
$0.65
92026
SPACER
92026-1605
$4.20
92033
RING-SNAP,23.5MM
92033-1065
$4.26
92045
BEARING-BALL,#628
92045-1123
$23.34
92145
SPRING,CLUTCH HUB
92145-1456
$1.52
92145A
SPRING,CLUTCH HOLDER
92145-1457
$0.98
92152
COLLAR
92152-0833
$11.44
92152A
COLLAR,17X22X22.7
92152-1530
$16.97
92153
BOLT,CLUTCH RELEASE
92153-0525
$10.30
92210
NUT,14MM
92210-1374
$9.71
