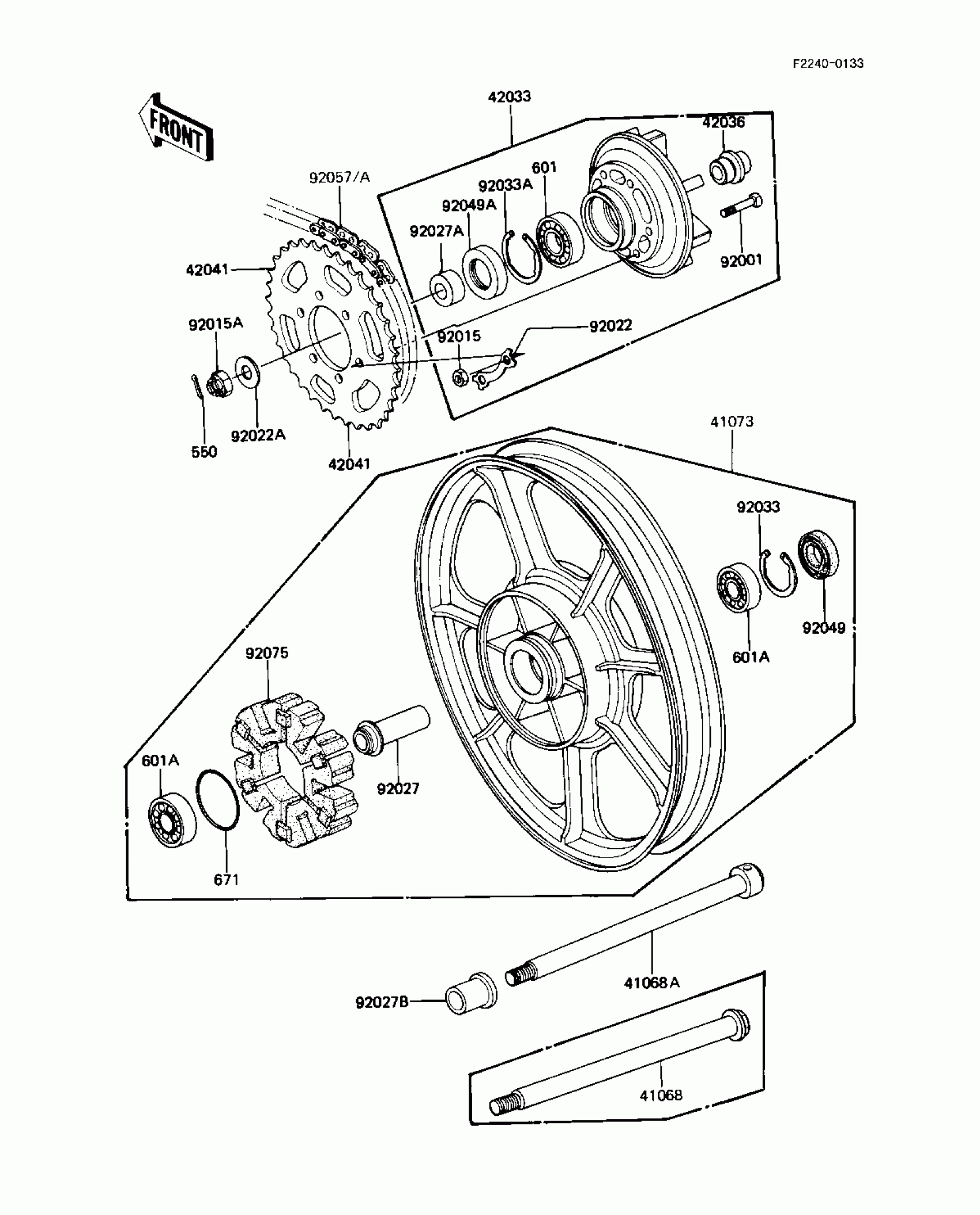

Kawasaki Eddie Lawson Replica REAR WHEEL/HUB/CHAIN Diagram

Description

Price

41068A

AXLE,RR,L=300

41068-1087

$110.42

41073

WHEEL ASSY,RR,SOLID,G

41073-1141-F6

$1,168.67

42033

COUPLING-ASSY,F.BLACK

42033-1048

$247.68

42036

SLEEVE,L=33

42036-1039

Unavailable

42041

SPROCKET-HUB,41T,BLAC

42041-1098

$109.99

92001

BOLT,10X41

92001-161

$5.38

92015

NUT,10MM

42045-005

$7.98

92015A

NUT,CASTLE,18MM

42045-018

$9.23

92022

WASHER,LOCK

92022-1212

$6.45

92022A

WASHER,20.3X34X4.5

92022-248

$11.60

92027

COLLAR,L=89.5

92027-1286

$38.74

92027A

COLLAR,20X40X16.5

92027-1287

$35.25

92027B

COLLAR,L=31

92027-1288

$37.87

92033

RING-SNAP,52MM

92033-1043

$8.05

92033A

RING-SNAP,62MM

92033-1044

$11.29

92049

SEAL-OIL,28X52X5

92049-1061

$19.15

92049A

SEAL-OIL,AJN40627

92050-027

$20.96

92057A

DR CHAIN EK630 98L

92057-1152

$689.33

92075

DAMPER,RR HUB SHOCK,"1000"

42014-033

$111.86

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BALL BEARING,#6206

601B6206

$22.50

601A

UNAVAILABLE IN PRICE BOOK

601B6304Z2

Unavailable

671

O RING,65MM

671B2565

$8.86
