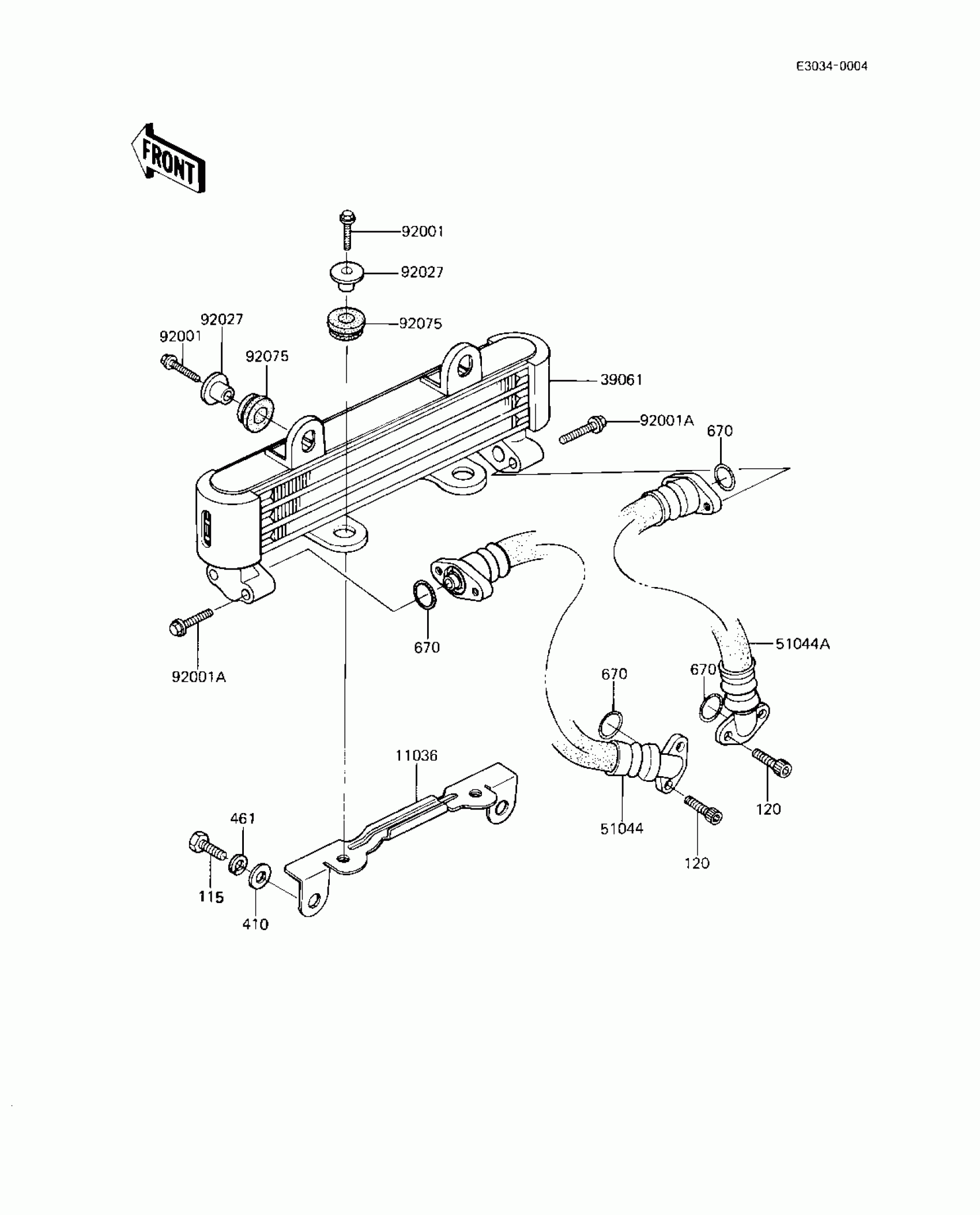

Kawasaki Eddie Lawson Replica OIL COOLER Diagram

Description

Price

11036

BRACKET-A,OIL COOLER

11036-1508

Unavailable

39061

EXCHANGER-ASSY-HEAT

39061-1006-10

$484.01

51044

TUBE-ASSY,OIL COOLER

51044-1030

Unavailable

51044A

TUBE-ASSY,OIL COOLER

51044-1031

Unavailable

92001

BOLT-FLANGED

130J0620

$0.43

92001A

BOLT,FLANGED,6X25,BLK

92001-1467

Unavailable

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92075

DAMPER

92075-277

$2.84

115

BOLT-SMALL,8X16,BLACK

115C0816

$3.03

120

BOLT-SOCKET,6X16

120S0616

$1.23

410

WASHER,PLAIN,8MM

92022-1554

$4.86

461

WASHER-SPRING,8MM,BLACK

461K0800

$2.33

670

O RING,14MM

670D2014

$5.52
