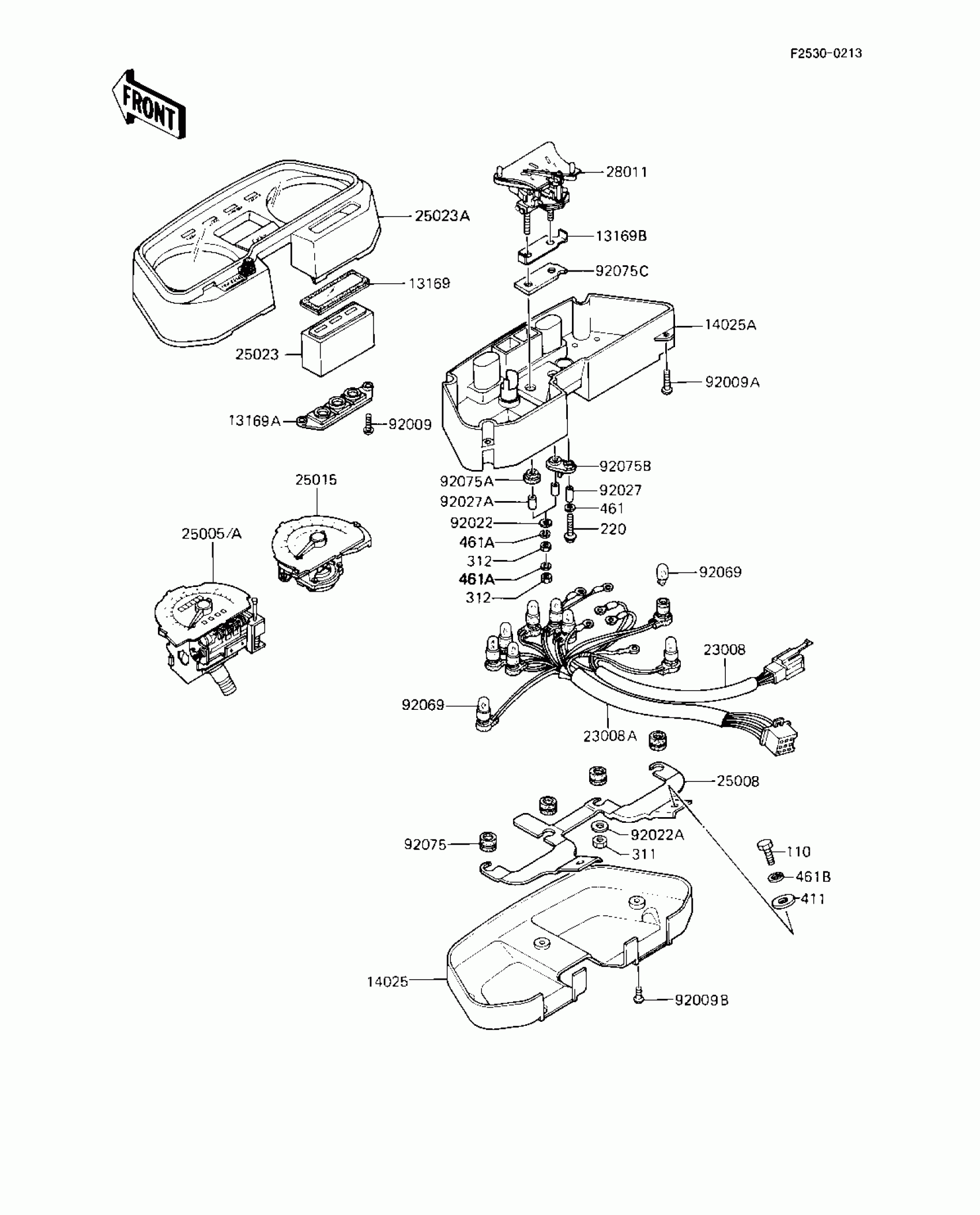

Kawasaki Eddie Lawson Replica METERS (KZ1000-R2) Diagram

#

Description
Price

13169

PLATE,PILOT BOX

13169-1508

Unavailable

13169A

PLATE,BULB SOCKET

13169-1556

Unavailable

13169B

PLATE,FUEL METER

13169-1593

Unavailable

14025

COVER,METER,LWR

14025-1473

Unavailable

14025A

COVER,METER UNIT

14025-1600

Unavailable

23008

SOCKET-ASSY,FUEL&OIL

23008-1178

$42.10

23008A

SOCKET-ASSY,METER

23008-1181

$90.27

25005

SPEEDOMETER,KPH (Canada)

25005-1180

Unavailable

25005A

SPEEDOMETER,MPH

25005-1221

$332.00

25008

BRACKET-METER

25008-1058

$82.70

25015

TACHOMETER,X1000RPM

25015-1141

$382.23

25023

COVER-METER CASE.PIL

25023-1051

$37.71

25023A

COVER-METER CASE,UPP

25023-1056

Unavailable

28011

METER,FUEL

28011-1032

$67.50

92009

SCREW,TAPPING,4X14,YELLOW

92009-1140

$4.60

92009A

SCREW,TAPPING,4X20

92009-1141

$3.51

92009B

SCREW,TAPPING,4X12,BLACK

92009-1142

$4.13

92022

WASHER,4.5X10X0.8

92022-1394

$3.92

92022A

WASHER,5.2X16X1.2

92022-263

$1.66

92027

COLLAR,5.5X11

92027-1563

$3.26

92027A

COLLAR,6X8.5

92027-1564

$4.37

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92075

DAMPER,METER BRACKET

92075-1385

$5.11

92075A

DAMPER,FUEL METER

92075-1453

$3.83

92075B

DAMPER,FUEL METER

92075-1454

$3.84

92075C

DAMPER,FUEL METER

92075-1455

$5.06

110

BOLT-UPSET 6X14

112B0614

Unavailable

220

SCREW-PAN-CROS

220B0316

$0.53

311

NUT-HEX

311B0500

$0.47

312

NUT-HEX

312B0400

$0.53

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 3MM

461F0300

$0.46

461A

WASHER SPRING 4MM

461F0400

Unavailable

461B

WASHER SPRING 6MM

461F0600

$0.69
