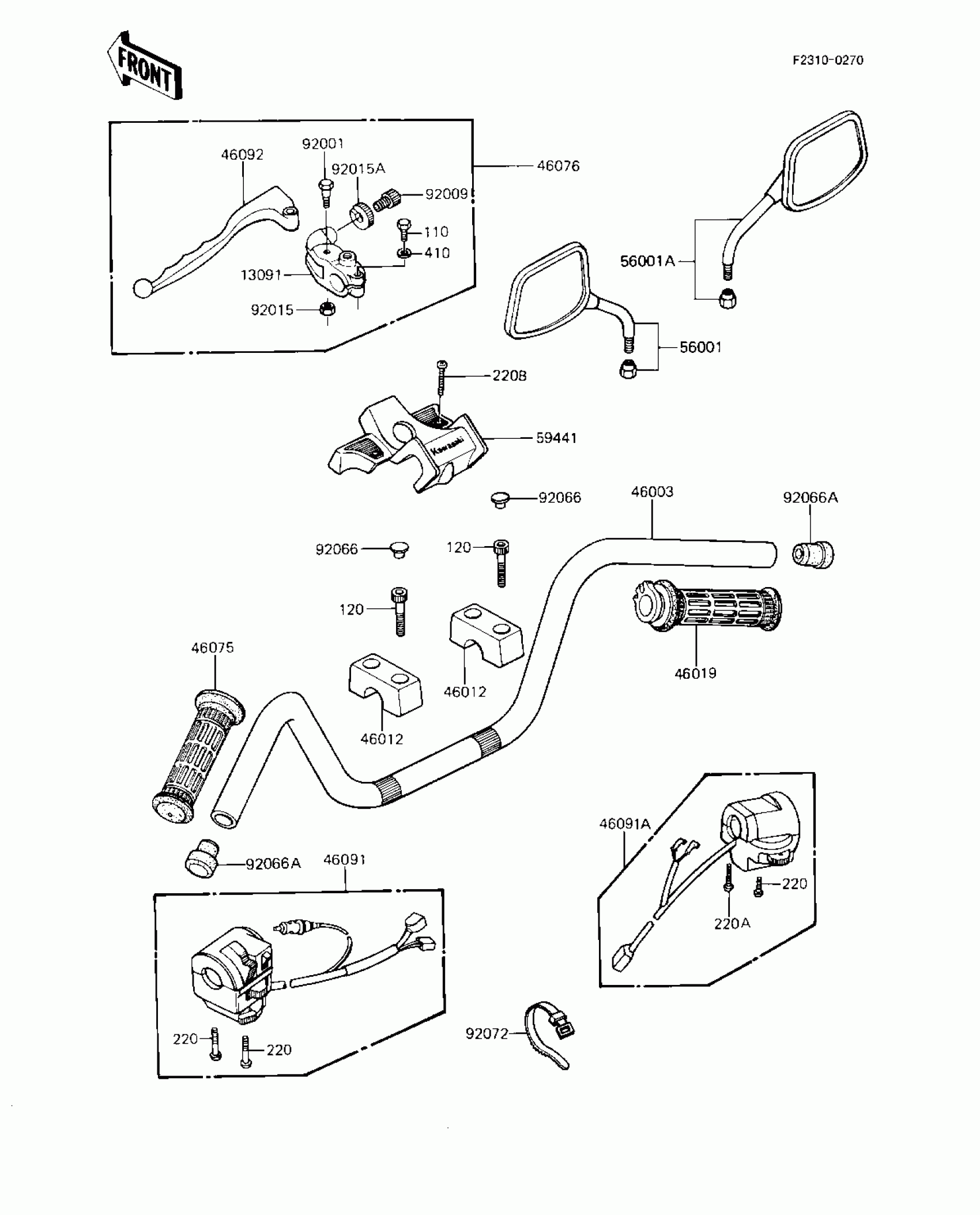

Kawasaki Eddie Lawson Replica HANDLEBAR (KZ1000-R2) Diagram

Description

Price

13091

HOLDER,CLUTCH LEVER,F.BLACK

13091-1046

$50.69

46003

HANDLEBAR

46003-1107

Unavailable

46012

HOLDER-HANDLE

46012-1027

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-1021

Unavailable

46075

GRIP,LH

46075-1028

$17.48

46076

LEVER-ASSY-GRIP,CLUTC

46076-1026

Unavailable

46091

HOUSING-ASSY-CNTRL,LH

46091-1180

Unavailable

46091A

HOUSING-ASSY-CONTROL,

46091-1238

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1024

Unavailable

56001

MIRROR-ASSY,LH

56001-1352

Unavailable

56001A

MIRROR-ASSY,RH

56001-1353

Unavailable

59441

COVER-HANDLE

59441-1011

$34.55

92001

BOLT,CLUTCH LEVER,BLACK

92001-1548

$8.47

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$15.16

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$9.91

92066

PLUG

92066-1216

$4.65

92066A

PLUG,HANDLE END

92066-1113

Unavailable

92072

BAND,L=123

92072-030

$5.00

110

BOLT,6X22,BLACK

110C0622

$4.37

120

BOLT-SOCKET,8X30

120S0830

$4.37

220

SCREW-PAN-CROS

220B0535

$3.70

220A

SCREW-PAN-CROS

220B0540

$3.41

220B

SCREW-PAN-CROS,4X16

220C0416

$1.69

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

$0.72
