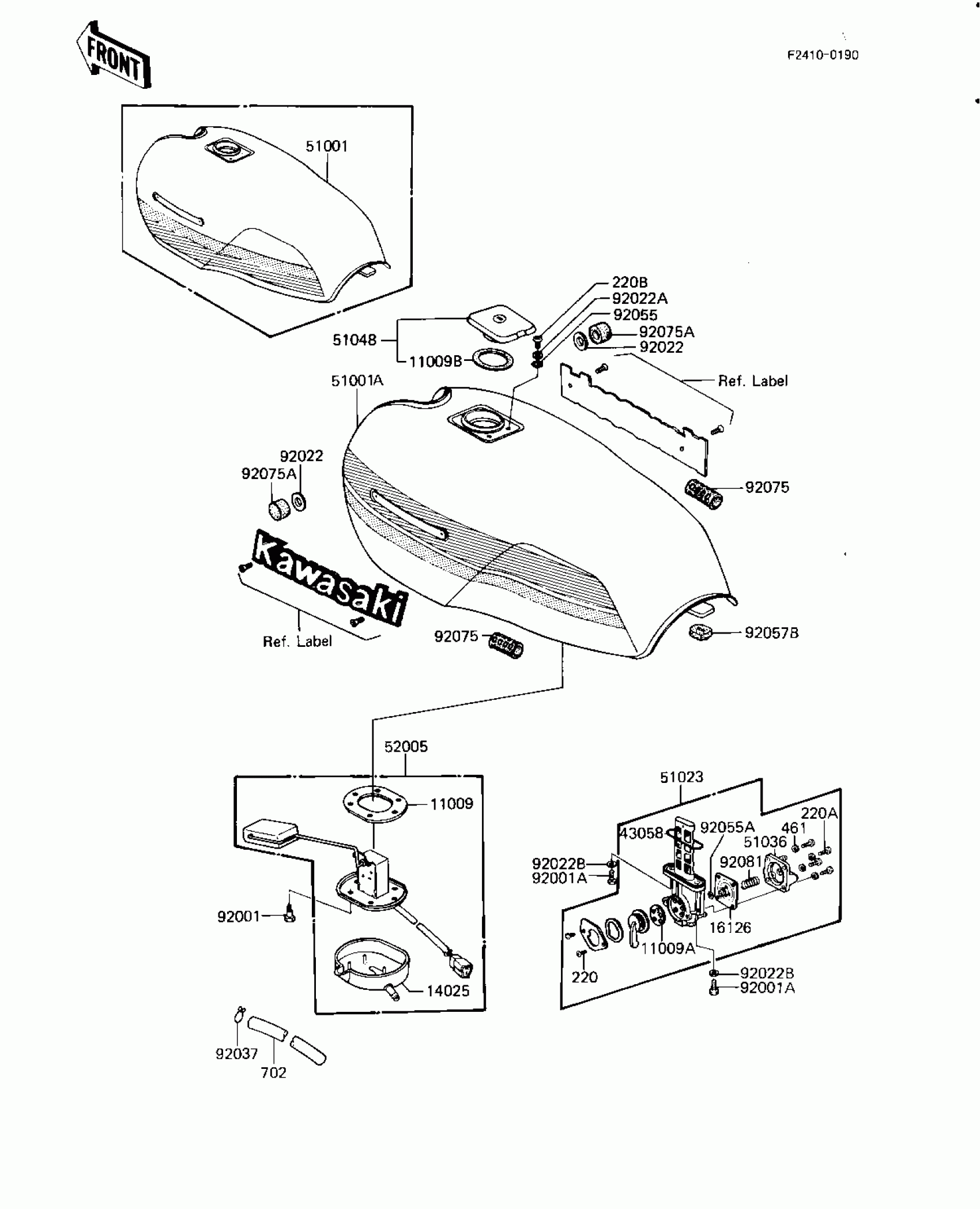

Kawasaki Eddie Lawson Replica FUEL TANK Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1037

Unavailable

11009A

GASKET,FUEL TAP

11009-1044

$14.56

11009B

GASKET,FUEL TANK CAP

11009-1051

$8.34

14025

COVER,FUEL GAUGE

14024-1434

$36.06

16126

VALVE,DIAPHRAM

16126-1038

Unavailable

43058

"0" RING

43058-1001

Unavailable

51001A

TANK-COMP-FUEL,LGREEN

51001-5295-7F

Unavailable

51023

TAP-ASSY,FUEL

51023-1174

Unavailable

51036

COVER ASSY,FUEL TAP

51036-1001

Unavailable

51048

CAP-ASSY-TANK,FUEL

51048-1015

$162.26

52005

GAUGE,FUEL

52005-1026

Unavailable

92001

BOLT,FUEL GAUGE

92001-1069

$5.53

92001A

BOLT,6X20

92001-1091

$2.99

92022

WASHER,10.5X26X2.3

92022-044

$2.99

92022A

WASHER,5.3X10X0.8

92022-1038

$2.76

92022B

WASHER-PLAIN

92022-183

$2.99

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O

92055-1023

$2.99

92055A

"0" RING,DIAPHRAGM

92055-1068

Unavailable

92075

DAMPER,FUEL TANK

92075-084

$7.65

92075A

DAMPER,FUEL TANK

92075-125

$4.67

92075B

DAMPER,FUEL TANK

92075-295

$7.30

92081

SPRING,DIAPHRAGM

92081-1054

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW-PAN-CRSOSS,4X1

220B0412

$0.25

220B

SCREW PAN HEAD 5X10

220B0510

Unavailable

461

WASHER SPRING 4MM

461F0400

Unavailable

702

TUBE-BREATHER (BULK)

702A071000

$10.11
