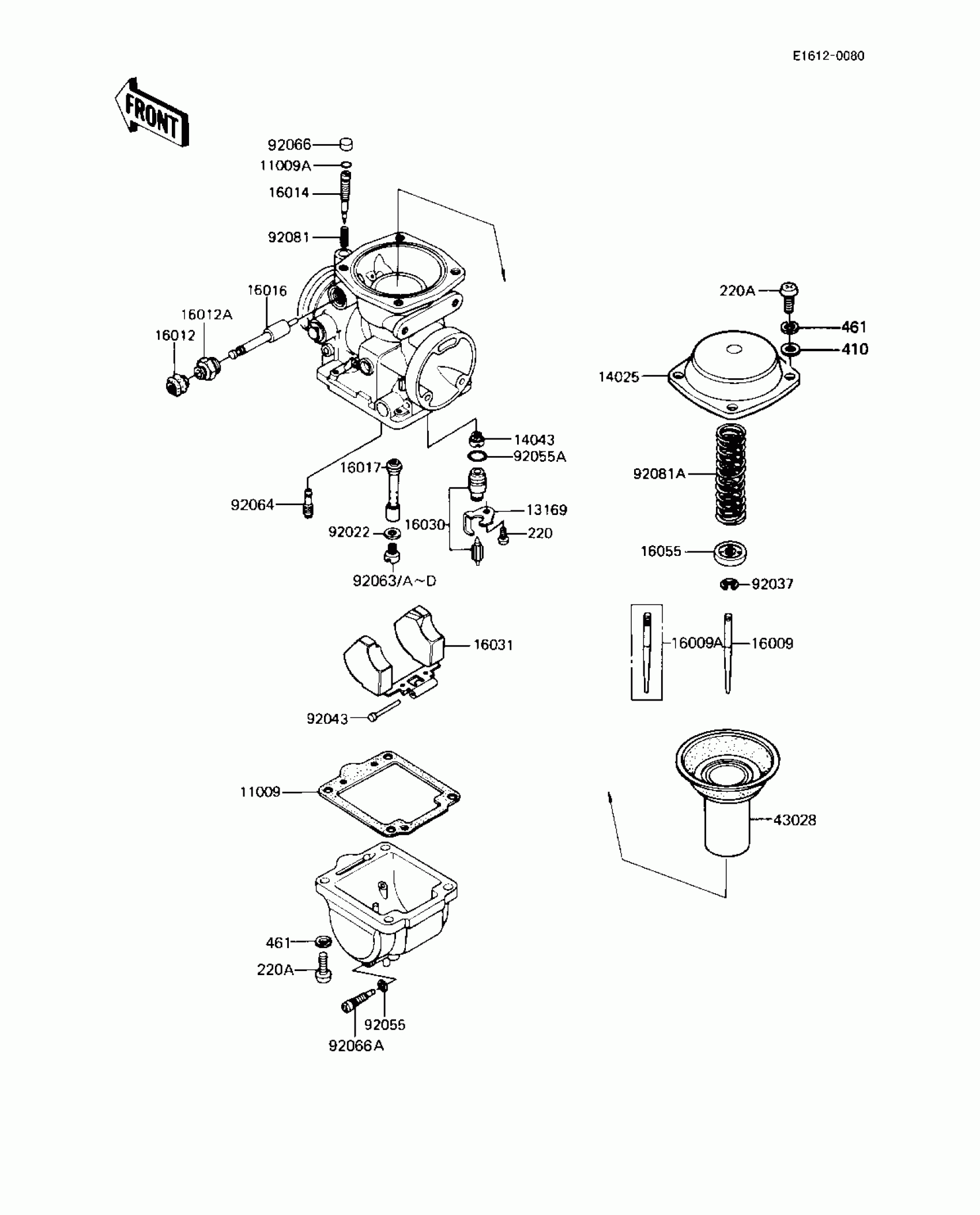

Kawasaki Eddie Lawson Replica CARBURETOR PARTS (KZ1000-R2) Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1241

Unavailable

11009A

GASKET,"O"RING

16038-022

$5.61

13169

PLATE,FLOAT VALVE

13169-1482

$7.14

14025

COVER,MIXING CHAMBER

14025-1603

Unavailable

14043

FILTER,FLOAT VALVE

14043-1010

$14.68

16009

NEEDLE-JET-5C50

16009-1100

Unavailable

16009A

NEEDLE-JET,5C48 (Canada)

16009-1101

Unavailable

16012

CAP-STARTER PLUNGER,RUBBER

16012-1010

$20.67

16012A

CAP-STARTER PLUNGER

16012-1011

$15.61

16014

SCREW-PILOT AIR

16014-1014

$25.85

16016

PLUNGER

16016-1019

$42.21

16017

JET-NEEDLE,Y-4

16017-1136

Unavailable

16030

VALVE-FLOAT,2.5

16030-1016

$60.01

16031

FLOAT

16031-1013

$66.11

16055

PLATE,NEEDLE

16055-010

$11.83

43028

DIAPHRAGM,VALVE

43028-1034

Unavailable

92022

WASHER,MAIN JET

16034-001

$3.43

92037

CLAMP,E-TYPE

16008-014

$9.34

92043

PIN,FLOAT

16032-008

$5.95

92055

RING-O

92055-044

$7.90

92055A

RING-O

92055-1105

$3.96

92063

RT- RED 7 1/2

1100

$102.92

92063A

JET-MAIN,#A122.5

92063-1101

$13.73

92063B

JET-MAIN,#A125

92063-1102

$13.73

92063C

JET-MAIN,#A130

92063-1103

$13.73

92063D

JET-MAIN,#A132.5

92063-1104

$13.73

92064

JET-PILOT,#A37.5

92064-1036

$18.64

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92066A

PLUG,DRAIN

92066-1064

$9.41

92081

SPRING,PILOT SCREW

16022-016

$6.94

92081A

SPRING,DIAPHRAGM VALVE

92081-1363

$24.56

220

SCREW PAN HEAD 4X6

220B0406

$1.25

220A

SCREW-PAN-CROS,5X16,BLACK

220C0516

Unavailable

410

WASHER PLAIN

410F0500

$1.24

461

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable
