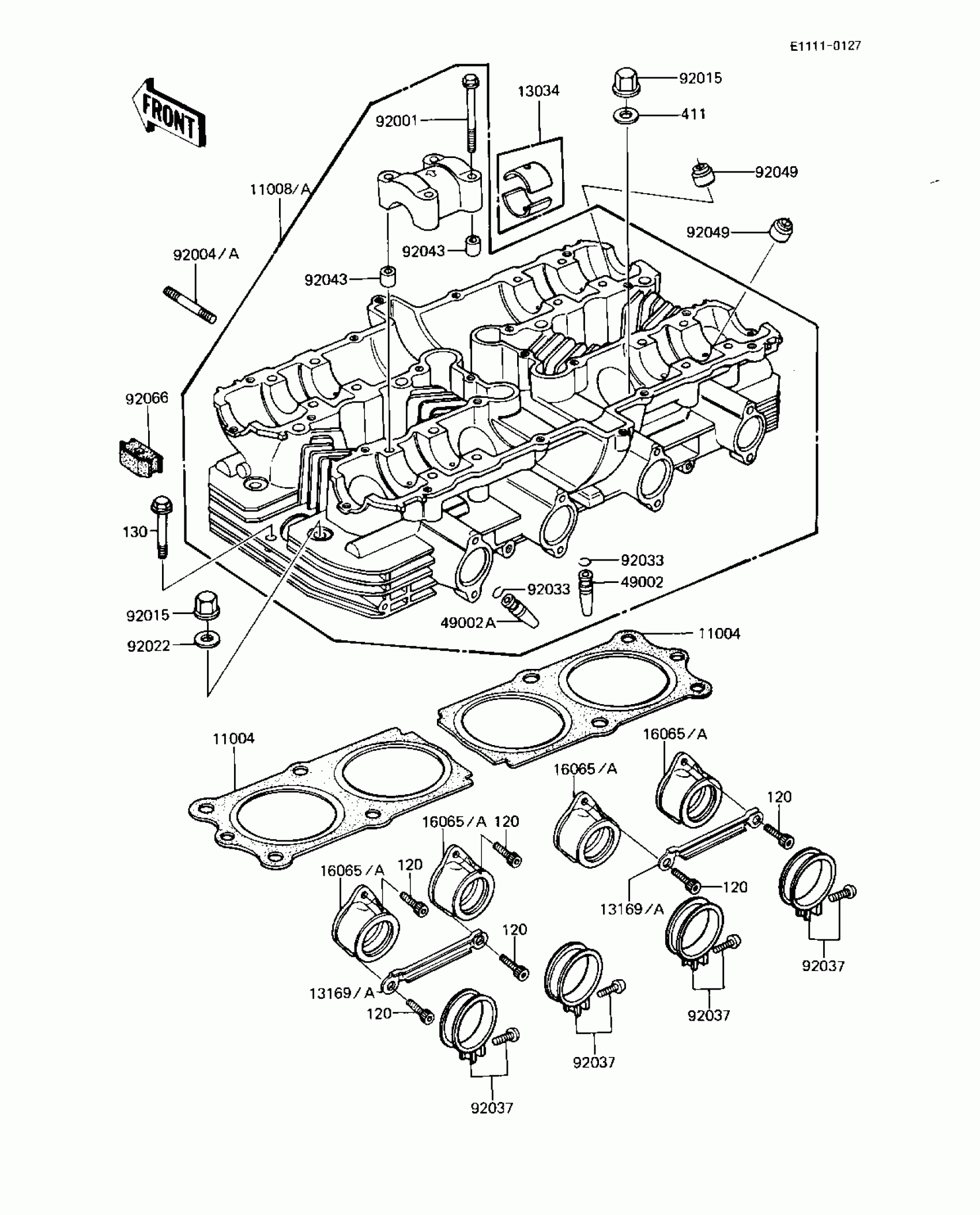

Kawasaki Eddie Lawson Replica CYLINDER HEAD Diagram

Description

Price

11004

GASKET-HEAD

11004-1222

$106.79

11008A

HEAD-COMP-CYLINDER,BL

11008-1066

Unavailable

13034

BUSHING,CAMSHAFT

13034-030

$22.16

13169A

PLATE,TUBE GUIDE

13169-1793

Unavailable

16065A

HOLDER-CARBERTOR

16065-1131

$75.75

49002

GUIDE-VALVE,INTAKE

12013-009

$27.29

49002A

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

92001

BOLT,6X43

92002-1881

$7.24

92004A

STUD,8X30,BLACK

92004-1101

Unavailable

92015

NUT,FLANGED CAP,10MM

92015-1181

Unavailable

92022

WASHER,10.5X22X1.6

92022-1005

$5.01

92033

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92037

CLAMP,ID=53,BLACK

92037-1304

$10.28

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92049

SEAL-OIL,RV37129.5

92049-016

$18.35

92066

PLUG,CYLINDER HEAD CO

92066-1104

$41.25

120

BOLT-SOCKET,6X16

120S0616

$1.23

130

BOLT-FLANGED,6X45,BLA

130S0645

$3.00

411

WASHER-PLAIN,10MM

411B1000

$0.93
