Description

Price

13081

CLUTCH-ASSY

13081-1057

Unavailable

13087

HUB-CLUTCH

13087-1015

$247.36

13088

PLATE-FRICTION

13088-1013

$15.76

13089

PLATE-CLUTCH,T=2.3

13089-1004

$13.16

13091

HOLDER,CLUTCH PUSH ROD

13091-1085

$9.80

13095

HOUSING-COMP-CLUTCH

13095-1037

$602.50

13102

RELEASE-COMP-CLUTCH

13102-1012

$67.54

13116

CAM-RELEASE,CLUTCH

13119-1003

$16.96

13119

CAM-RELEASE,CLUTCH

13119-1003

$16.96

13187

PLATE-CLUTCH OPERATING

13187-1006

$75.59

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92009

SCREW,8MM

92009-1009

$4.99

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X2.3

92022-1116

$8.58

92022A

WASHER,CLUTCH THRUST

92022-1221

$15.04

92022B

WASHER,25.3X36X2.5

92022-1223

$8.60

92027

COLLAR,25X57X16.1

92027-1284

$87.84

92045

BEARING,BALL,CLUTCH

92045-1001

$11.60

92045A

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92081

SPRING,CLUTCH RELEASE

92081-069

$7.51

92081A

SPRING,CLUTCH

92081-1033

$7.38

318

NUT-HEX-SMALL,8MM

318B0800

$0.59

550

PIN-COTTER,1.6X15

550D1615

$2.51

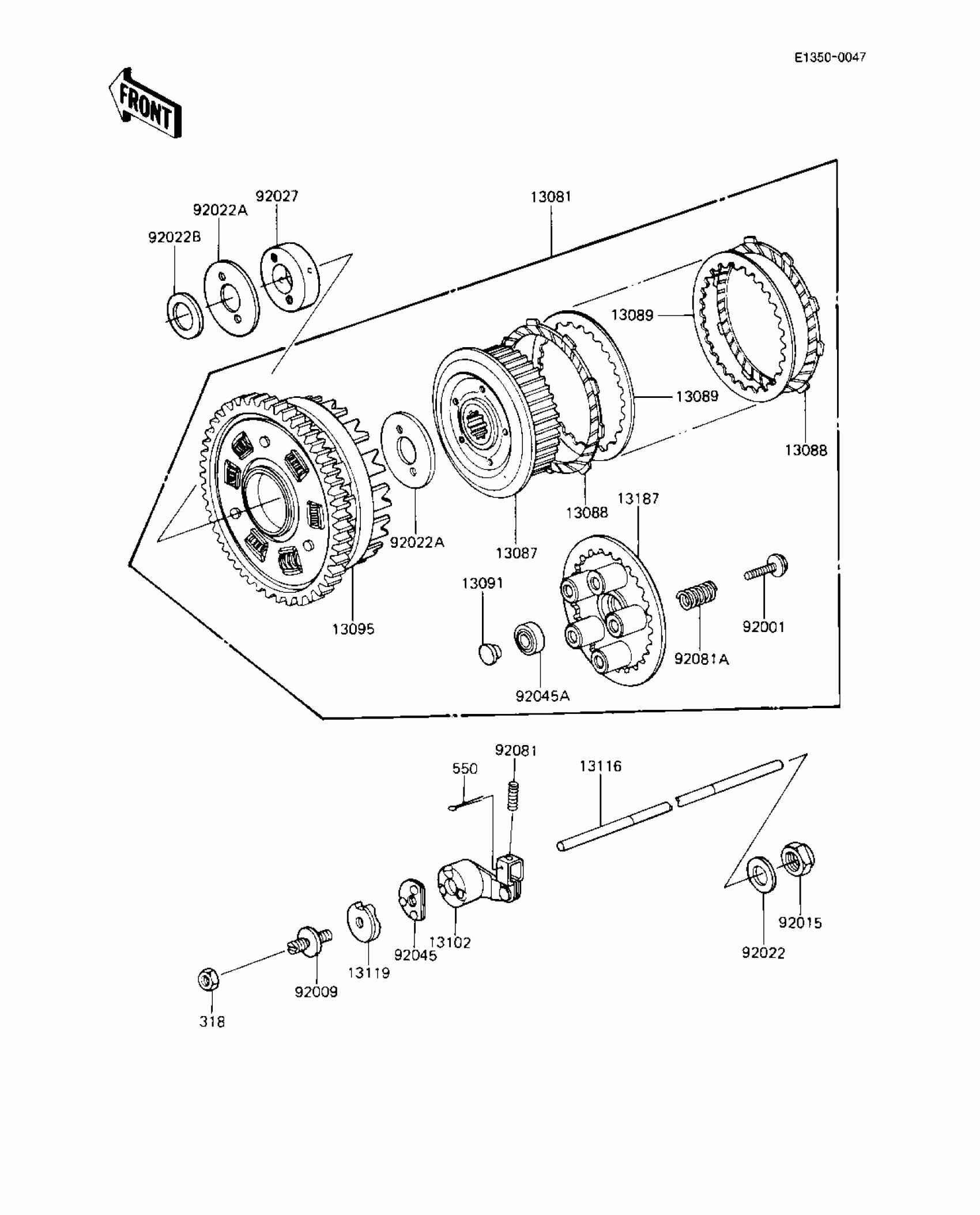

Kawasaki Eddie Lawson Replica CLUTCH Diagram

CLUTCH-ASSY

HUB-CLUTCH

PLATE-FRICTION

PLATE-CLUTCH,T=2.3

HOLDER,CLUTCH PUSH ROD

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

CAM-RELEASE,CLUTCH

CAM-RELEASE,CLUTCH

PLATE-CLUTCH OPERATING

BOLT,FLANGED,6X18

SCREW,8MM

NUT,20MM

WASHER,20.3X36X2.3

WASHER,CLUTCH THRUST

WASHER,25.3X36X2.5

COLLAR,25X57X16.1

BEARING,BALL,CLUTCH

BEARING-BALL,6001C3ML01

SPRING,CLUTCH RELEASE

SPRING,CLUTCH

NUT-HEX-SMALL,8MM

PIN-COTTER,1.6X15
